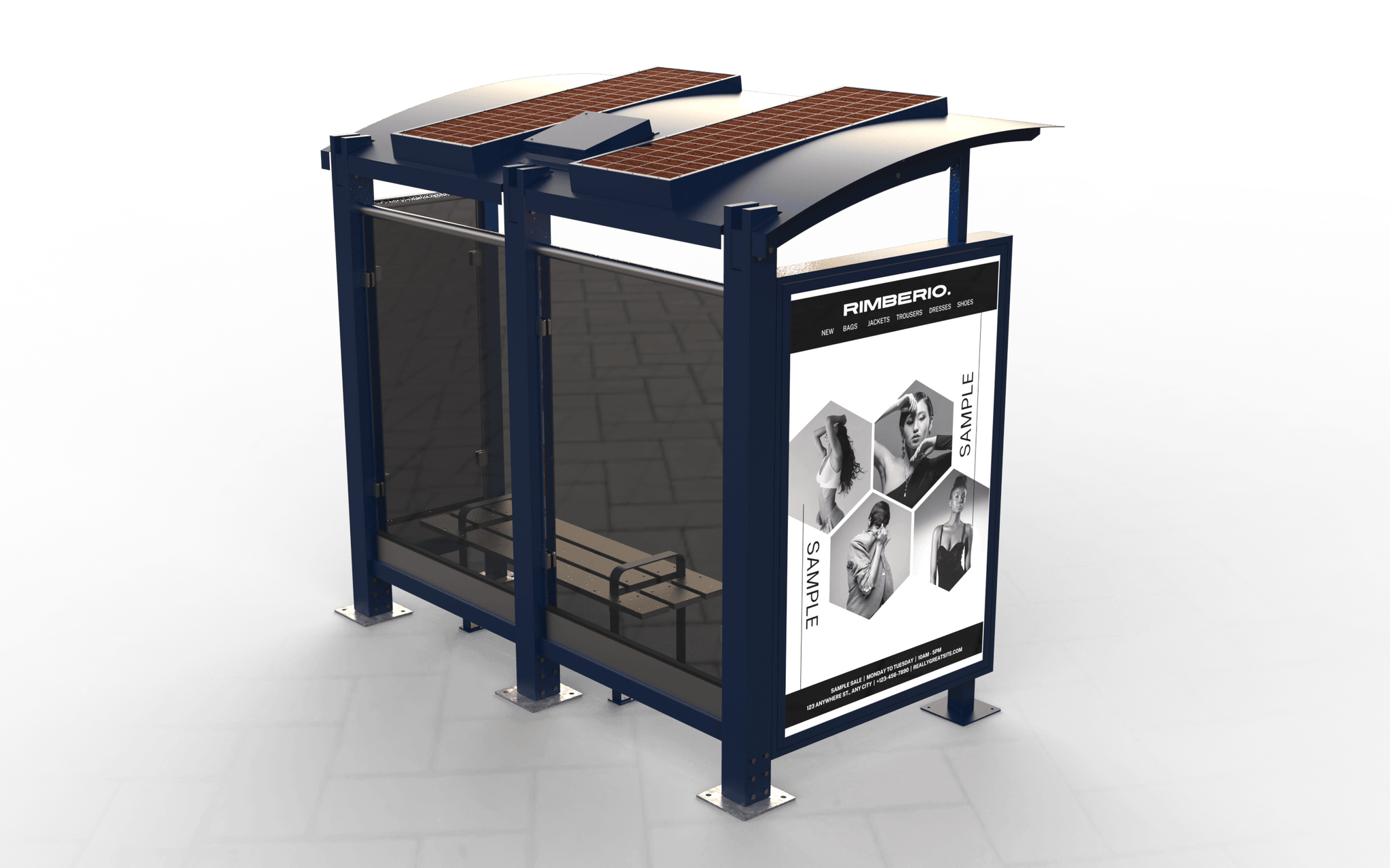

ViewLine™ Modular Solar Transit Shelter

The ViewLine™ Shelter by SELS Solar represents a new approach to public transportation infrastructure, combining contemporary architecture, renewable energy technology, and intelligent passenger amenities into a highly adaptable modular shelter system. Defined by its signature cantilever design and open visual profile, the ViewLine creates a welcoming, highly visible transit environment while maximizing passenger comfort, safety, and accessibility.

Designed for municipalities, universities, transportation agencies, and smart city applications, the ViewLine Shelter operates entirely off-grid through integrated solar generation and energy storage systems. Its modular architecture allows shelters to be expanded to virtually any length while maintaining a consistent architectural language and minimizing installation complexity.

The ViewLine's open structural design maximizes visibility for both passengers and transit operators while creating a spacious and inviting waiting environment. Integrated structural LED lighting provides efficient nighttime illumination, while the ADA-compliant passenger activation system incorporates audible and visual confirmation and activates a secondary driver notification lighting system to reduce accidental passenger pass-bys and improve accessibility.

Engineered for modern transit environments, the ViewLine Shelter integrates customizable seating, illuminated advertising displays, real-time transit information systems, and optional wireless connectivity into a unified architectural platform. Hidden battery management systems, anti-graffiti finishes, and vandal-resistant materials ensure long-term reliability while maintaining a refined and contemporary appearance.

Designed and manufactured in the United States, the ViewLine Shelter transforms traditional transit stops into intelligent public spaces that enhance the passenger experience while elevating the visual identity of urban infrastructure.

Product Specifications

Solar Generation

• 200W–800W monocrystalline solar panel systems

• Solar conversion efficiency up to 19.4%

• Grade-A photovoltaic modules

• Up to 25-year solar panel lifespan

• MPPT smart charging technology with up to 97% efficiency

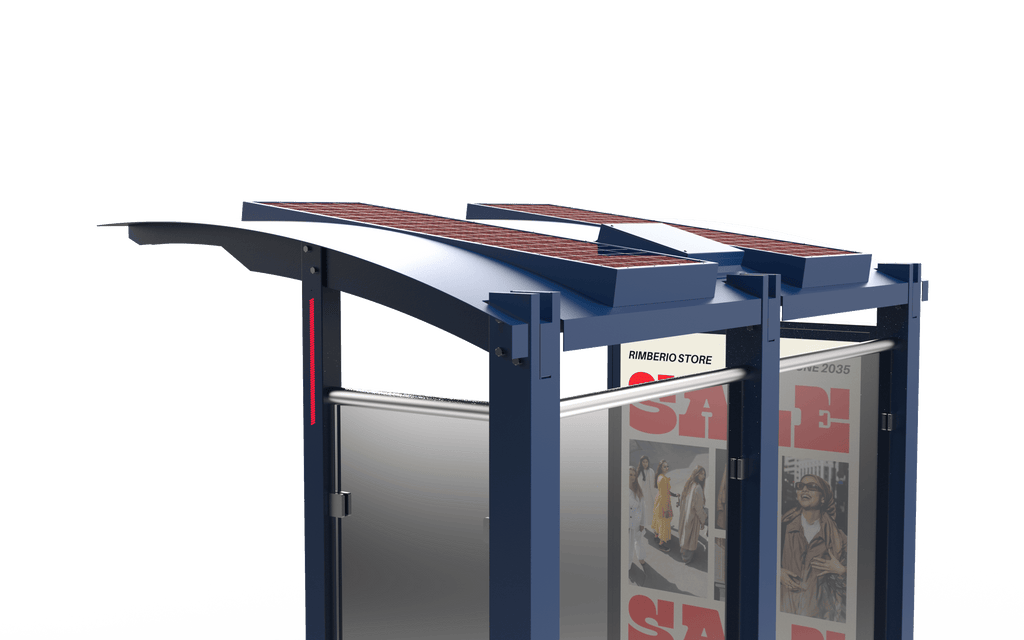

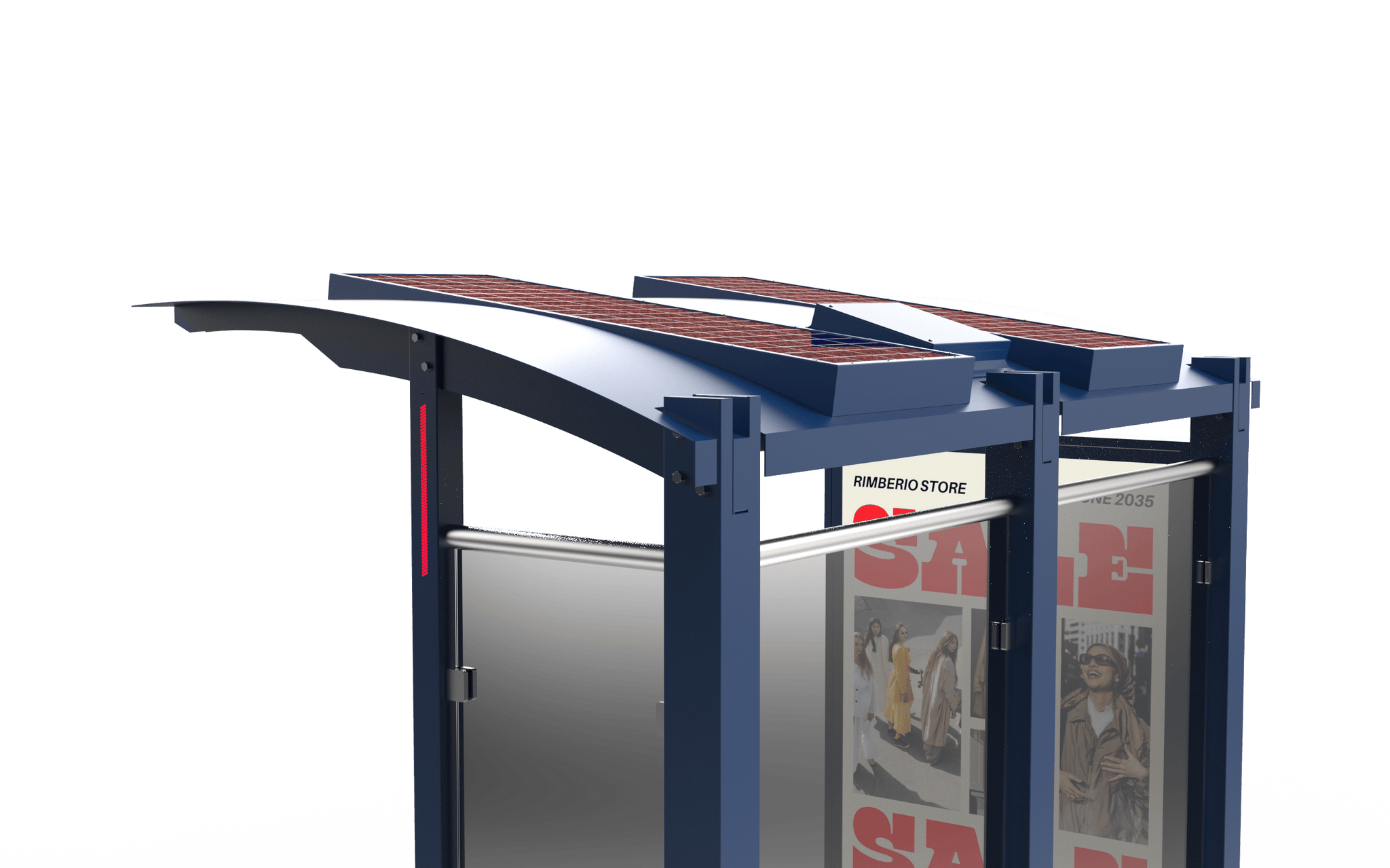

• Curved roof geometry enables improved solar collection throughout the day

Structure

• Architectural aluminum and 304 stainless steel construction

• Signature cantilever structural design

• Anti-graffiti powder-coated finish

• Concrete surface-mounted structural beams

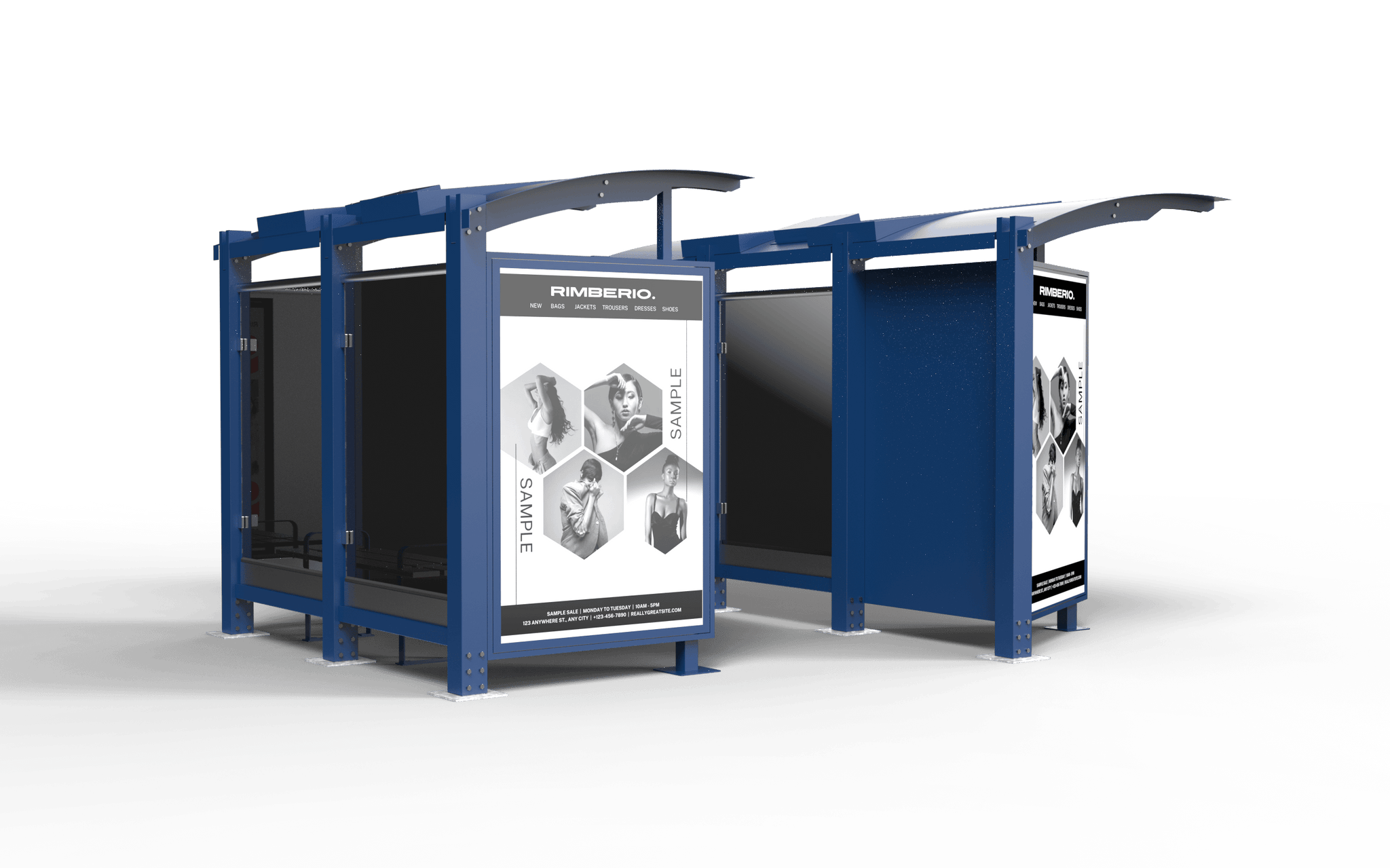

• Available tempered glass or perforated metal wall systems

• Fully modular and expandable architecture

Lighting System

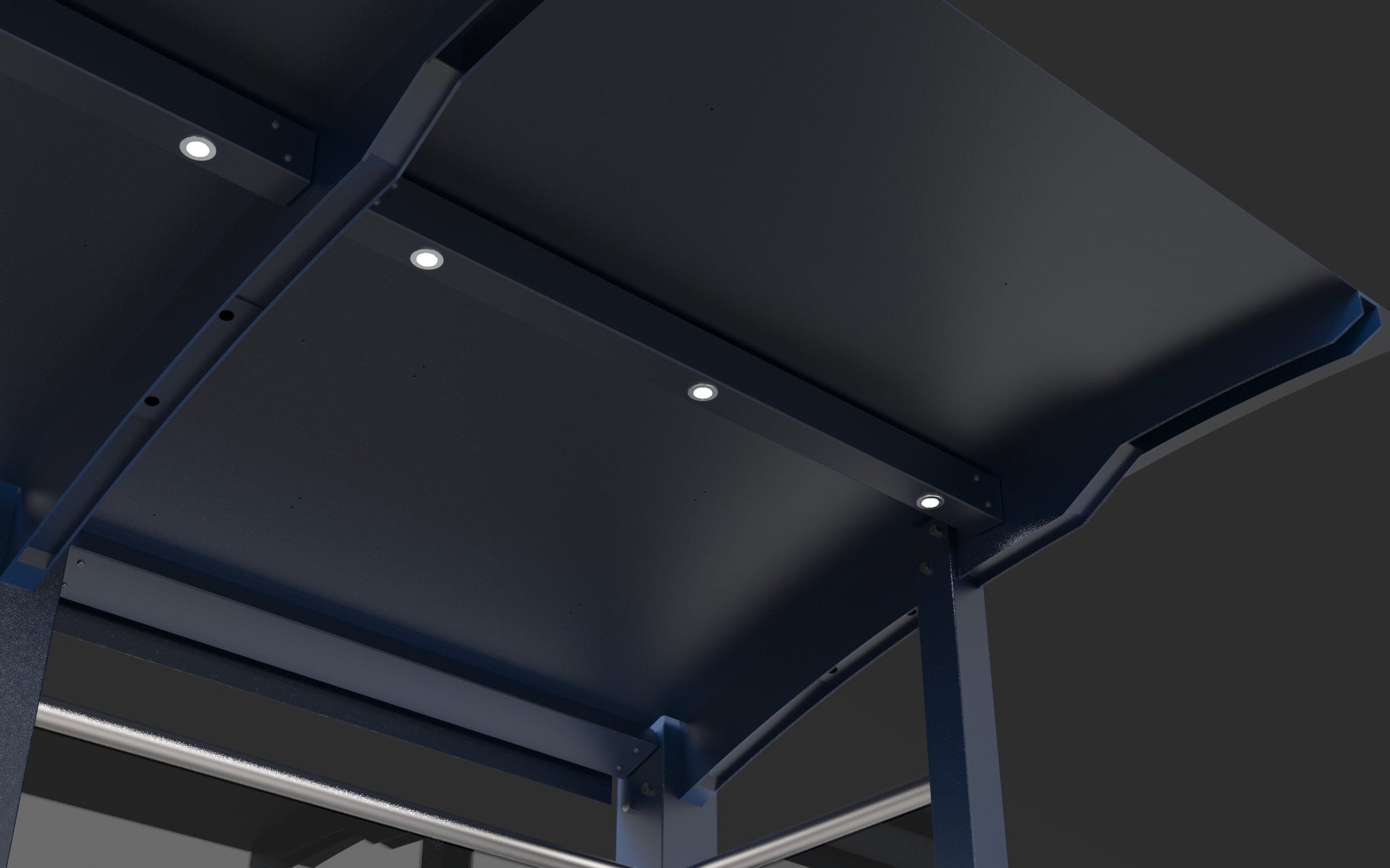

• Structurally integrated LED lighting

• Six anti-vandal integrated LED fixtures

• 600–4,500 lumen output options

• Up to 150 lumens per watt efficacy

• Color temperatures from 2200K–5000K

• Fully programmable dimming schedules

• Multiple lighting distributions available

• Automatic dusk-to-dawn operation

Energy Storage

• High-performance LiFePO₄ battery technology

• Integrated Battery Management System (BMS)

• Up to 1,536 Wh energy storage

• More than 2,500 charge cycles

• 8–10 year battery life expectancy

• Up to 5+ days autonomous operation

Passenger Safety Features

• ADA-compliant passenger activation button

• Audible and visual passenger confirmation

• Secondary bus driver notification lighting

• Enhanced nighttime passenger visibility

• Optional occupancy and human presence sensors

Passenger Amenities

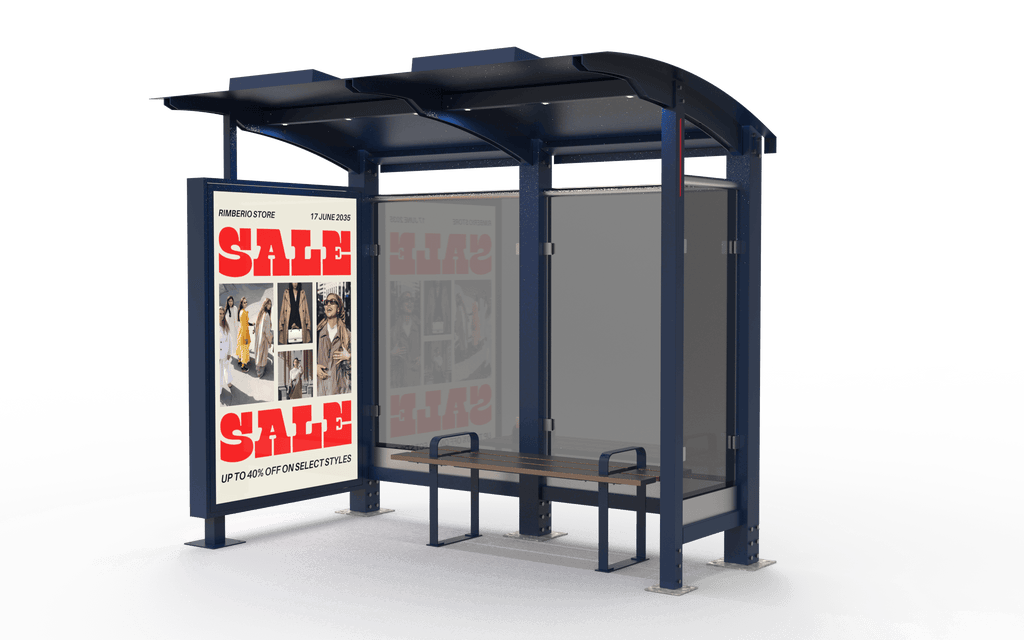

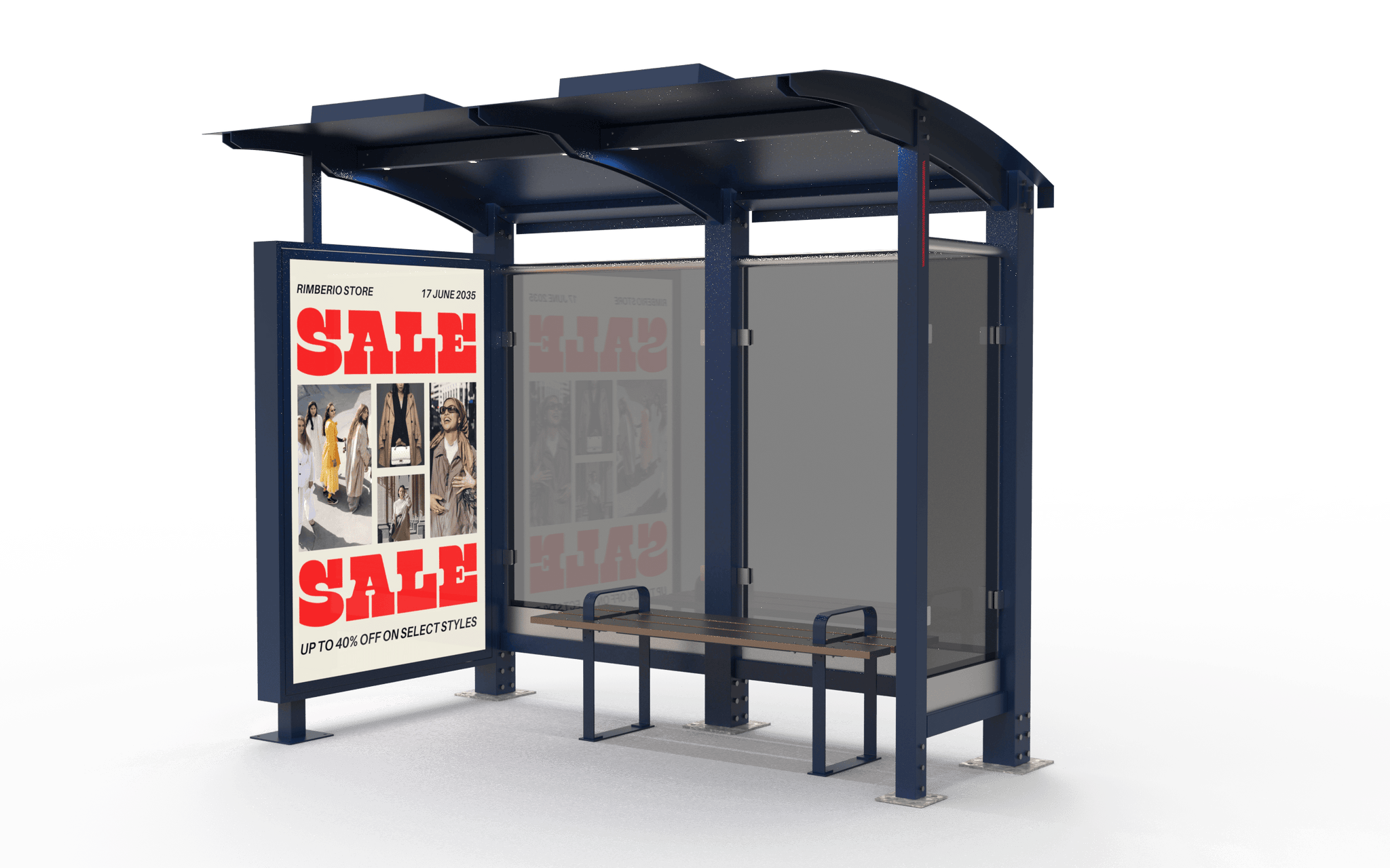

• Fully customizable bench seating

• WPC and steel seating options

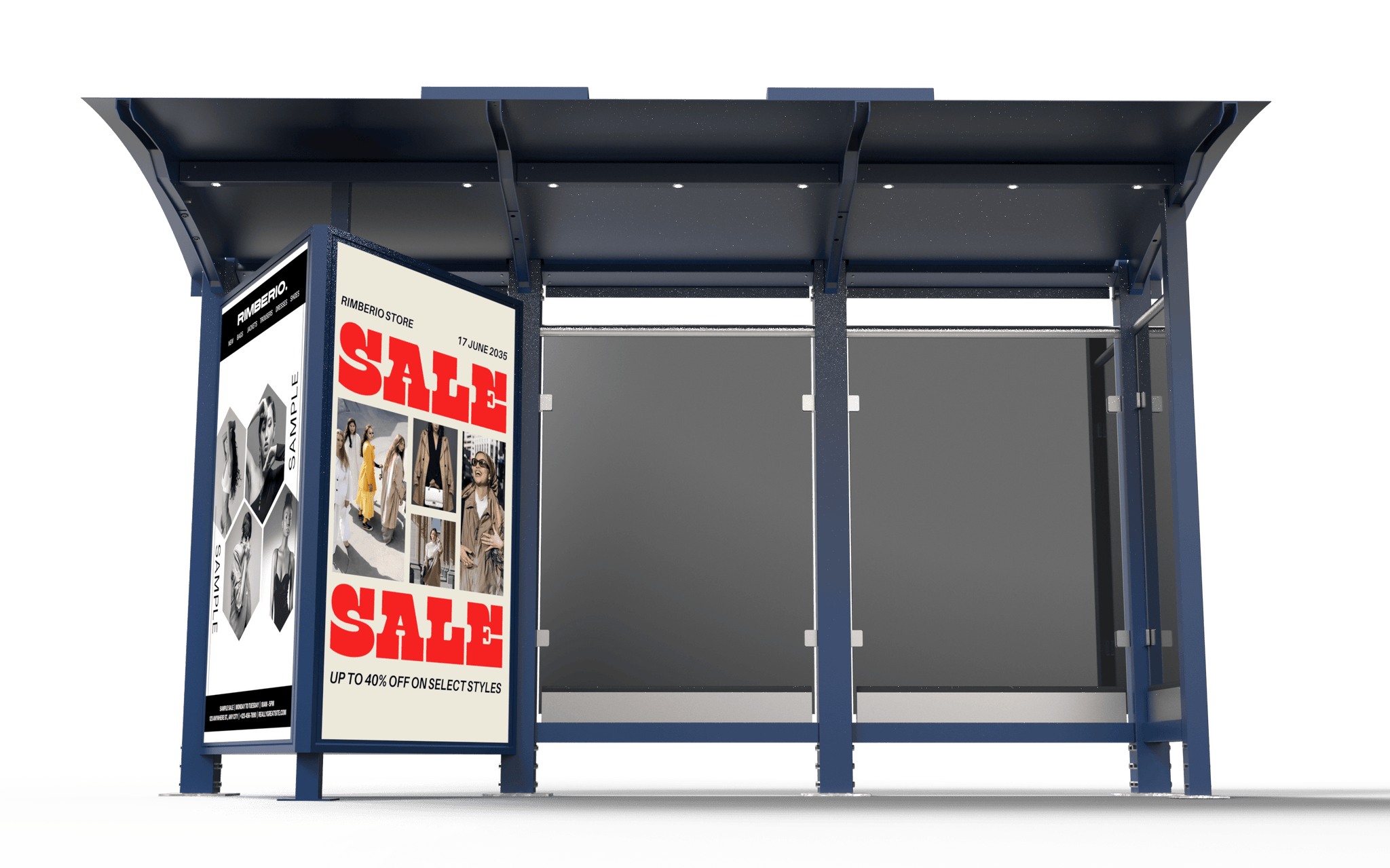

• Integrated double-sided advertisement displays

• Optional triangular and angled advertising systems

• Real-time transit information displays

• E-Ink smart transit display compatibility

• Optional Wi-Fi and passenger connectivity

Monitoring & Controls

• Bluetooth (BLE), LoRa, and IR communication protocols

• Web-based system monitoring

• Real-time power consumption tracking

• Remote diagnostics and programming

• Four customizable lighting profiles

• Programmable operating schedules

Environmental Performance

• IP66 weather-resistant electronic systems

• Operating temperatures from -10°C to 75°C

• Waterproof plug-and-play electrical connections

• Vandal-resistant construction

• Anti-graffiti protective coatings

Available Configurations

• 4'-8" × 9' Shelter

• 4'-8" × 13' Shelter

• 4'-8" × 17' Shelter

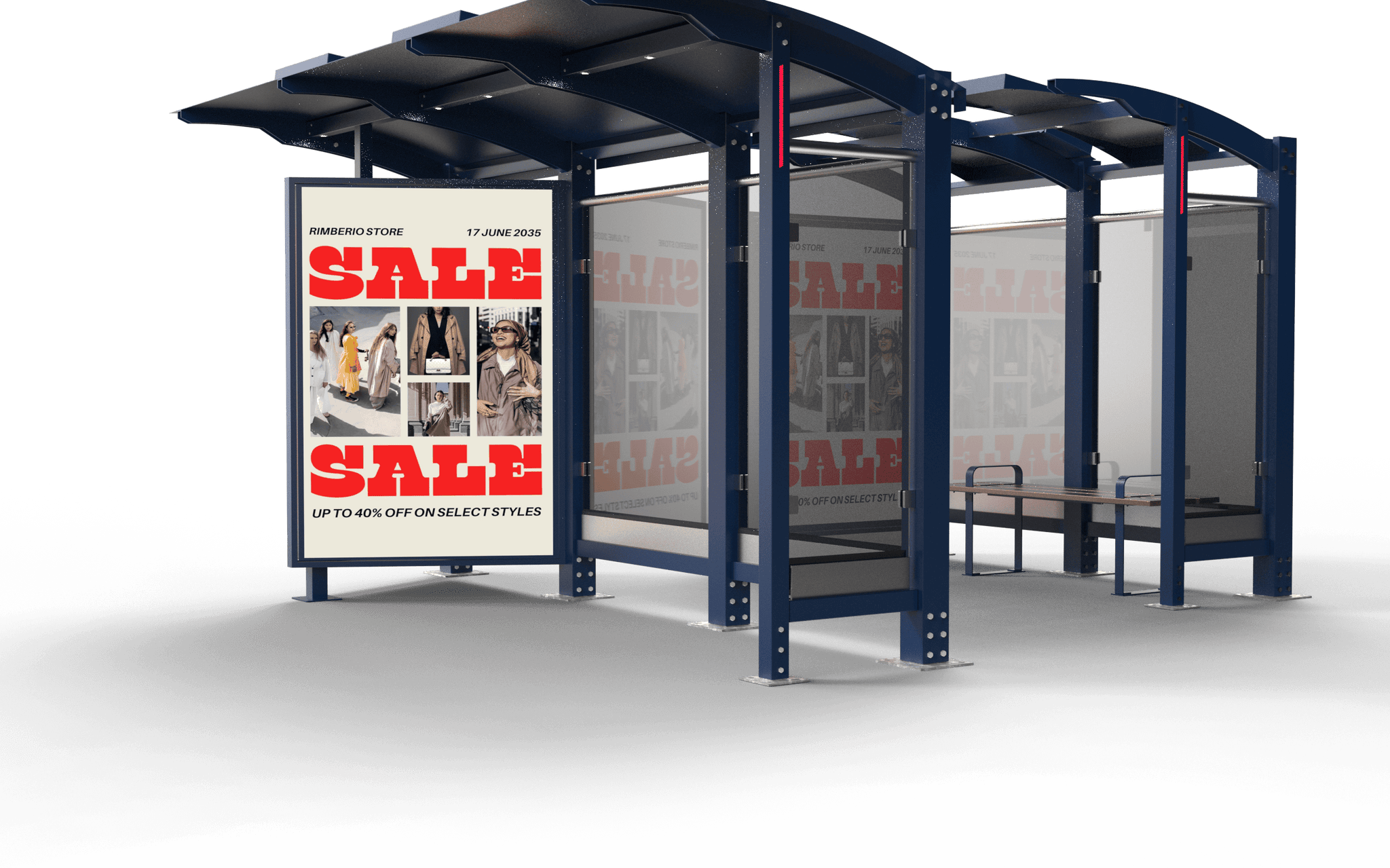

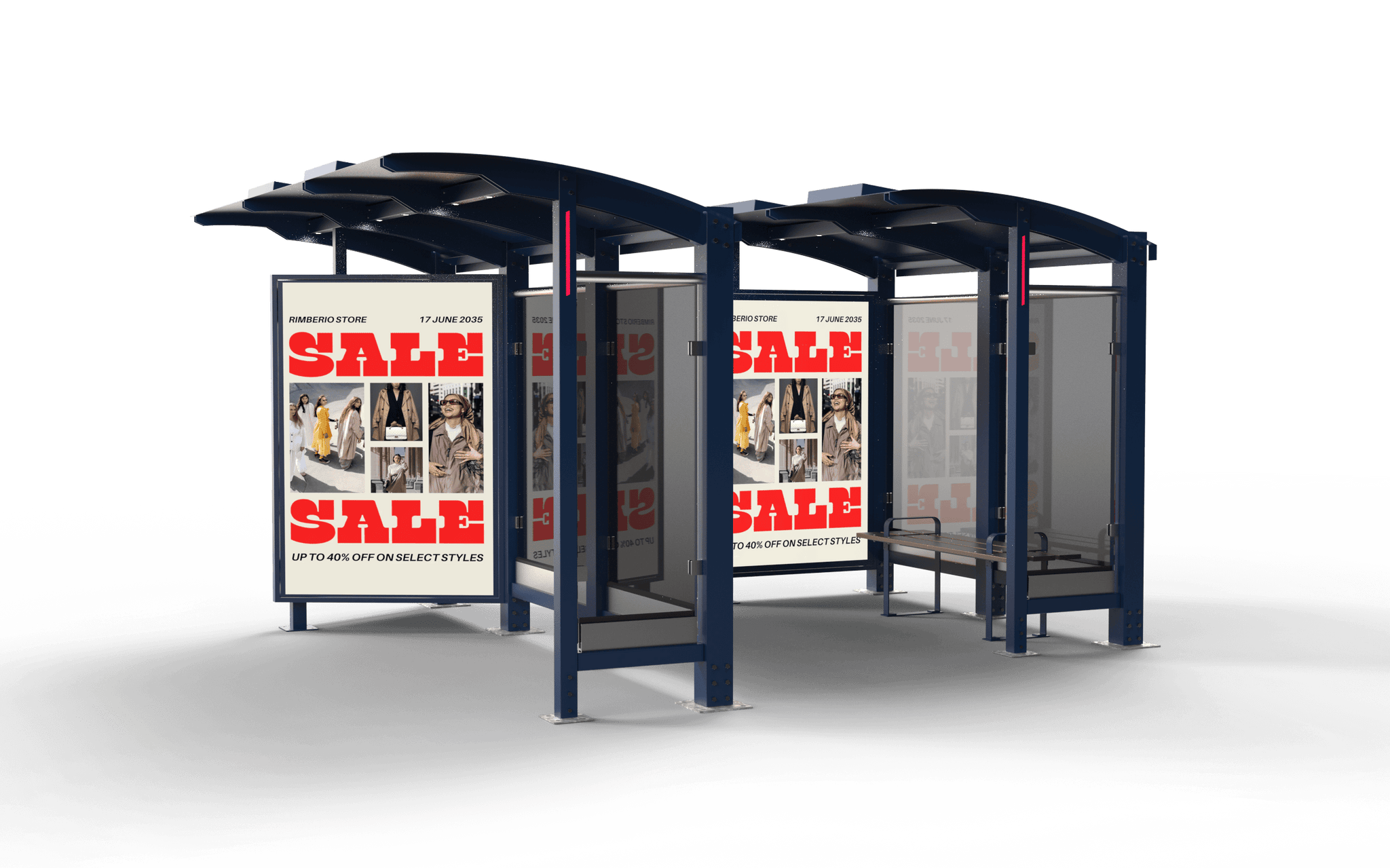

• Modular expansion to custom lengths

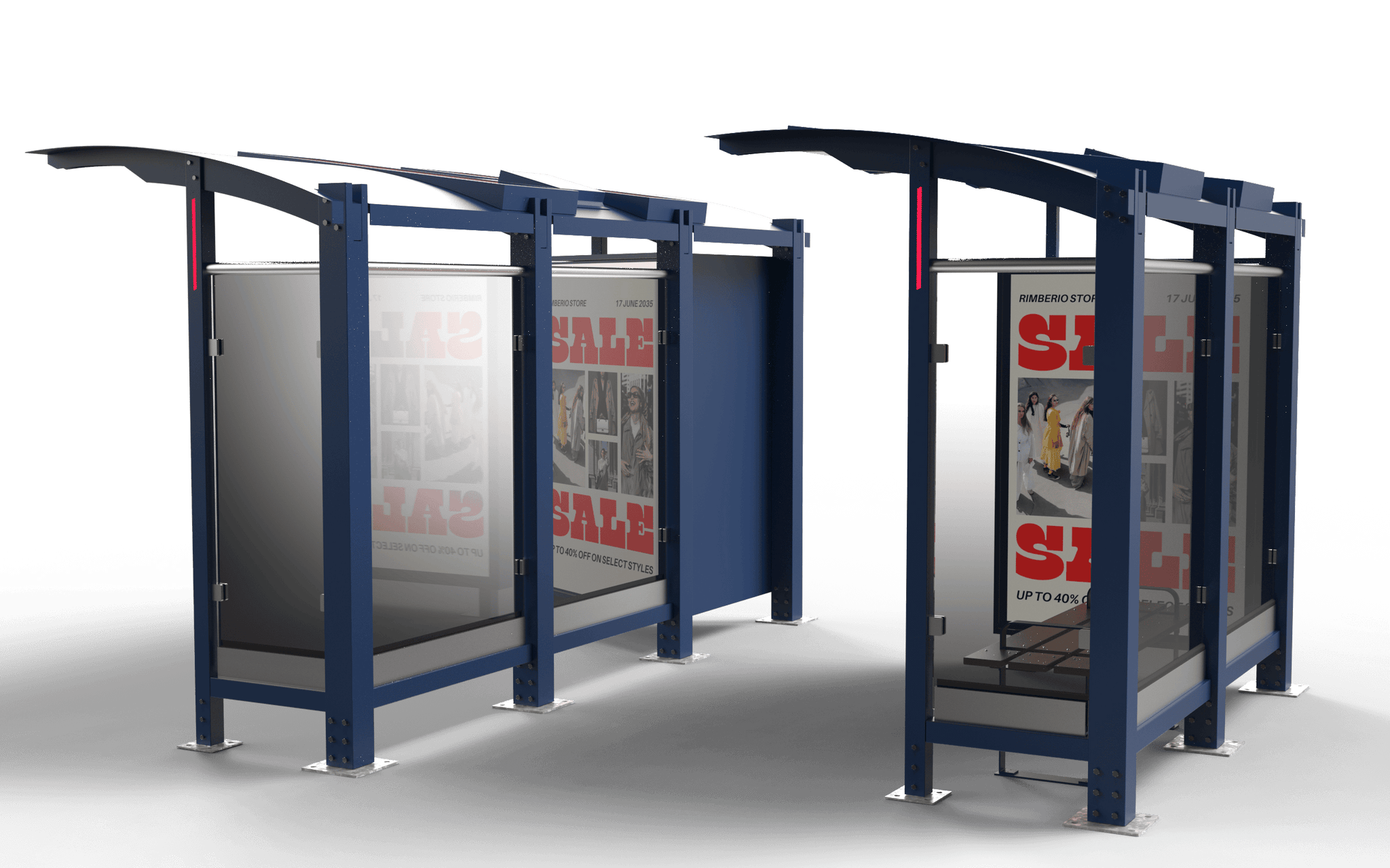

• Tempered glass or perforated metal wall systems

• Multiple advertisement display configurations

• Custom color powder coat finishes available

Design Advantages

• Open cantilever architecture improves visibility and passenger safety

• Curved roof profile enhances weather protection and solar collection

• Minimal footprint maximizes pedestrian circulation space

• Modular construction enables virtually unlimited expansion

• Hidden battery and control systems preserve architectural aesthetics

• Integrated advertising systems create potential revenue opportunities

• Fully off-grid operation eliminates utility infrastructure costs

• Contemporary architectural form enhances public spaces and transit environments

The ViewLine Shelter represents the future of public transportation infrastructure—where sustainability, accessibility, technology, and architectural excellence converge. By integrating renewable energy, intelligent safety systems, and modular design principles, the ViewLine transforms transit stops into modern civic assets designed to serve communities for decades to come.
