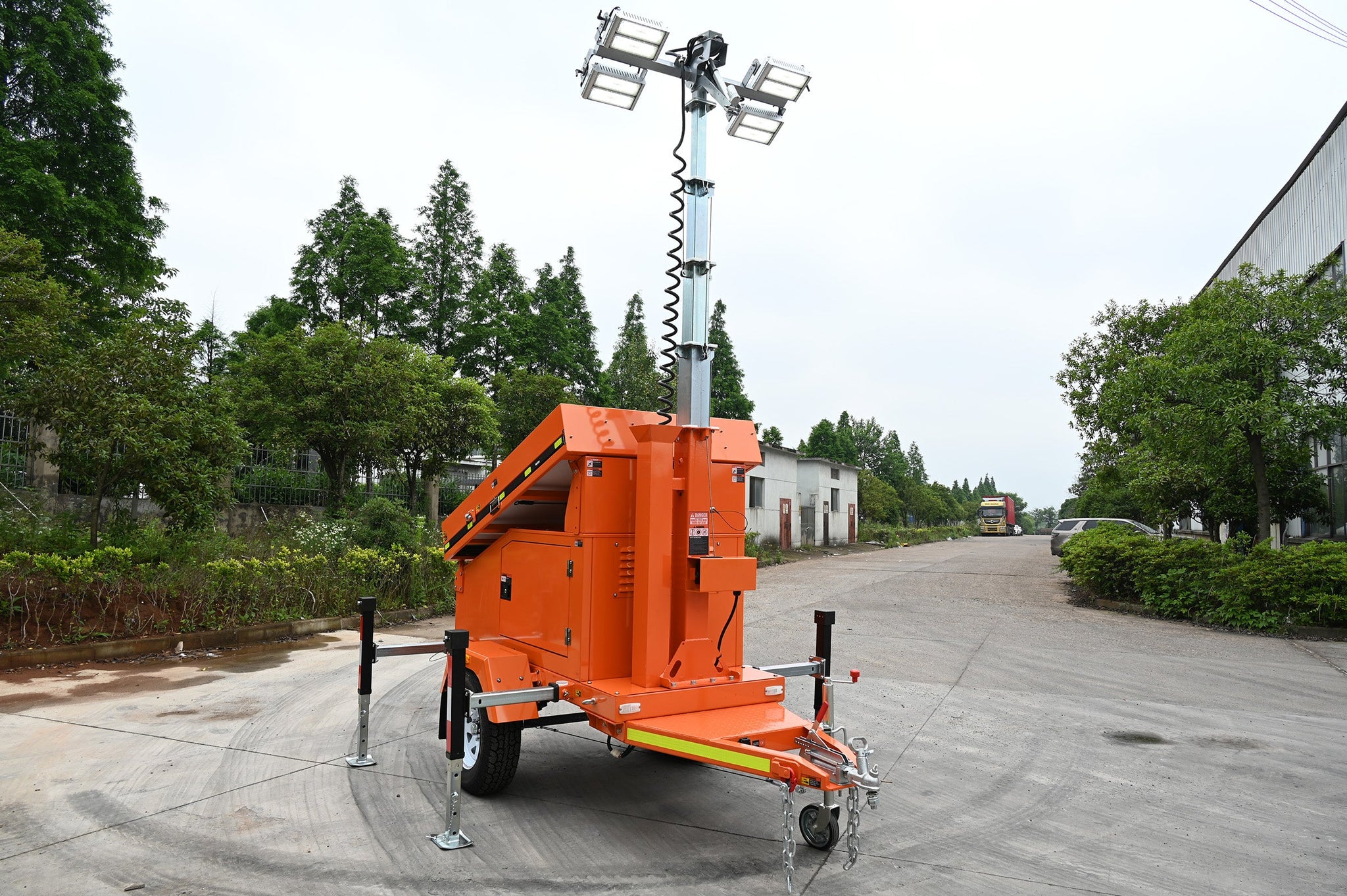

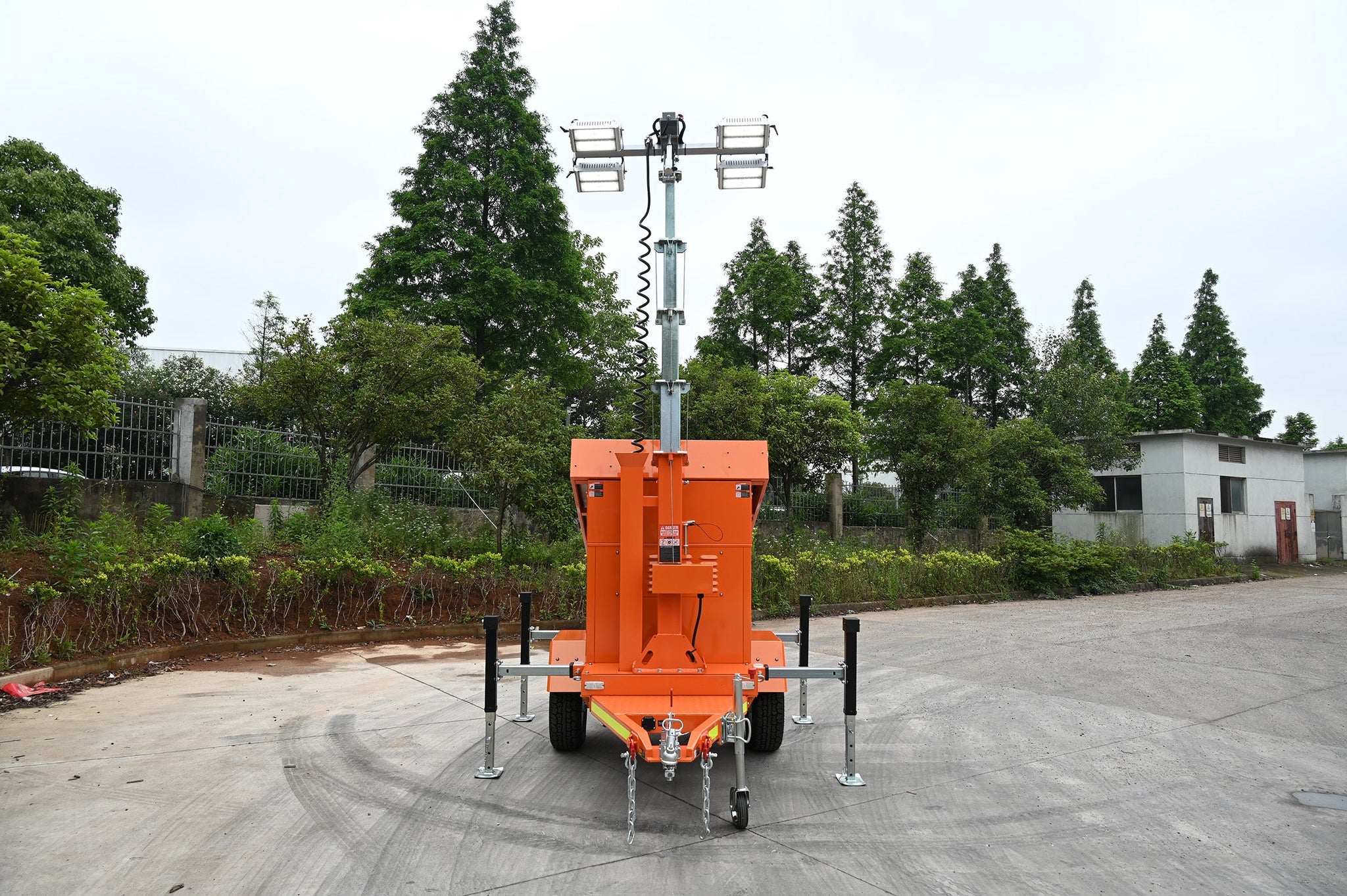

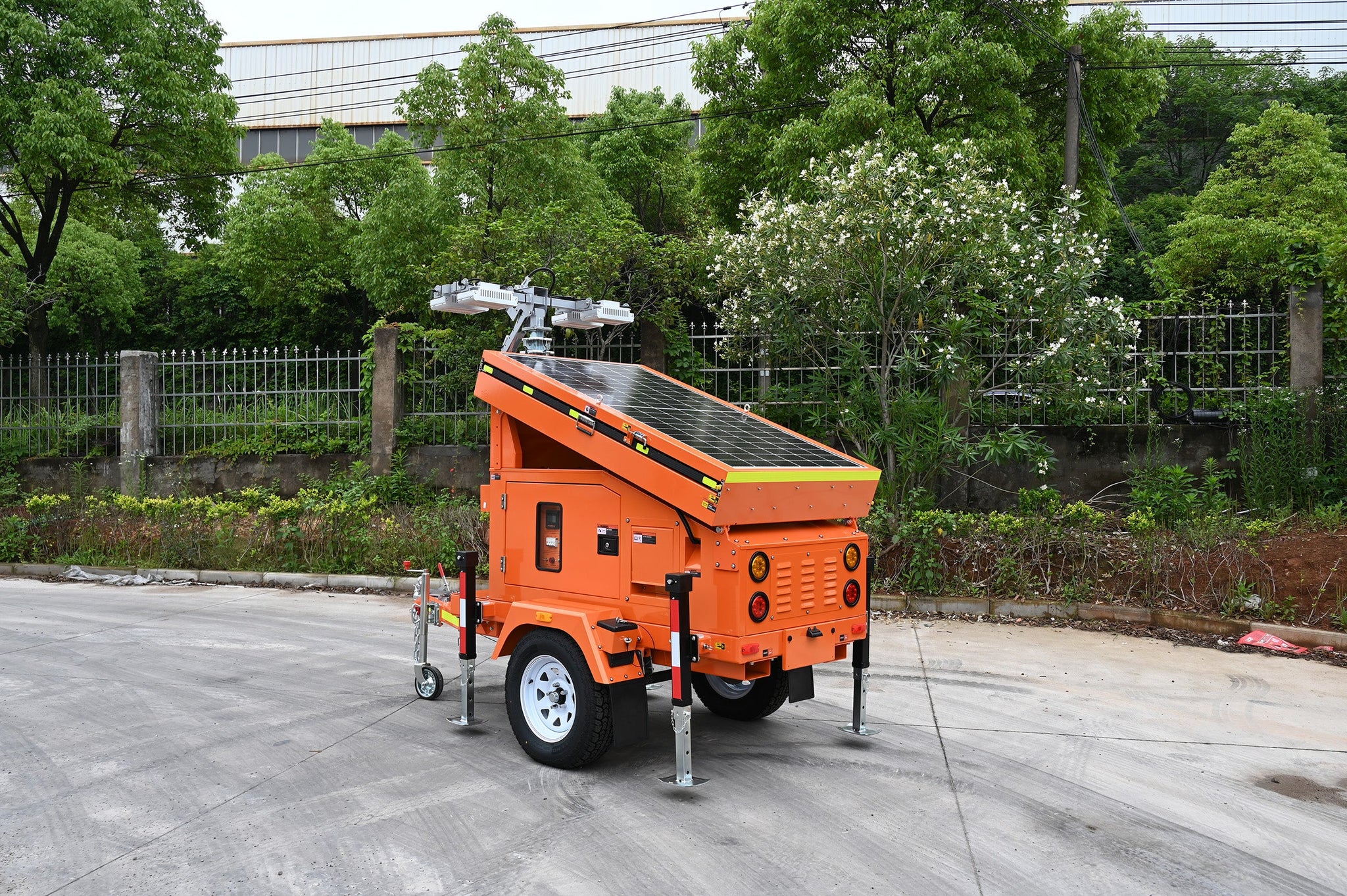

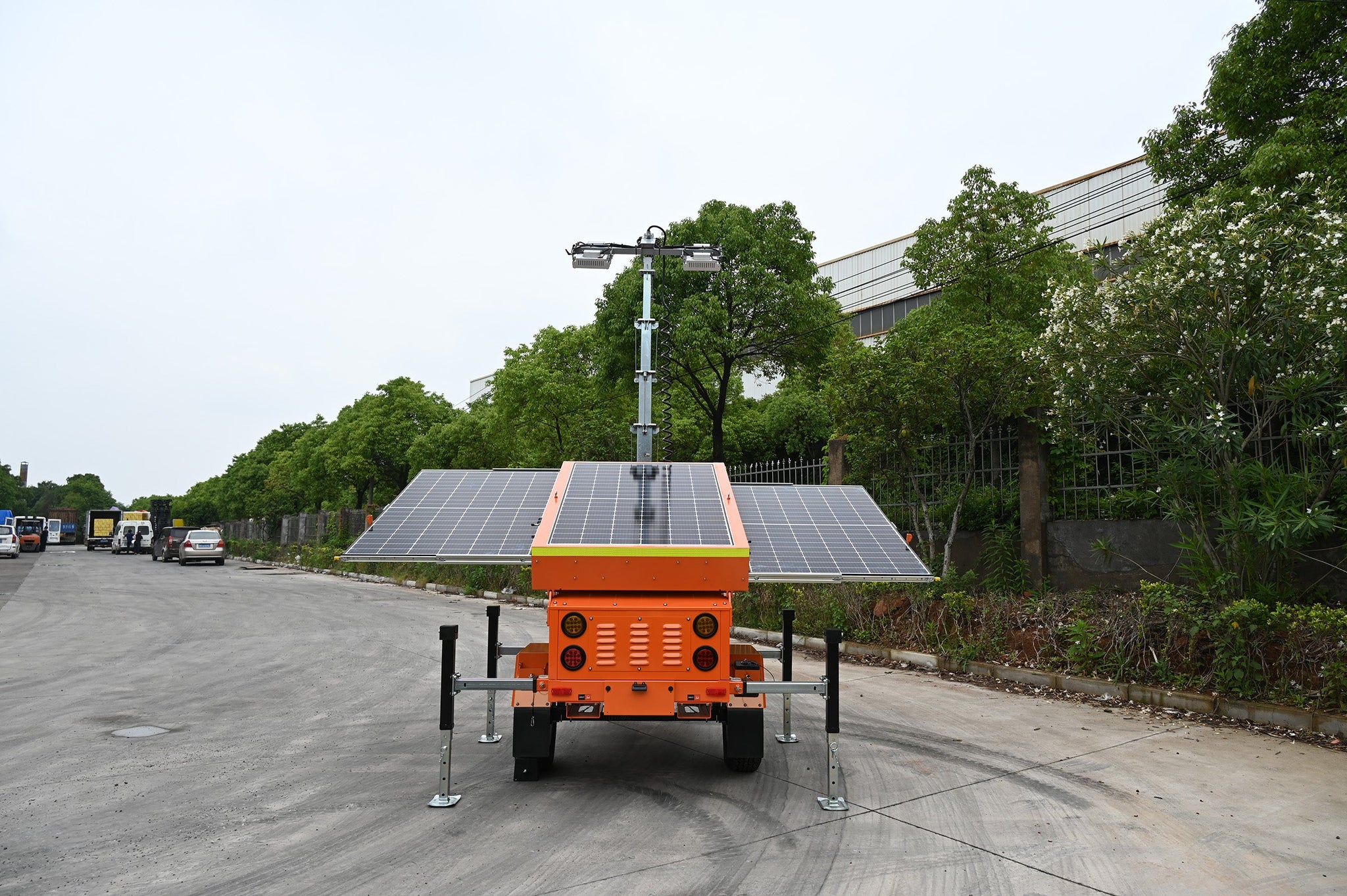

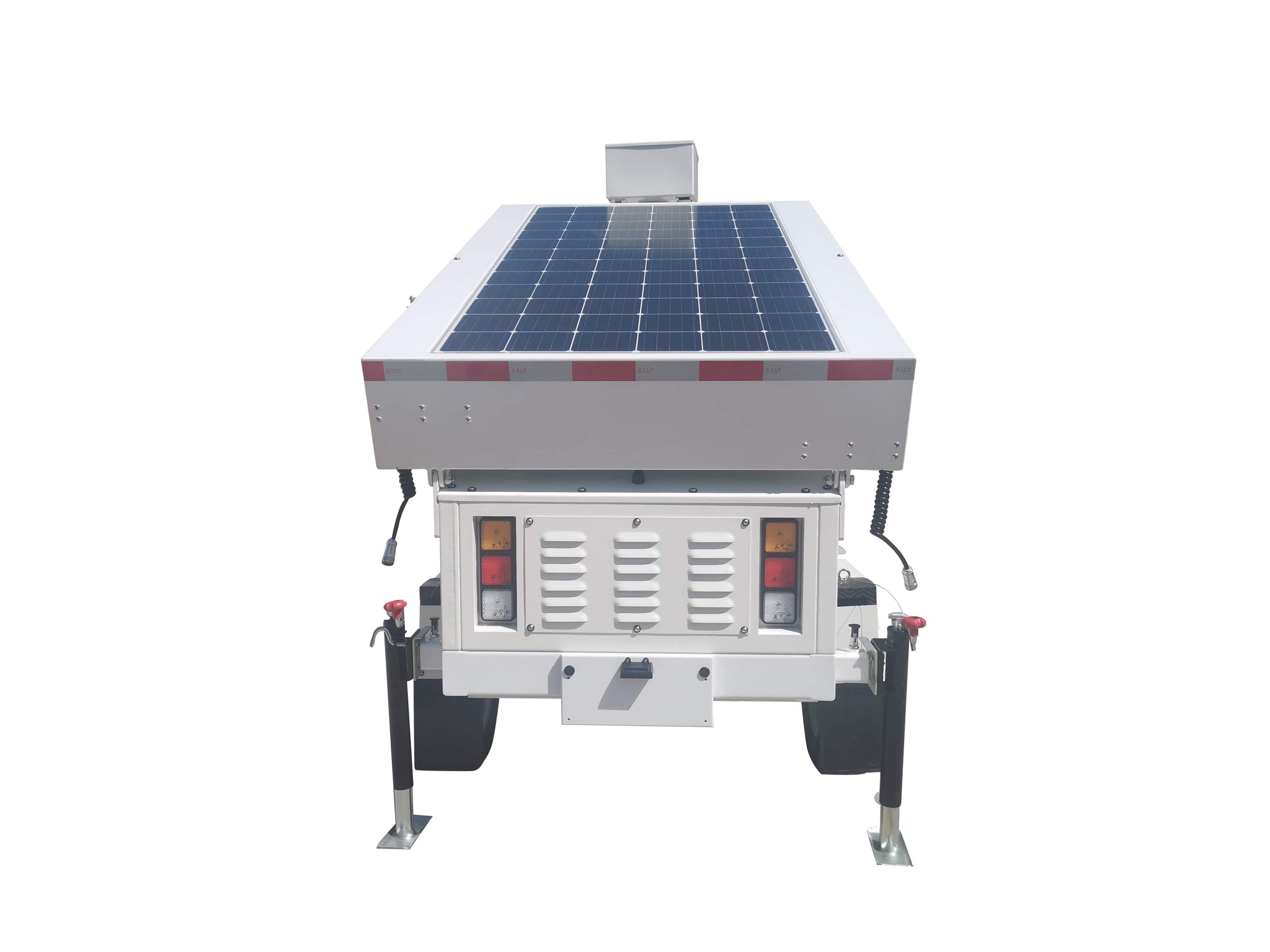

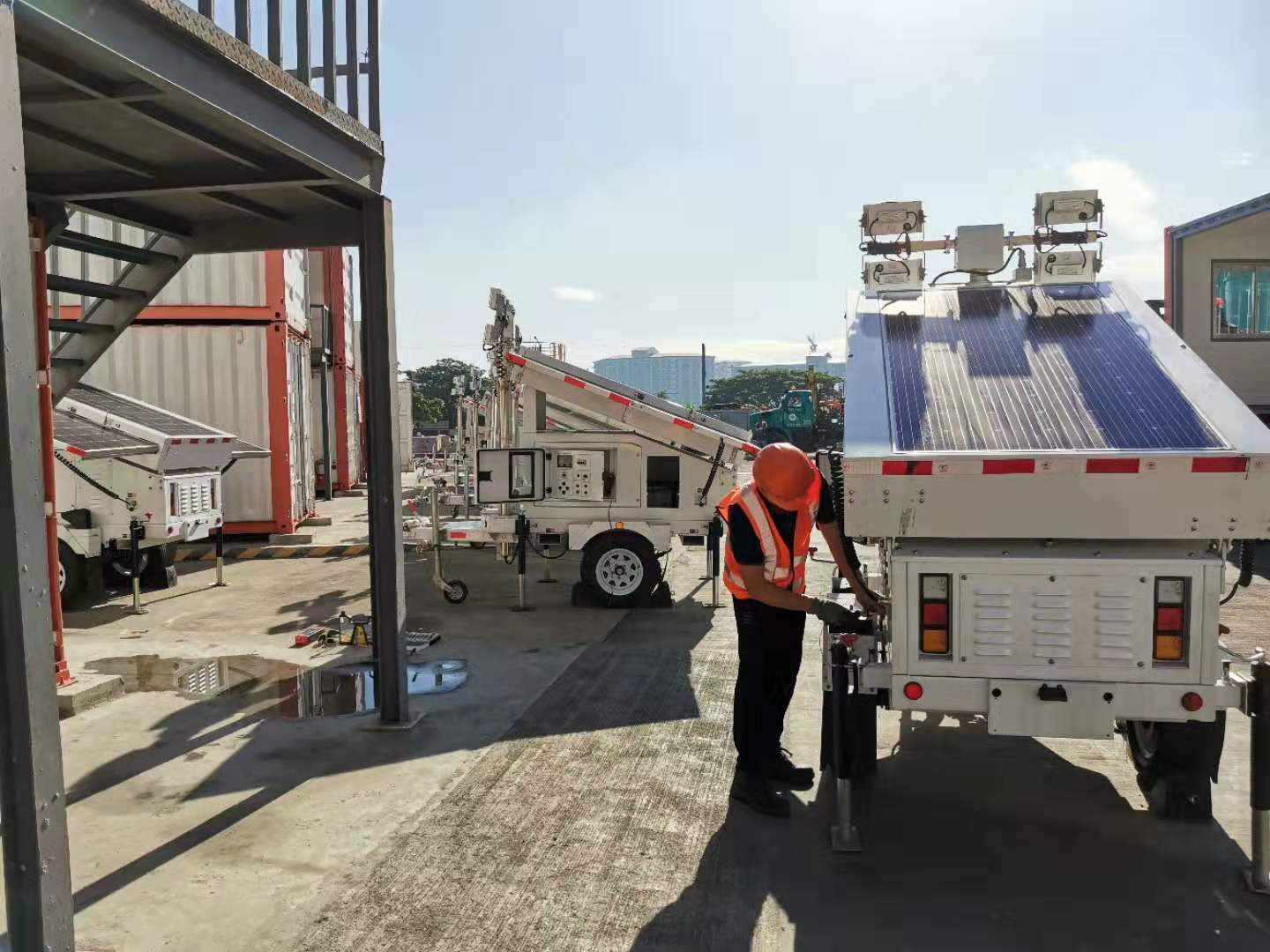

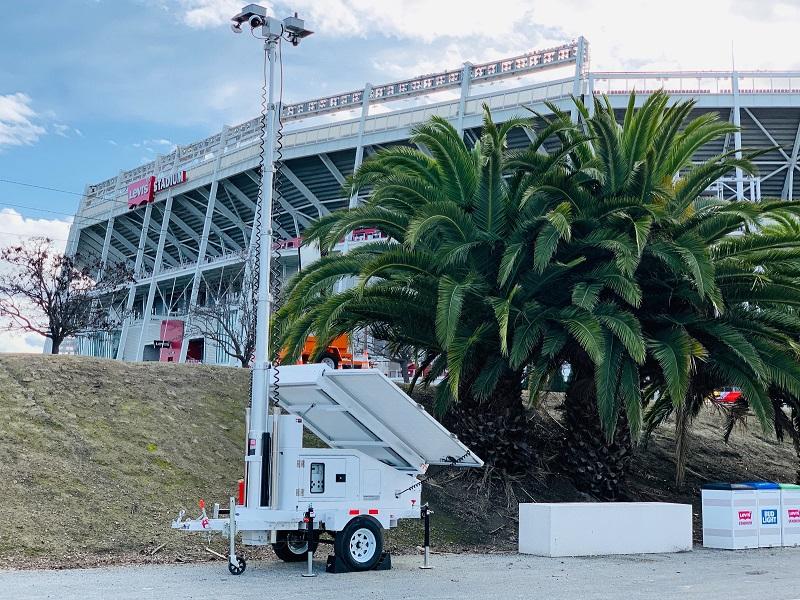

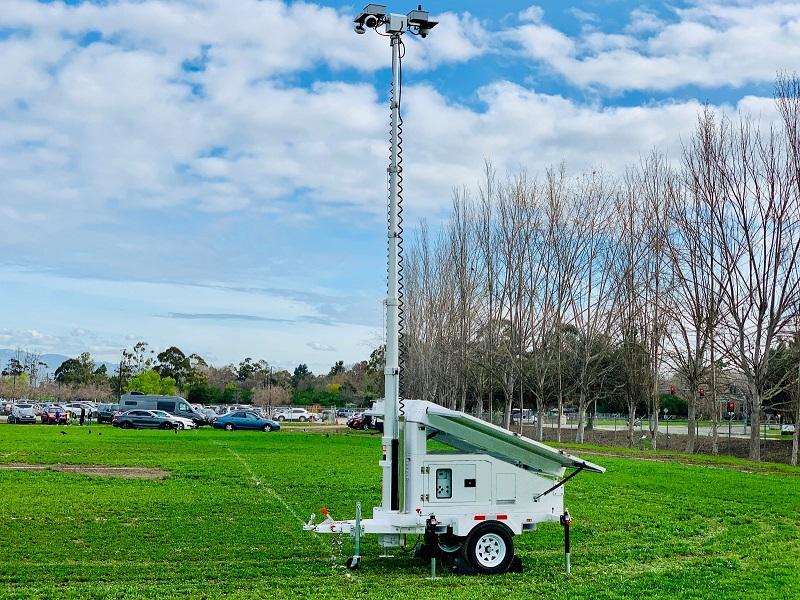

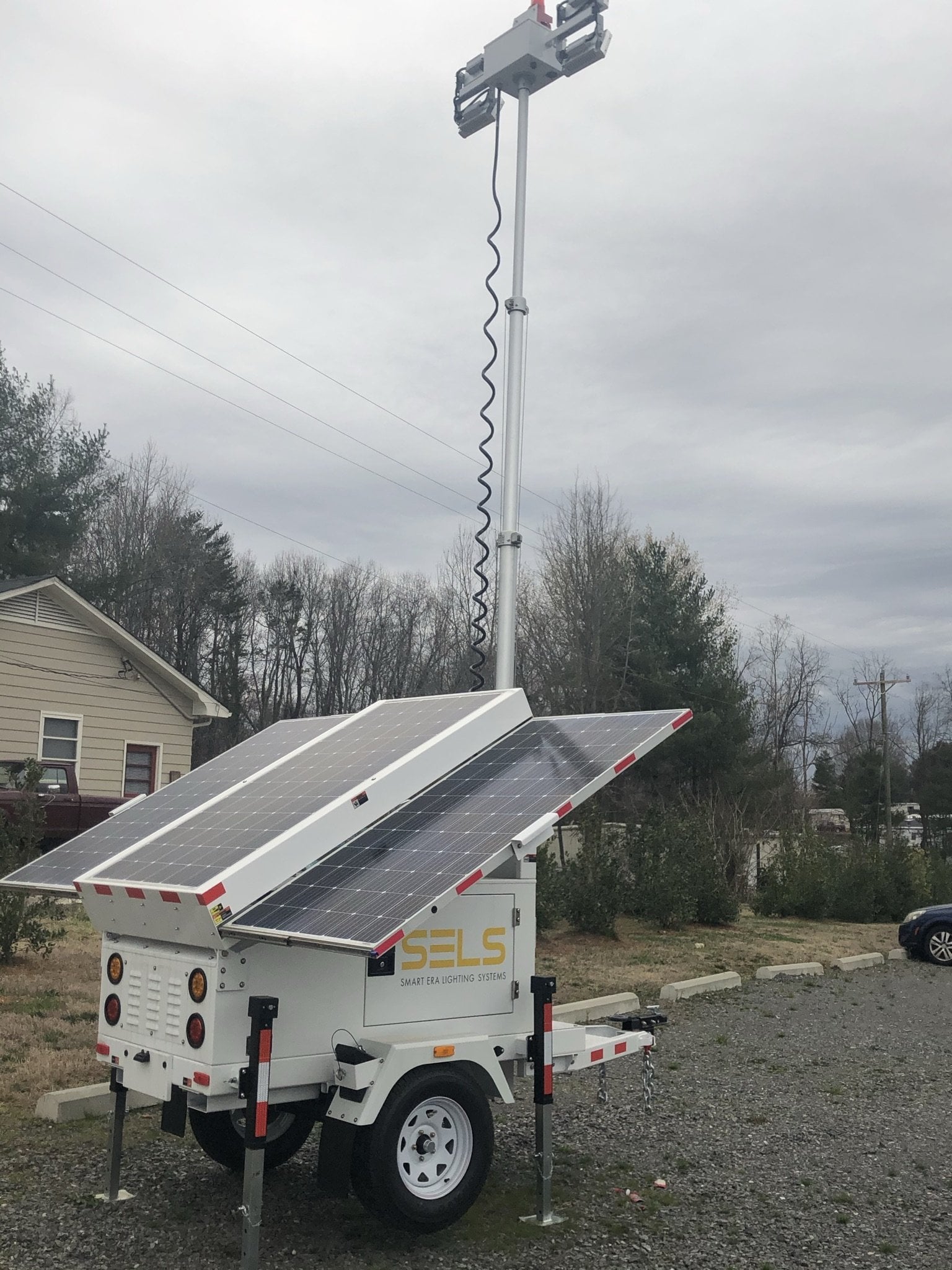

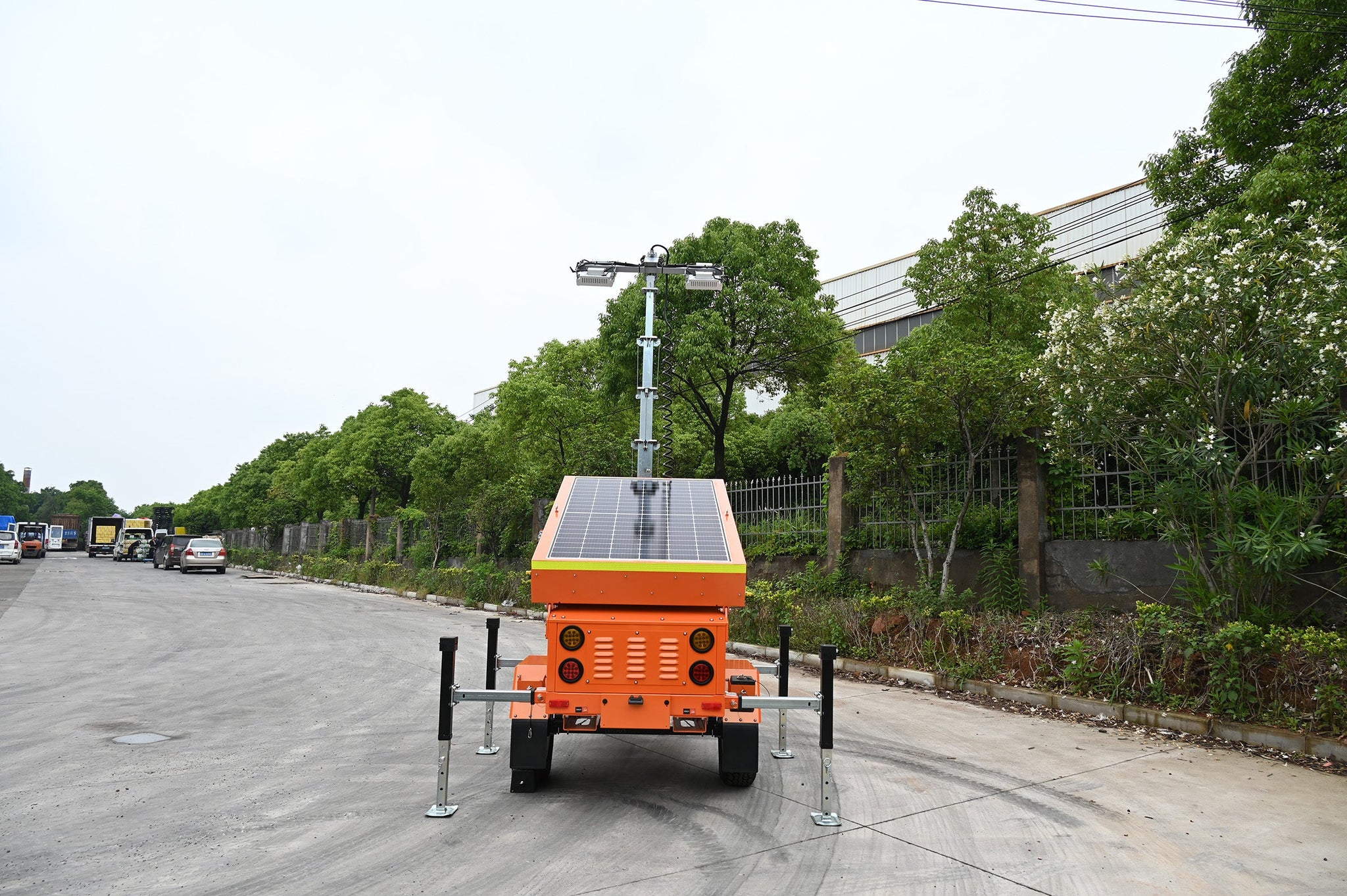

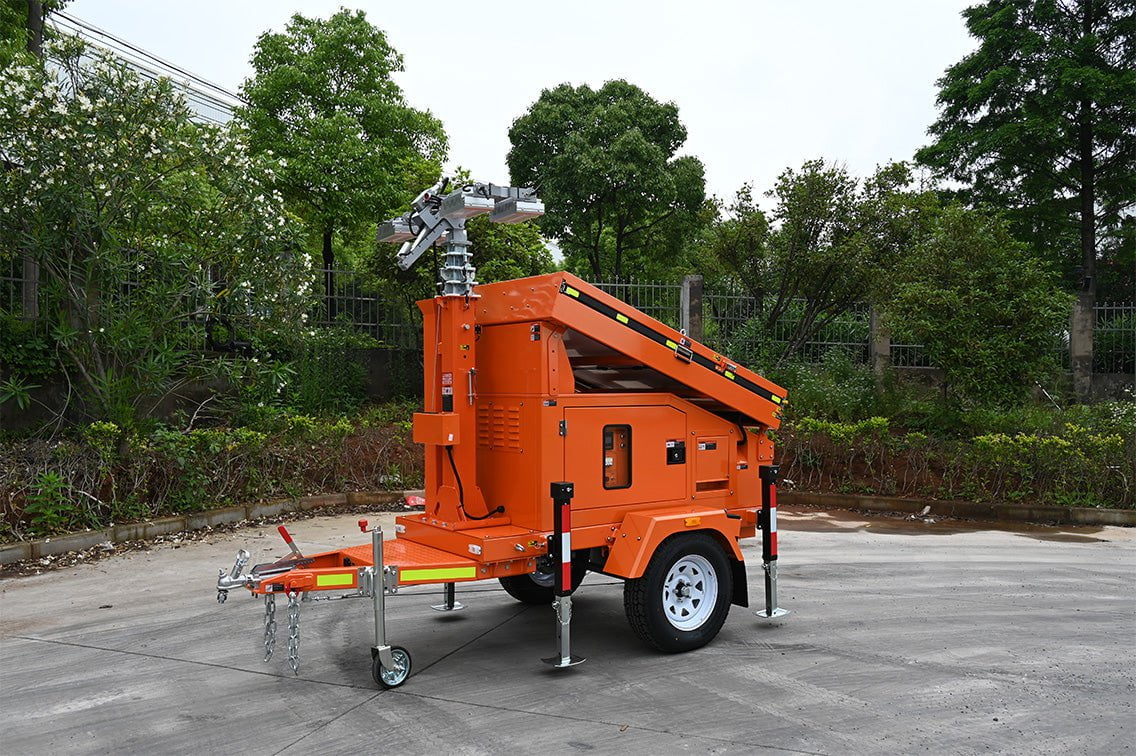

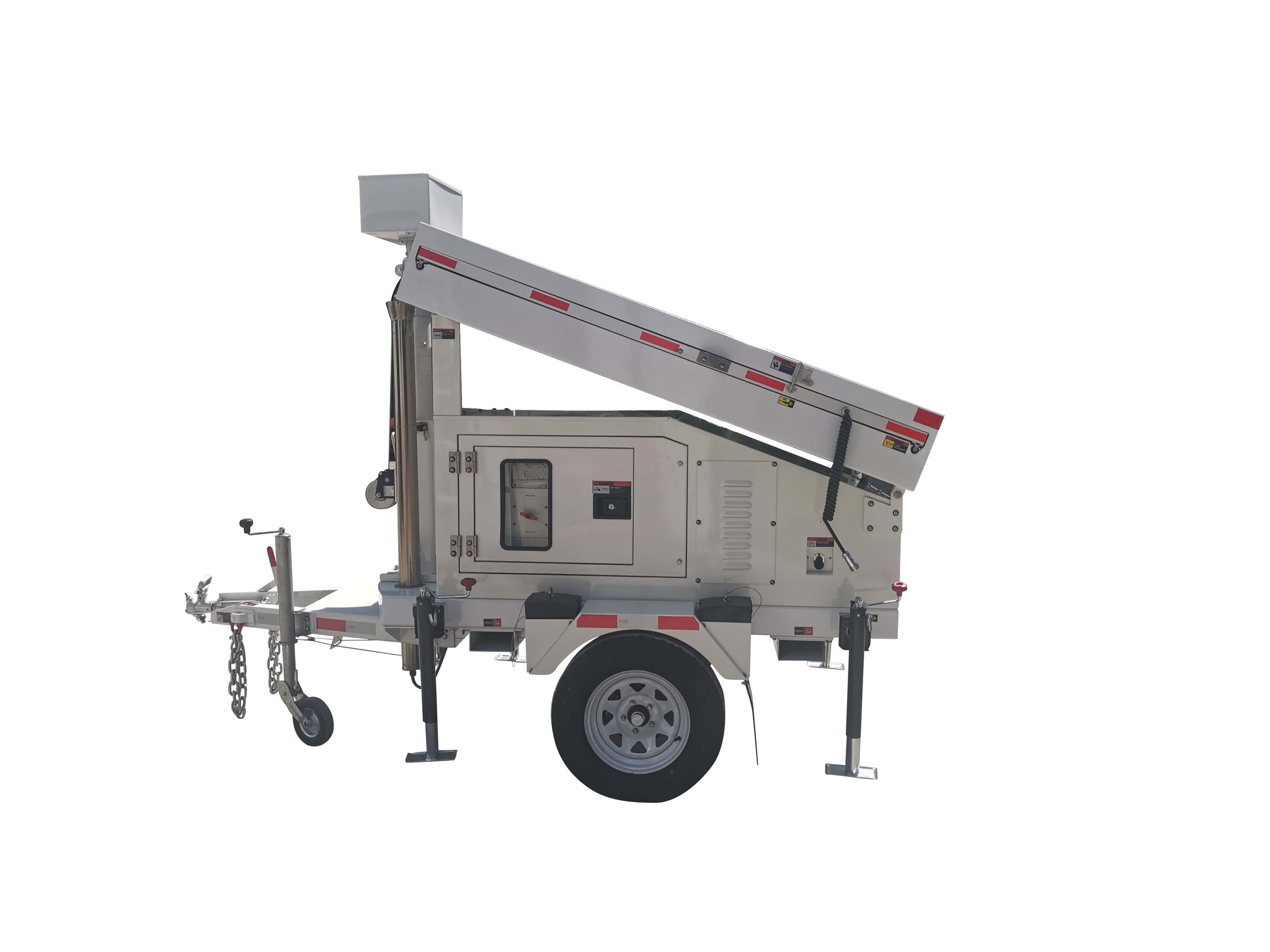

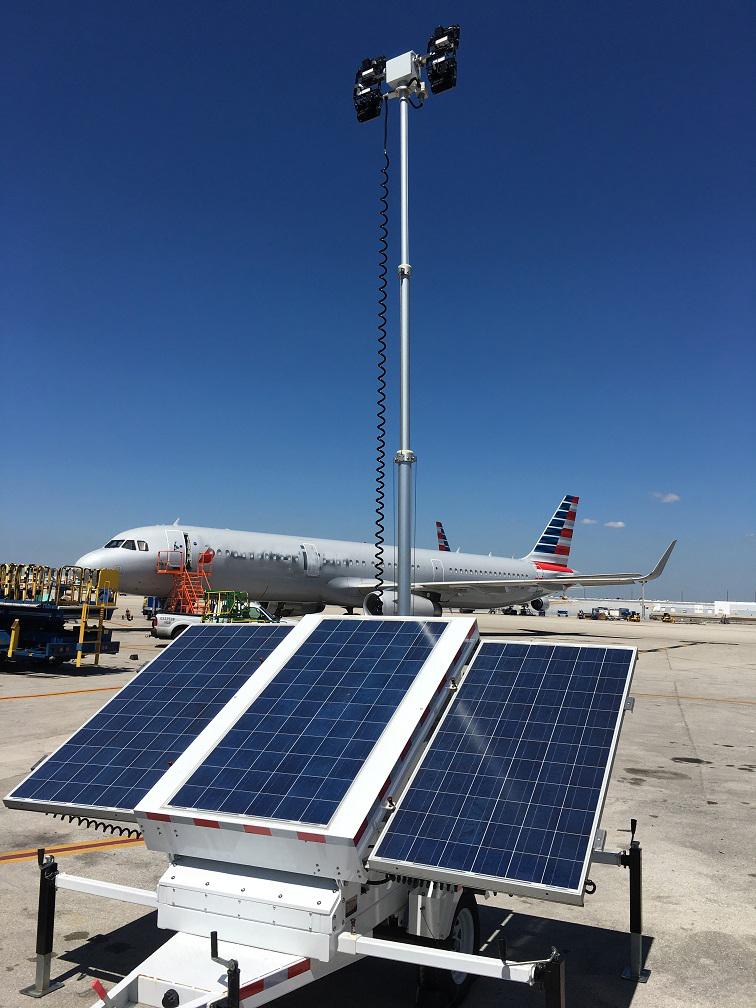

SELS’ Mobile Power Units are a rugged solution for demanding site requirements including security lighting, surveillance, communications, and miscellaneous power needs. Zero upkeep or maintenance costs required making SELS’ power towers the ideal solution for temporary or long-term deployment. SELS’ designs are optimized for performance and reliability ensuring continuous use and on-demand power.

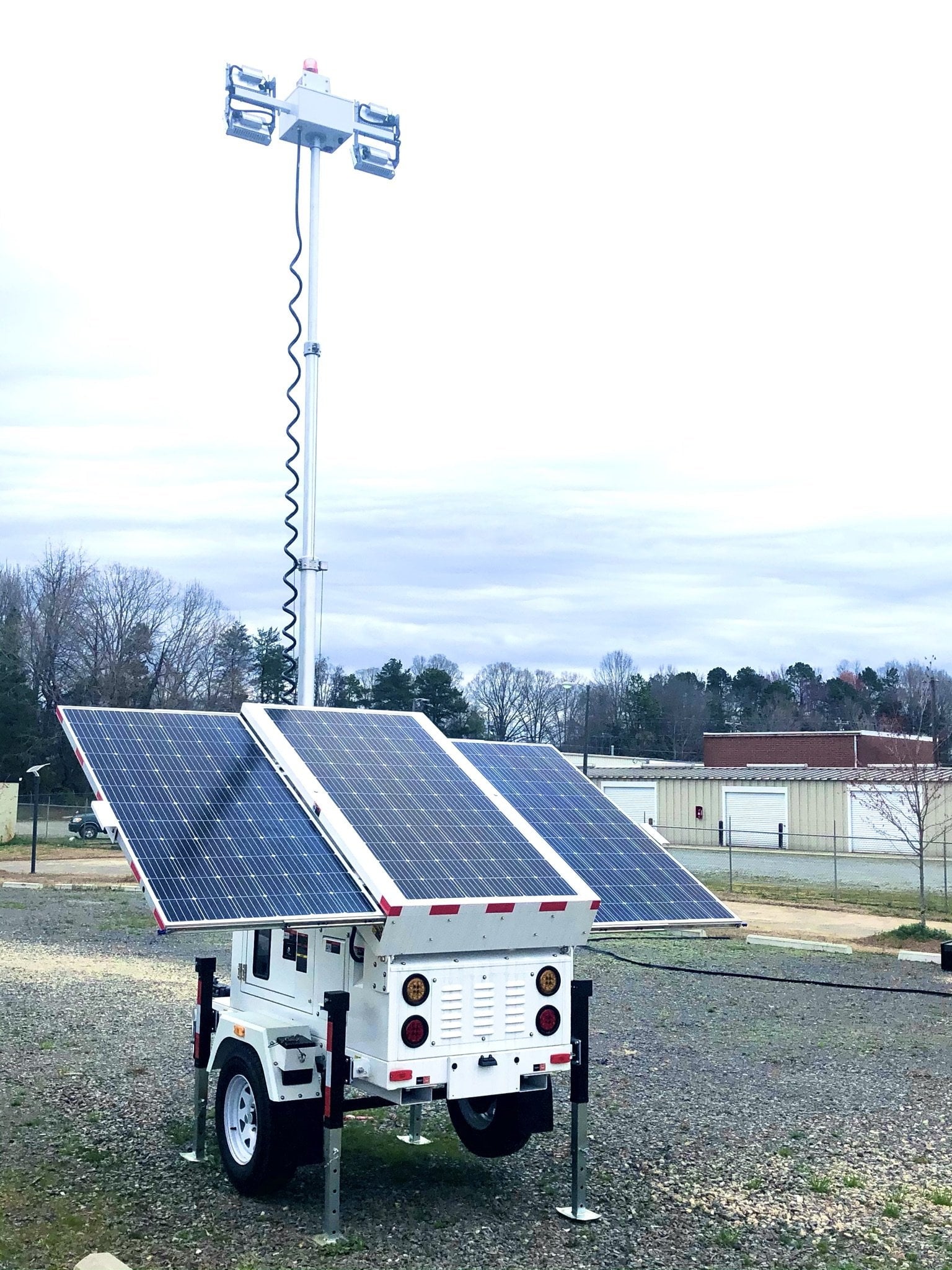

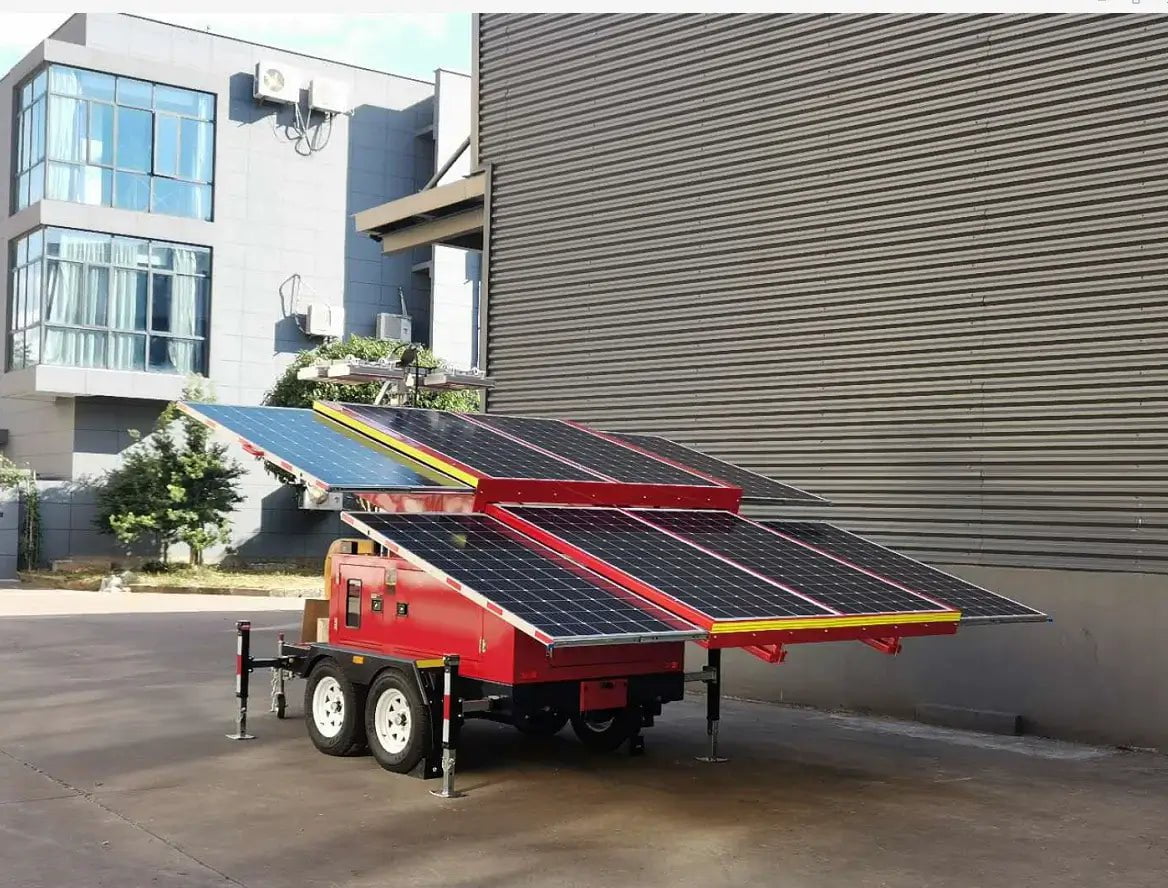

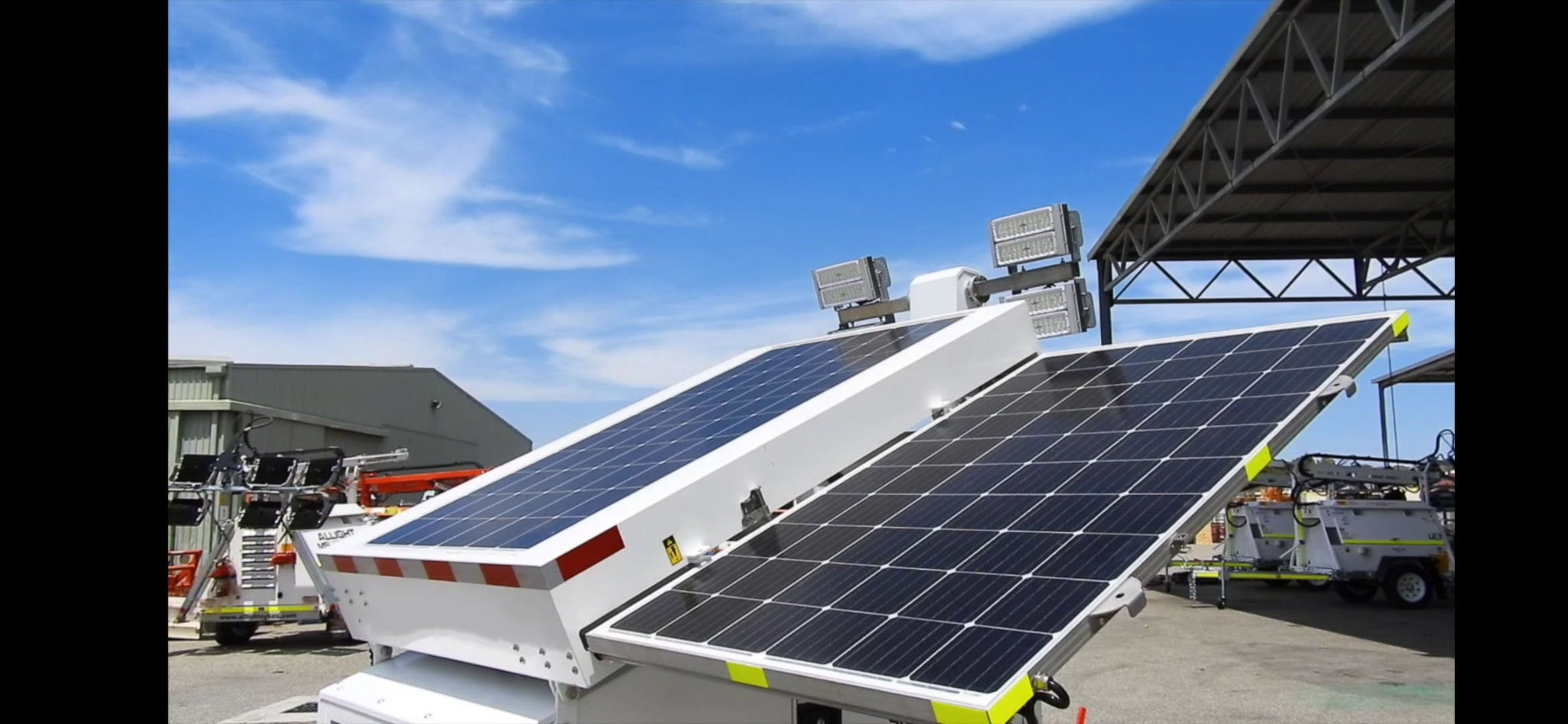

- Up to 2720W of solar power generation for the most demanding configurations

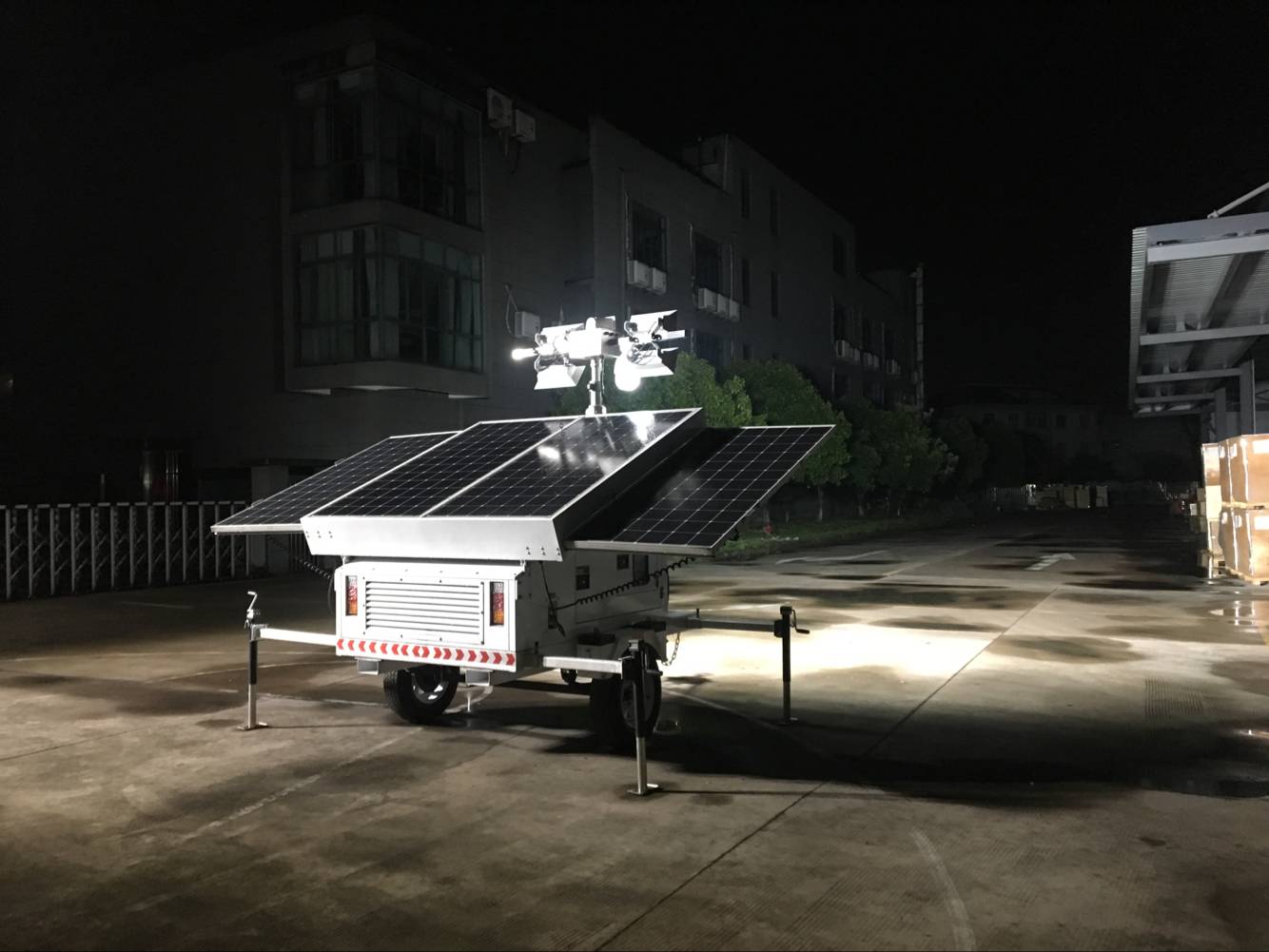

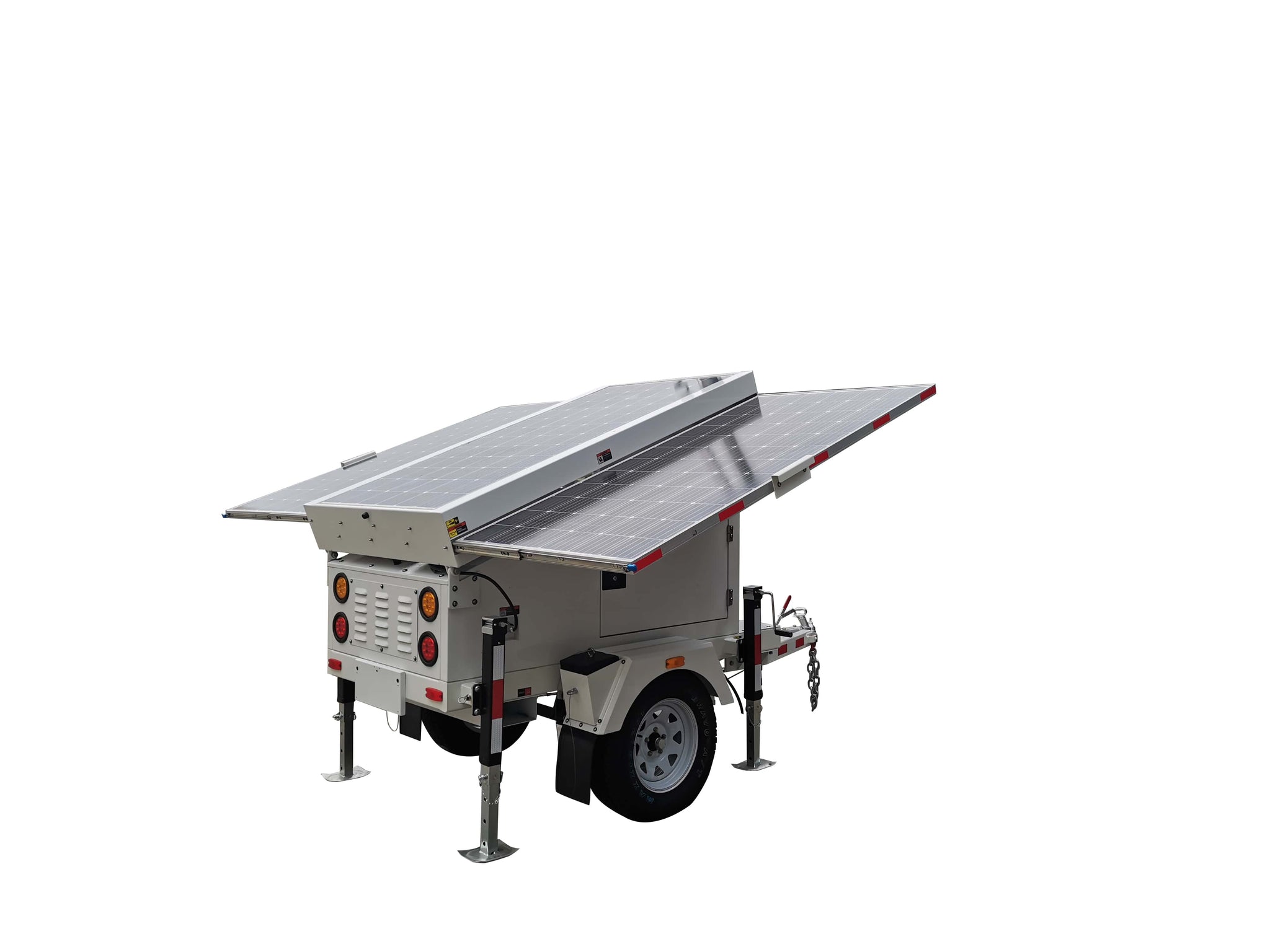

- Easy expansion and stowing of solar panels for quick deployment and power collection
- Customizable component selection available for a wide range of applications

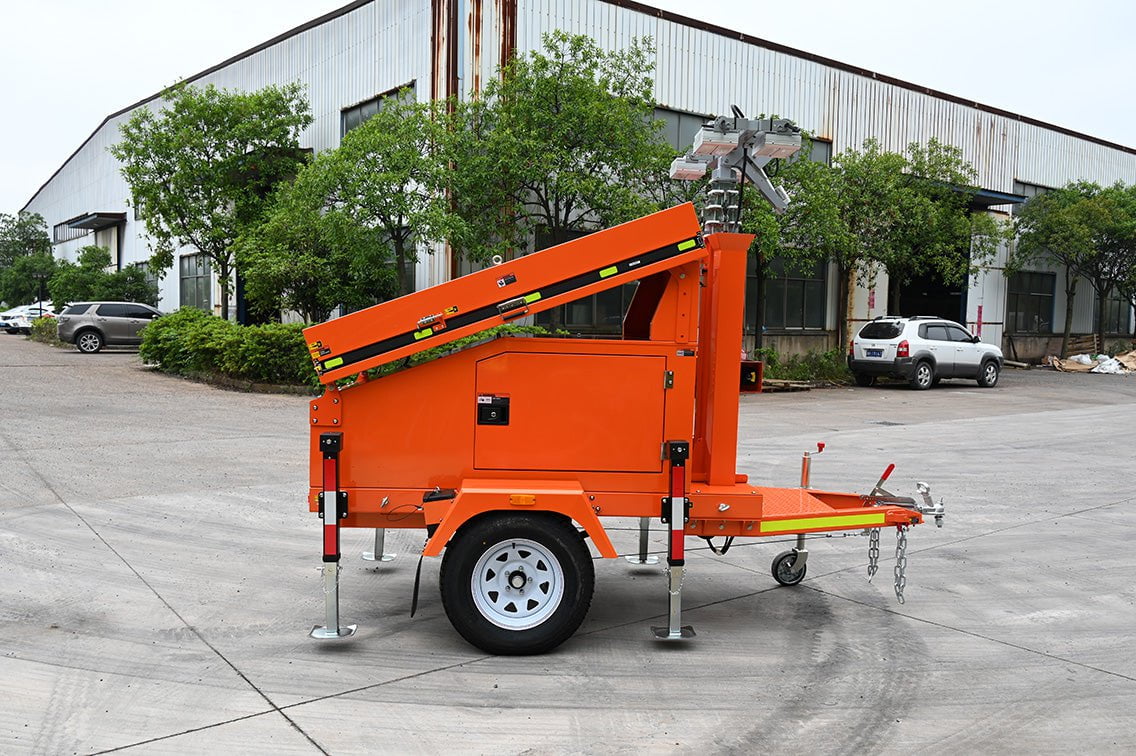

- Fully welded structural steel construction and wide-base outrigger jacks provide stability in any location

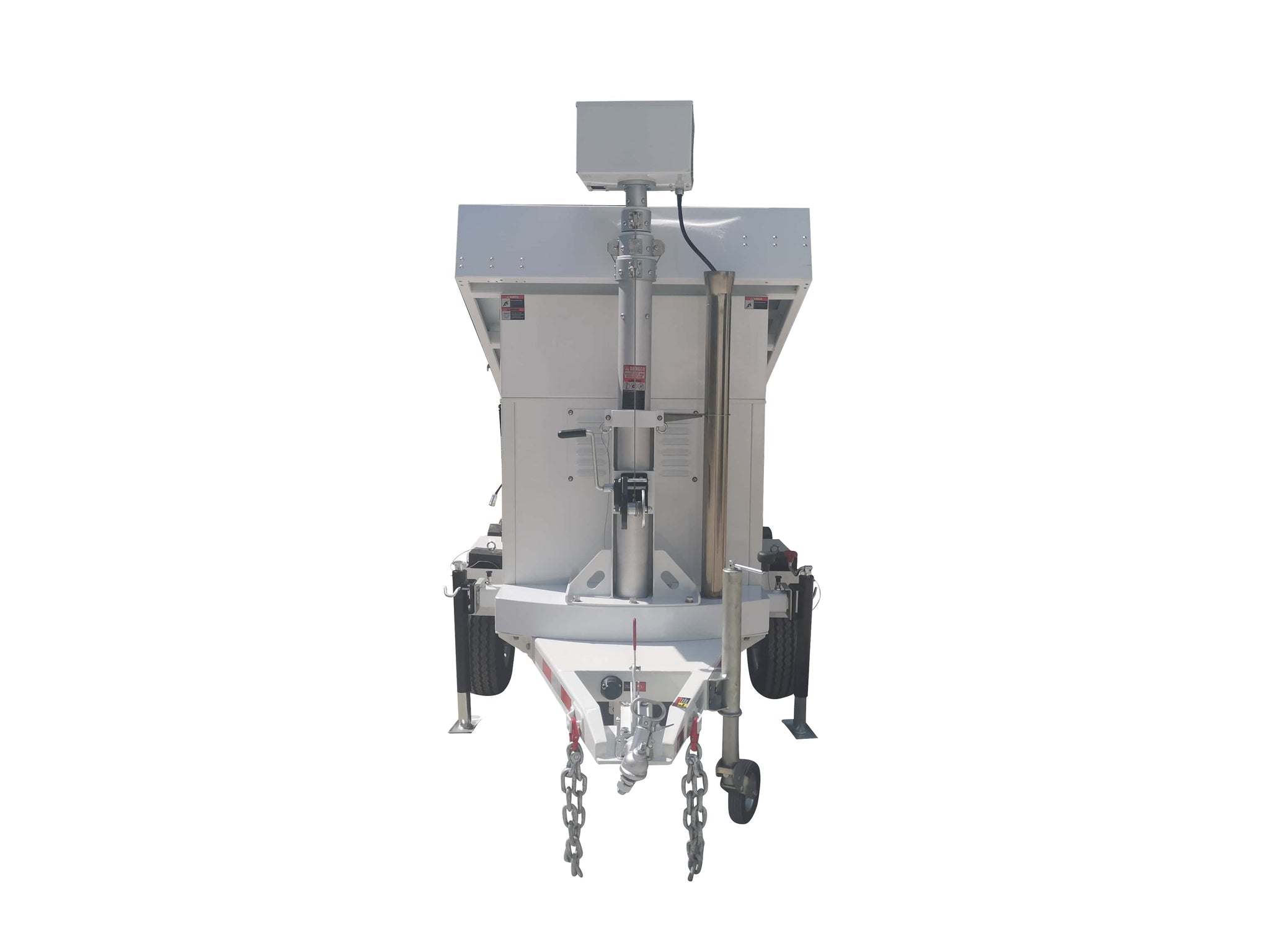

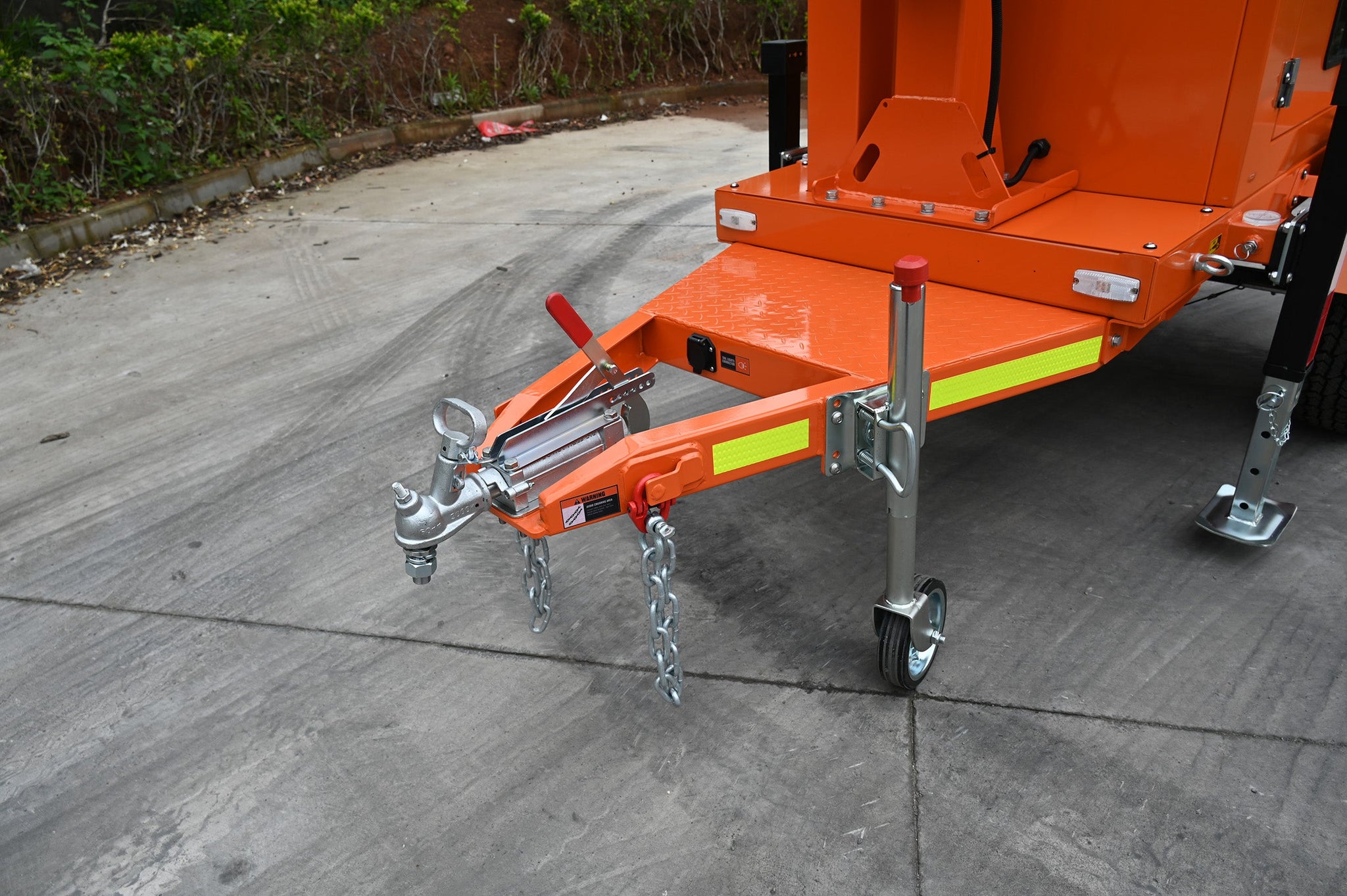

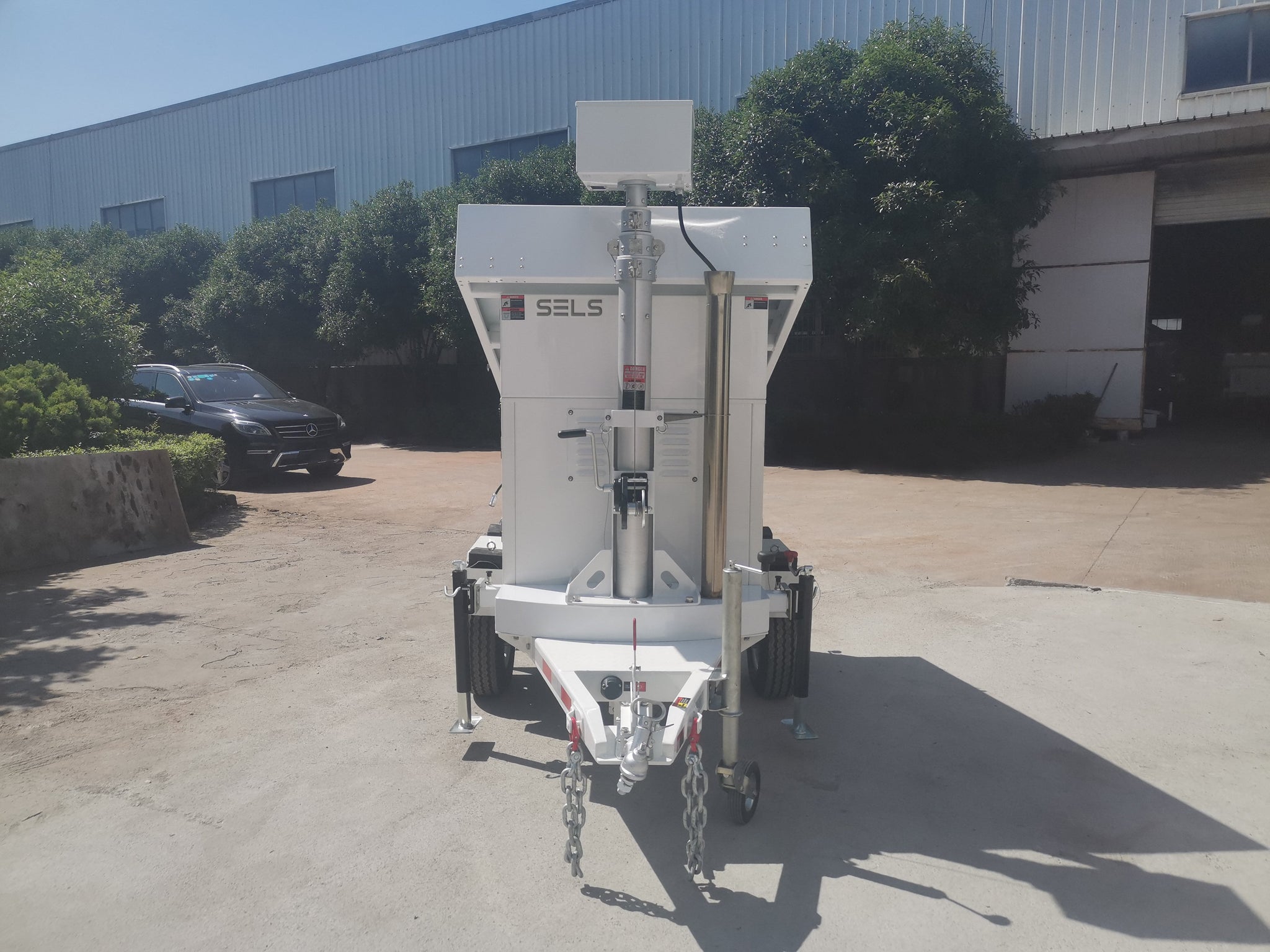

- Extra long detachable tongue, forklift pockets, and dual axles offer a variety of transport methods and storage options
- Up to 38kWh power storage creates a system capable of providing the power needed for any application
- Available with a variety of receptacles, input and output power options, and components, anything is possible

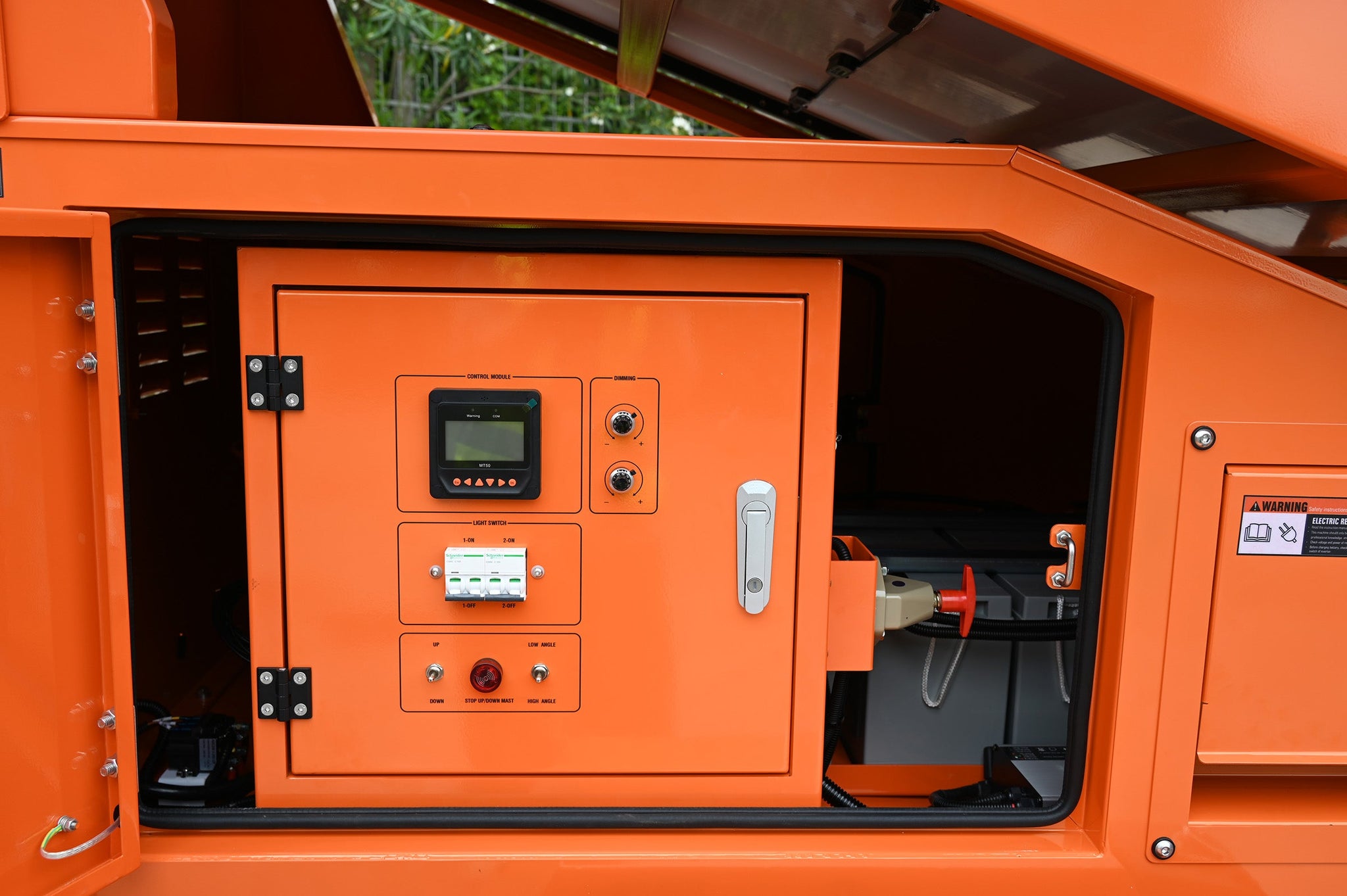

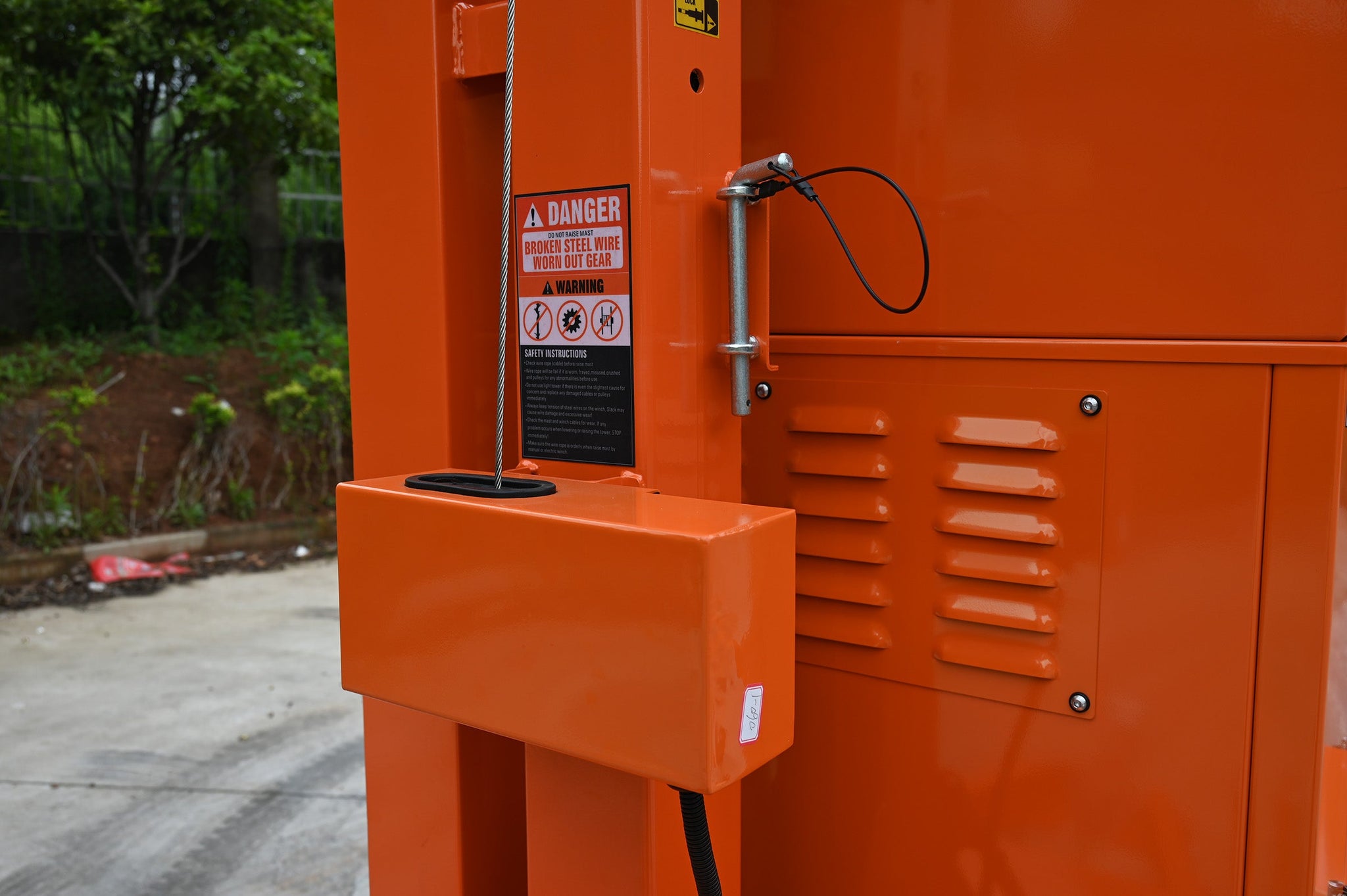

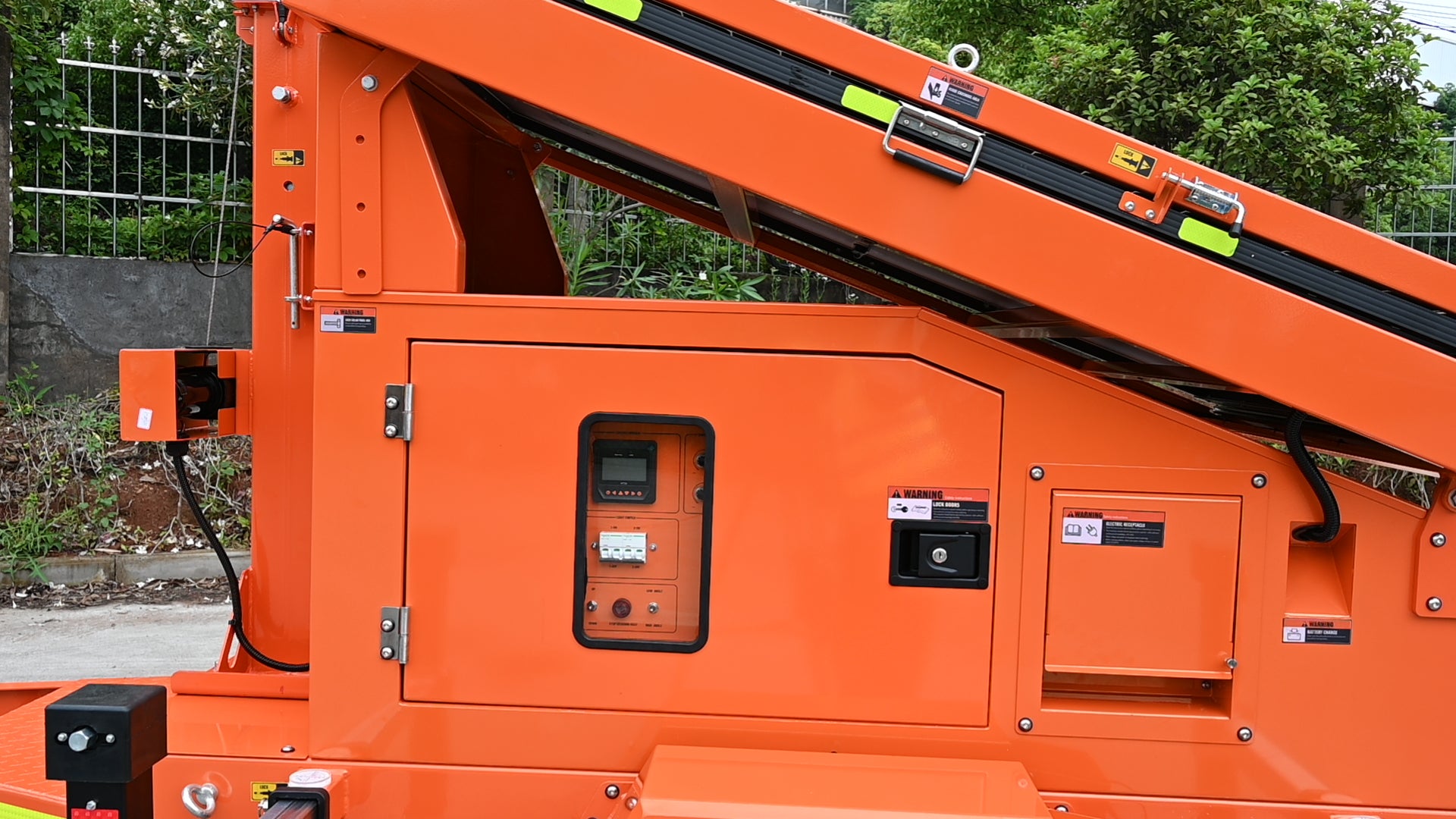

- Locking, weatherproof enclosures allow our systems to be used in a range of environments with no concern for tampering or damage

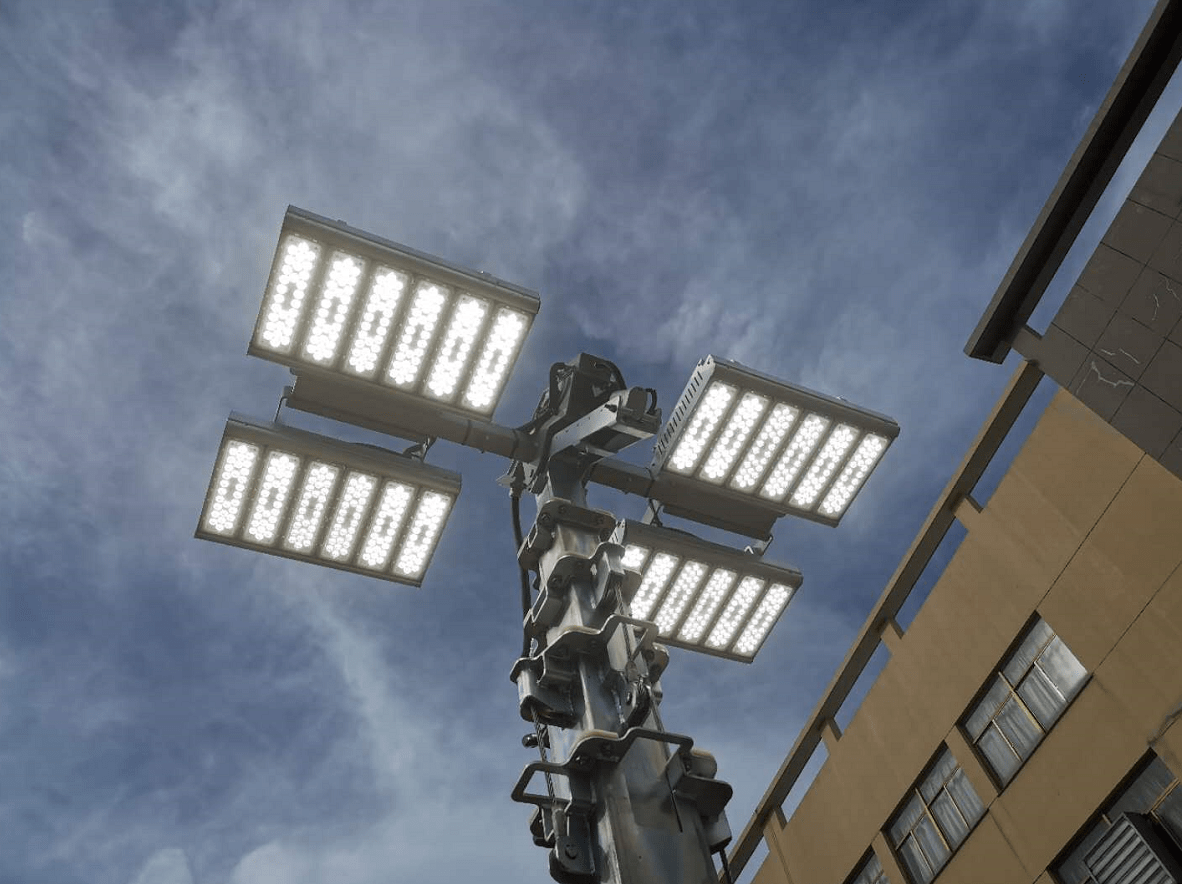

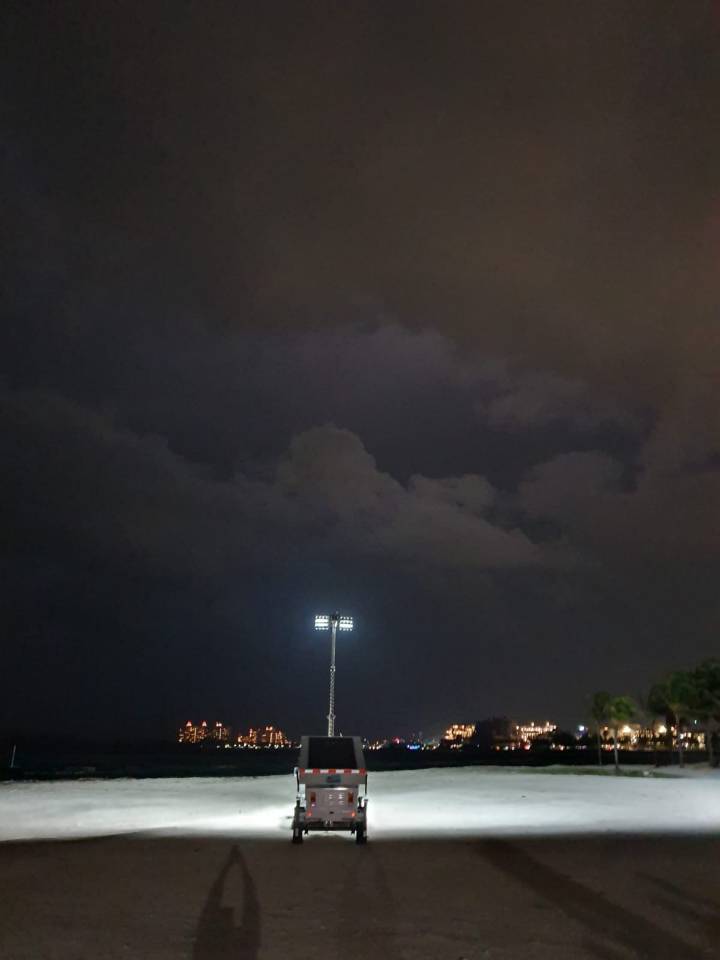

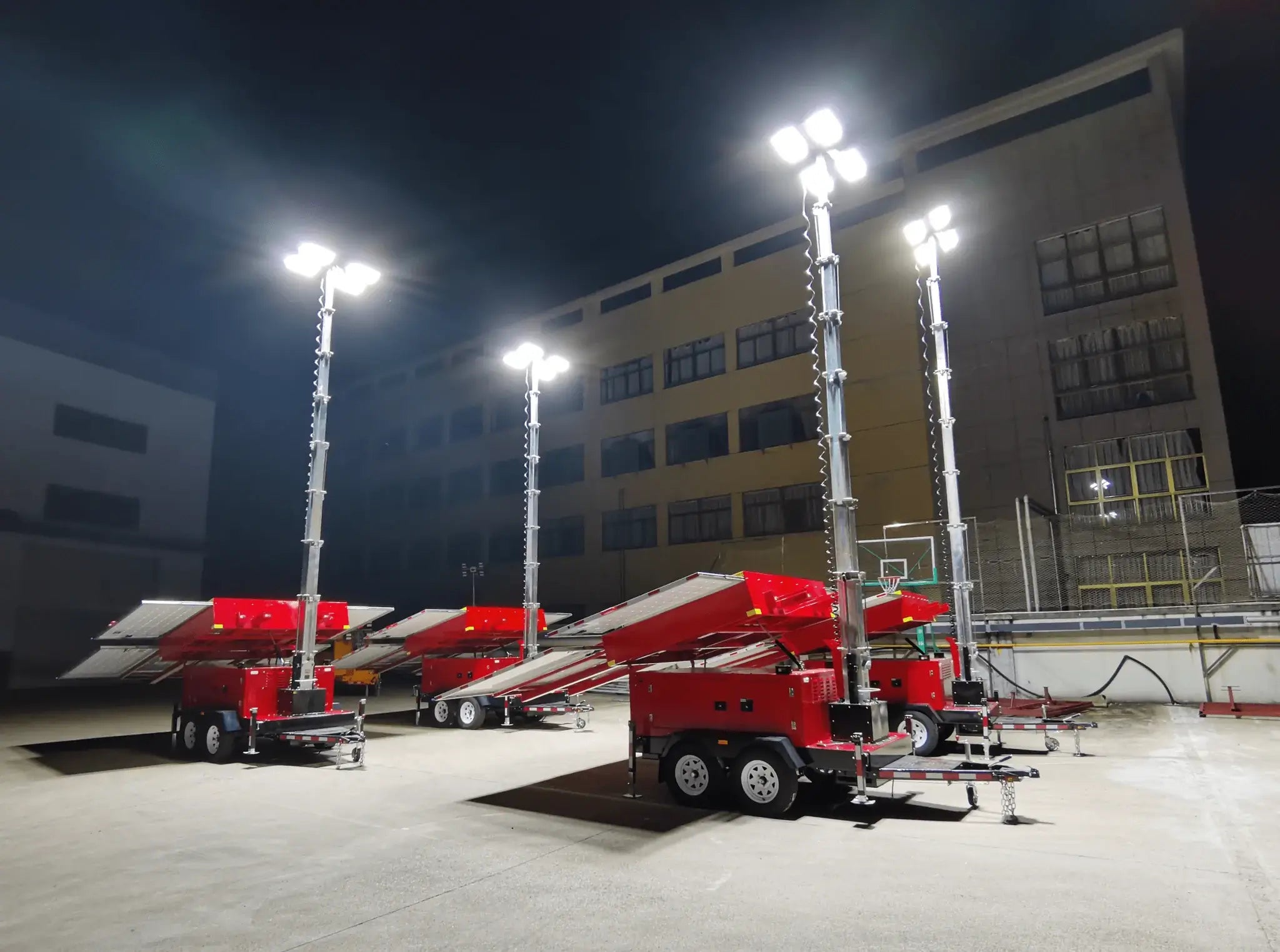

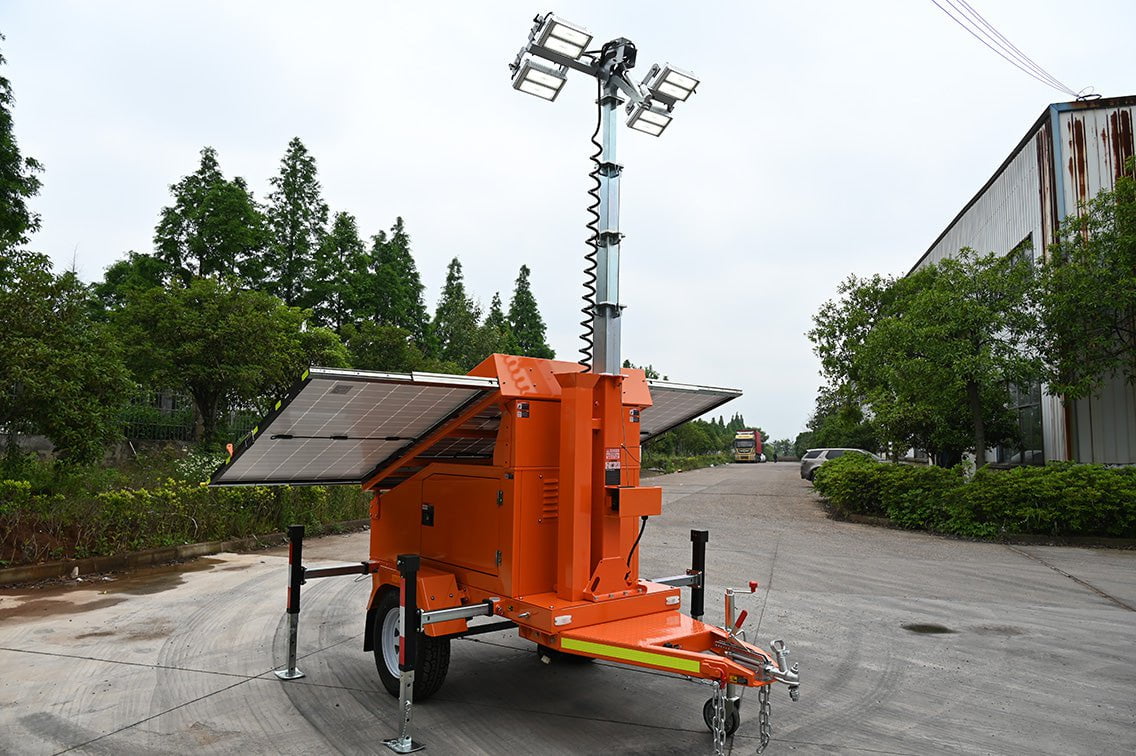

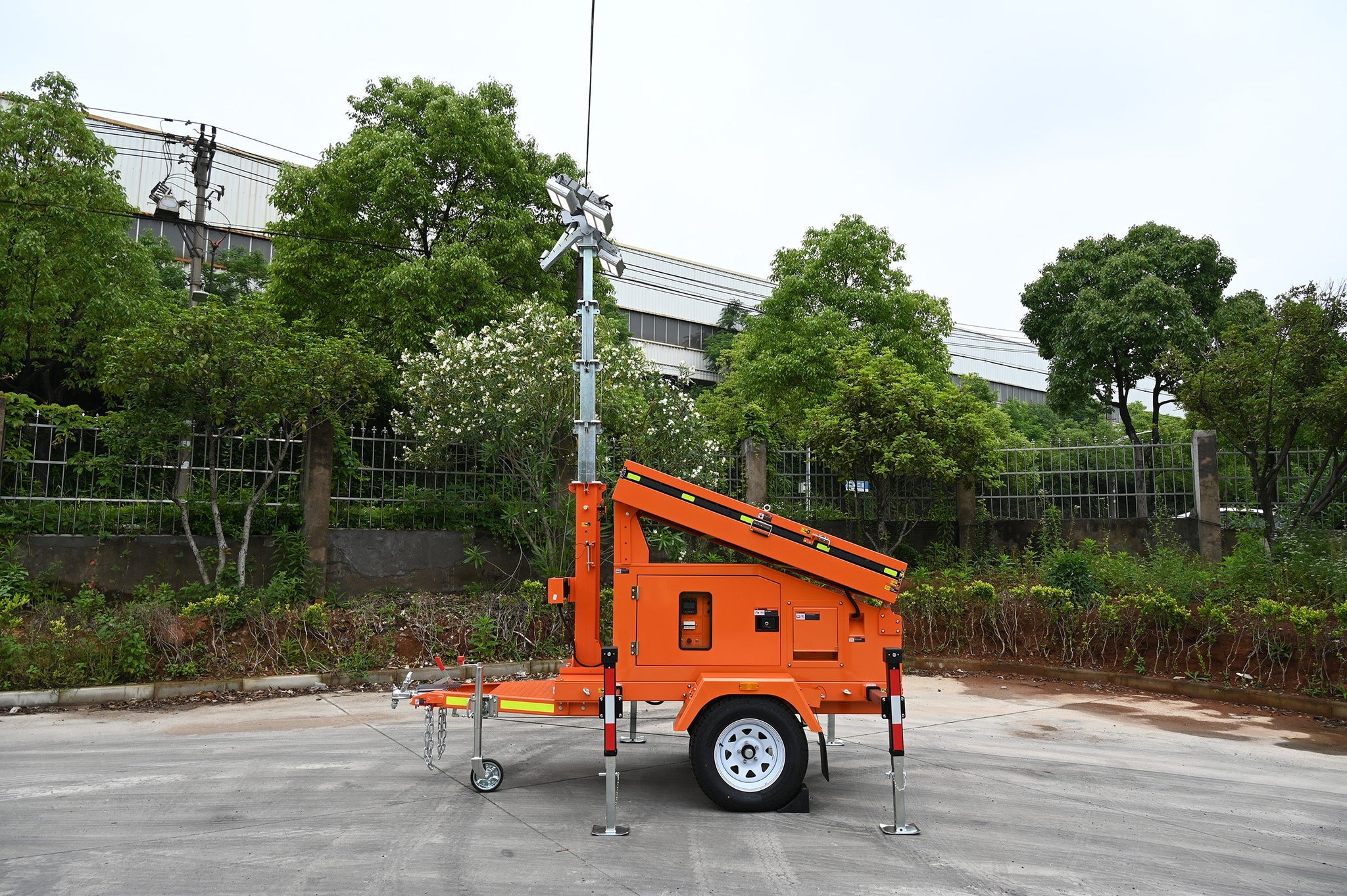

- High strength aluminum masts up to 30’ can support over 1200W of LED lighting, several surveillance cameras, or any range of options

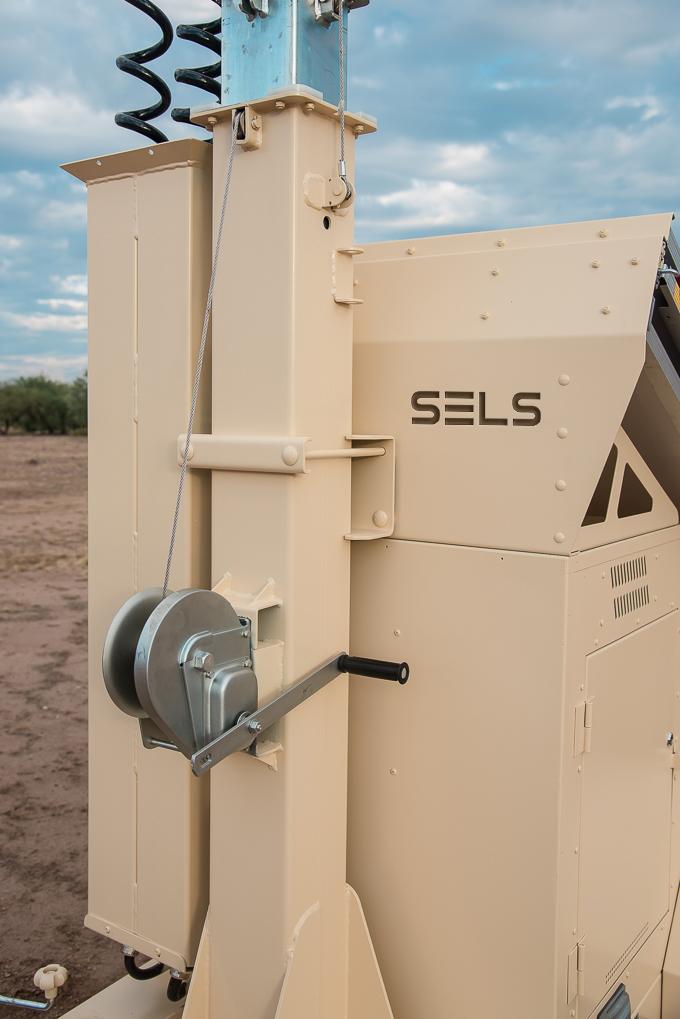

- Electric or hydraulic mast controls and directional light adjustment from the ground allow for fast setup
- Monitor system life and diagnostic notifications and setup automatic load control for near autonomous operation
|
Mobile Power Unit – Technical Specifications |
|||
|
PV Module |
|
Battery Power Storage |
|
|
Solar Charge and Lighting Controller |
|
Options |
|
|
Material Construction |
|
Towing |
|
|
Product Name |
MPU-22xx |
MPU-13xx |
MPU-14xx |
MPU-24xx |
MPU-26xx |
MPU-28xx |
|
|
Solar Panels |
2 |
3 |
4 |
4 |
6 |
8 |
|
|
Solar Power |
680 W |
1050 W |
1360 W |
1360 W |
2040 W |
2720 W |
|
|
Battery Max Capacity |
Up to 9,600 W-h |
14,400 W-h |
Up to 38,400 W-h |
||||
|
Battery Type |
Gel VRLA / LiFePO4 / NiMH |
||||||
|
Dimensions |
Closed / Towing * |
133" x 96" x 96" |
133" x 51" x 96" |
133" x 96" x 96" |
|||
|
Open / Operating |
133" x 96" x Mast Ht |
133" x 135" x Mast Ht |
133" x 166" x Mast Ht |
||||
|
Mast Height |
15', 20' |
15' |
20' |
25' |
30' |
35' |
|
|
Mast Operation |
Manual |
Electric |
Hydraulic |
||||
|
Axle |
Single |
Double |
|||||
|

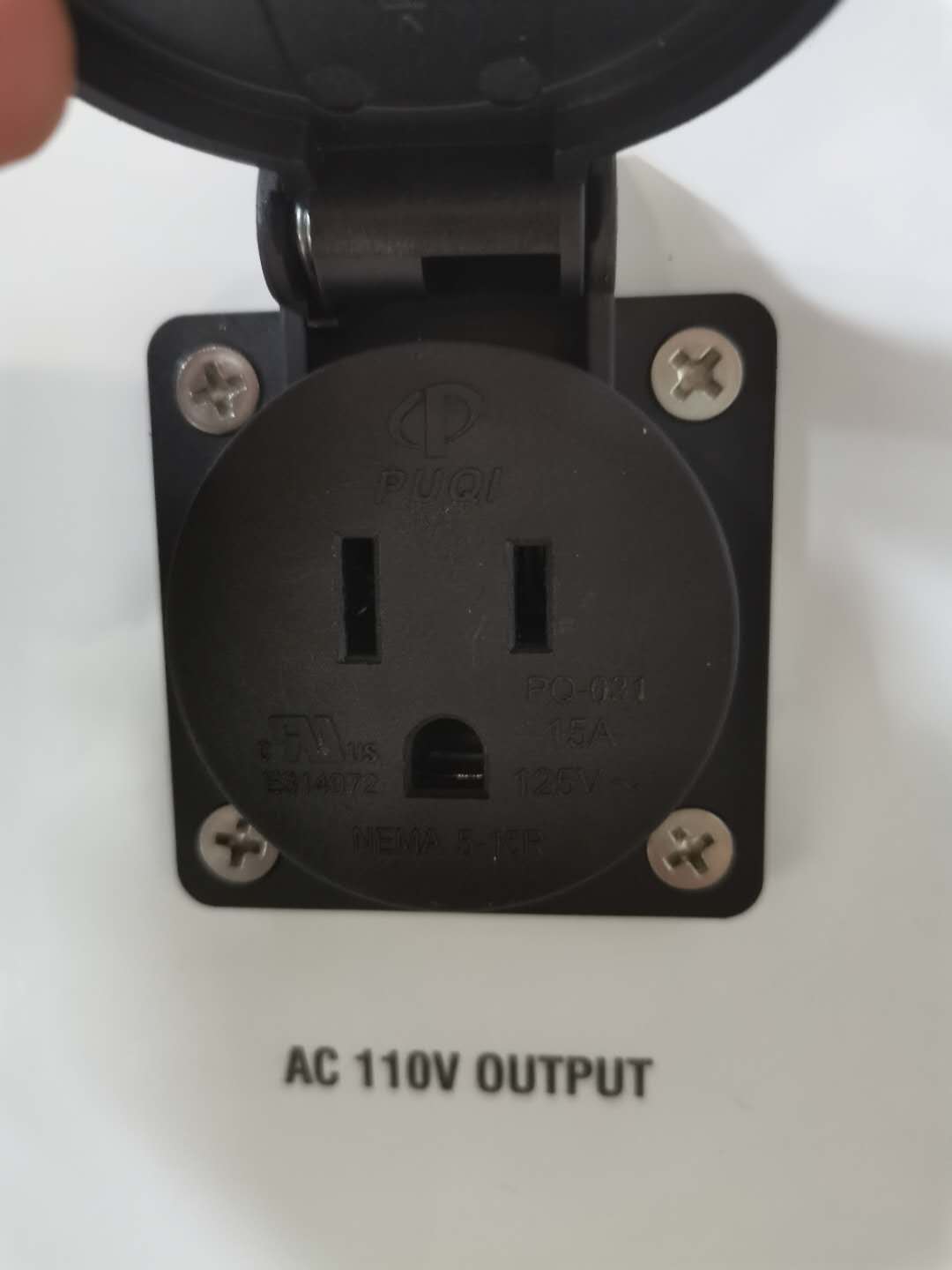

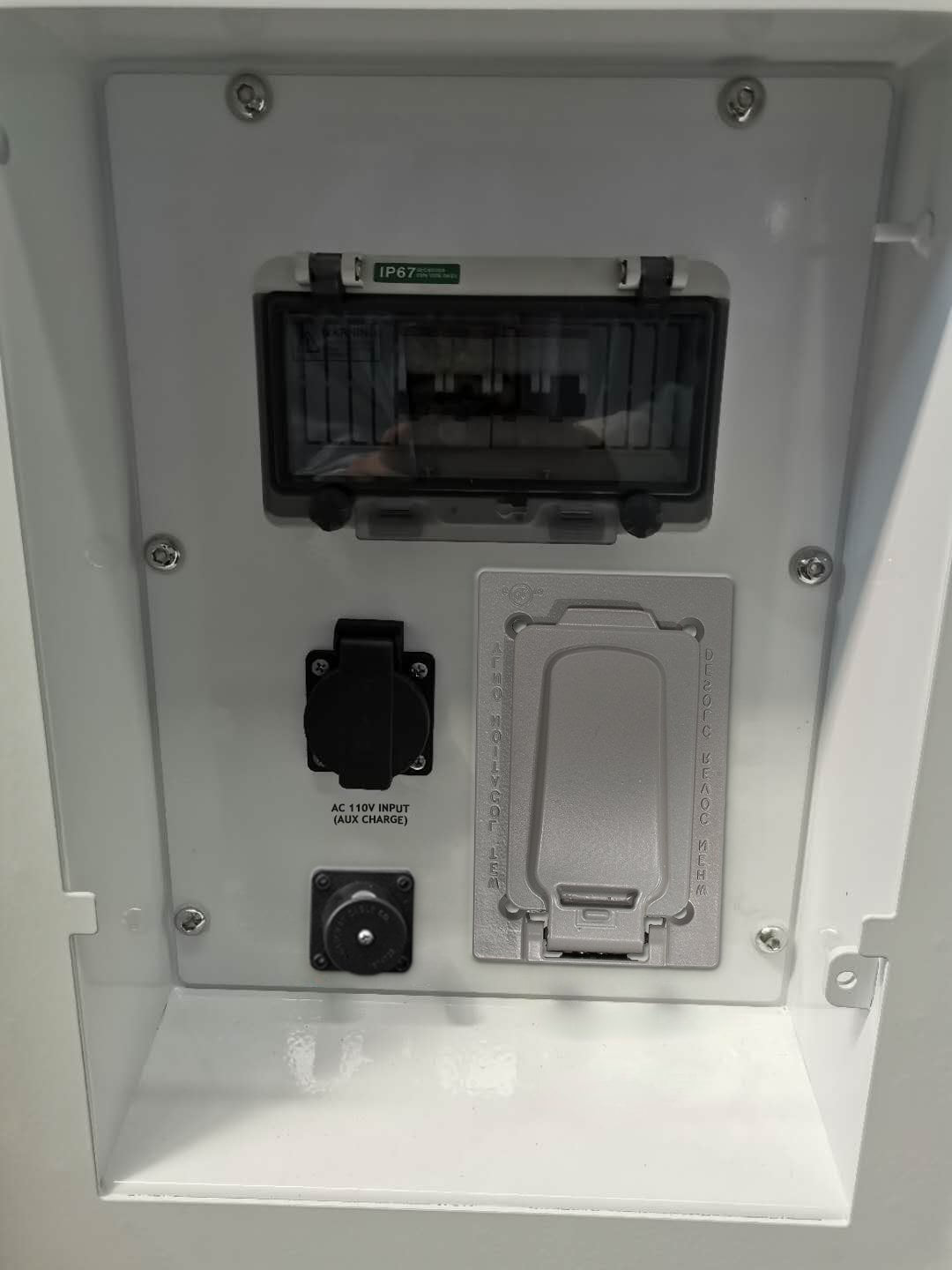

Receptacle Power Output |
120 VAC or 240 VAC, 12 - 96 VDC, 5 VDC USB |
||||||
|

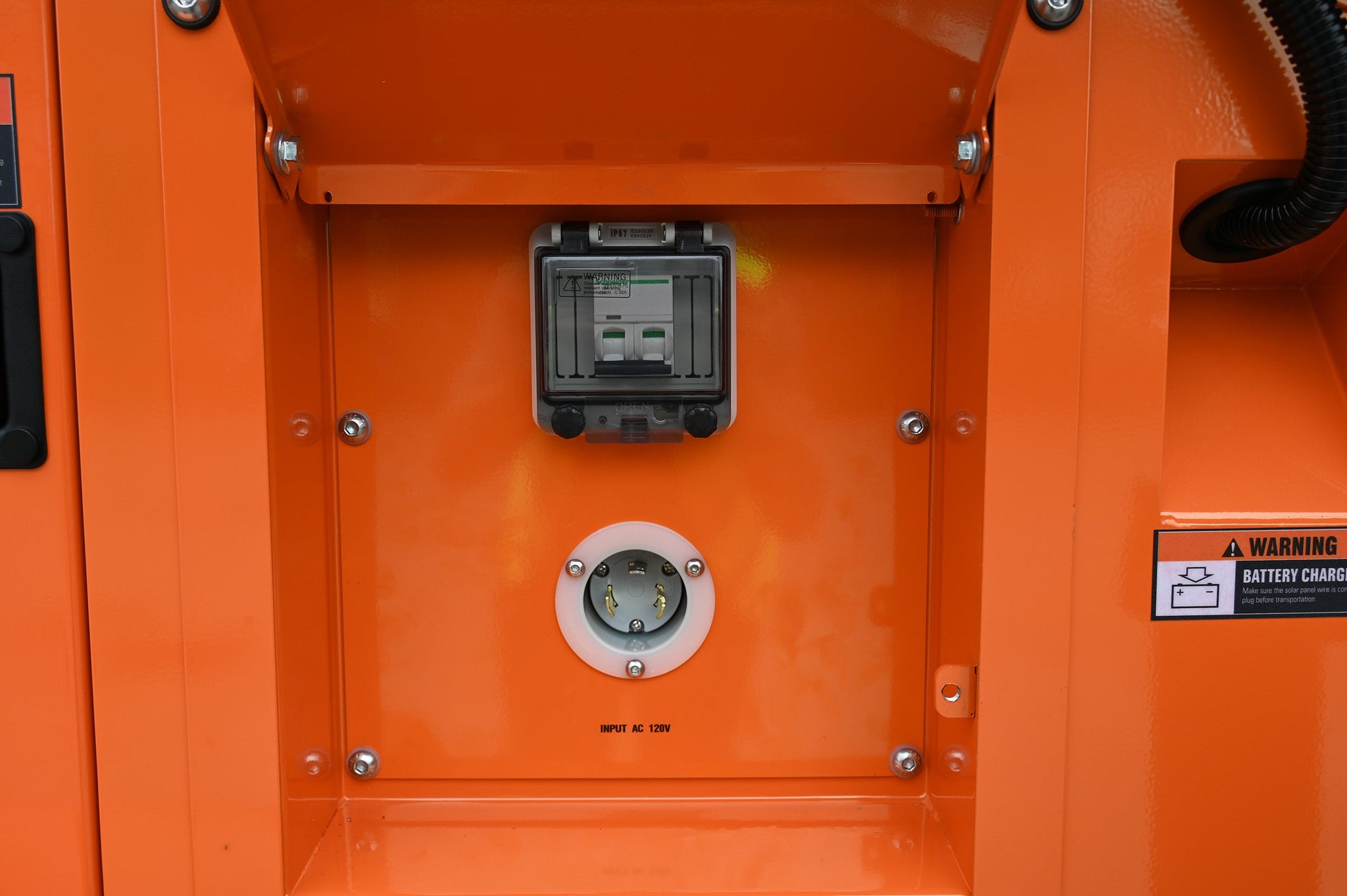

Charging Connector |
120VAC |
5-20R 20amp |
240VAC |
||||
|
Electronics Options |
LED Lighting, Surveillance System, Communications Equipment, Solar As Generator, Customization |
||||||
|
Towing Options |
2" Ball, 2-5/16" Ball, Lunette Ring |
||||||
|
Light Power |
Up to 200W |
Up to 400W (62,000 Lm) |
Up to 600W (93,000 Lm) |
Up to 800W (124,000 Lm) |
Up to 1200W (186,000 Lm) |
||
|
Solar Tilt Angle |
0° - 50° from Horizontal |
||||||
|
Towing Weight |
1,650 lbs |
2,550 lbs |
2,650 lbs |
3,200 lbs |
4,200 lbs |
5,500 lbs |
|
|
|
|
|
|
* Removable tongue reduces overall length by about 42" |
|||
Contact us for customization questions and to explore site monitoring / safety and security possibilities for your application.
