SightLine™ Modular Solar Transit Shelter

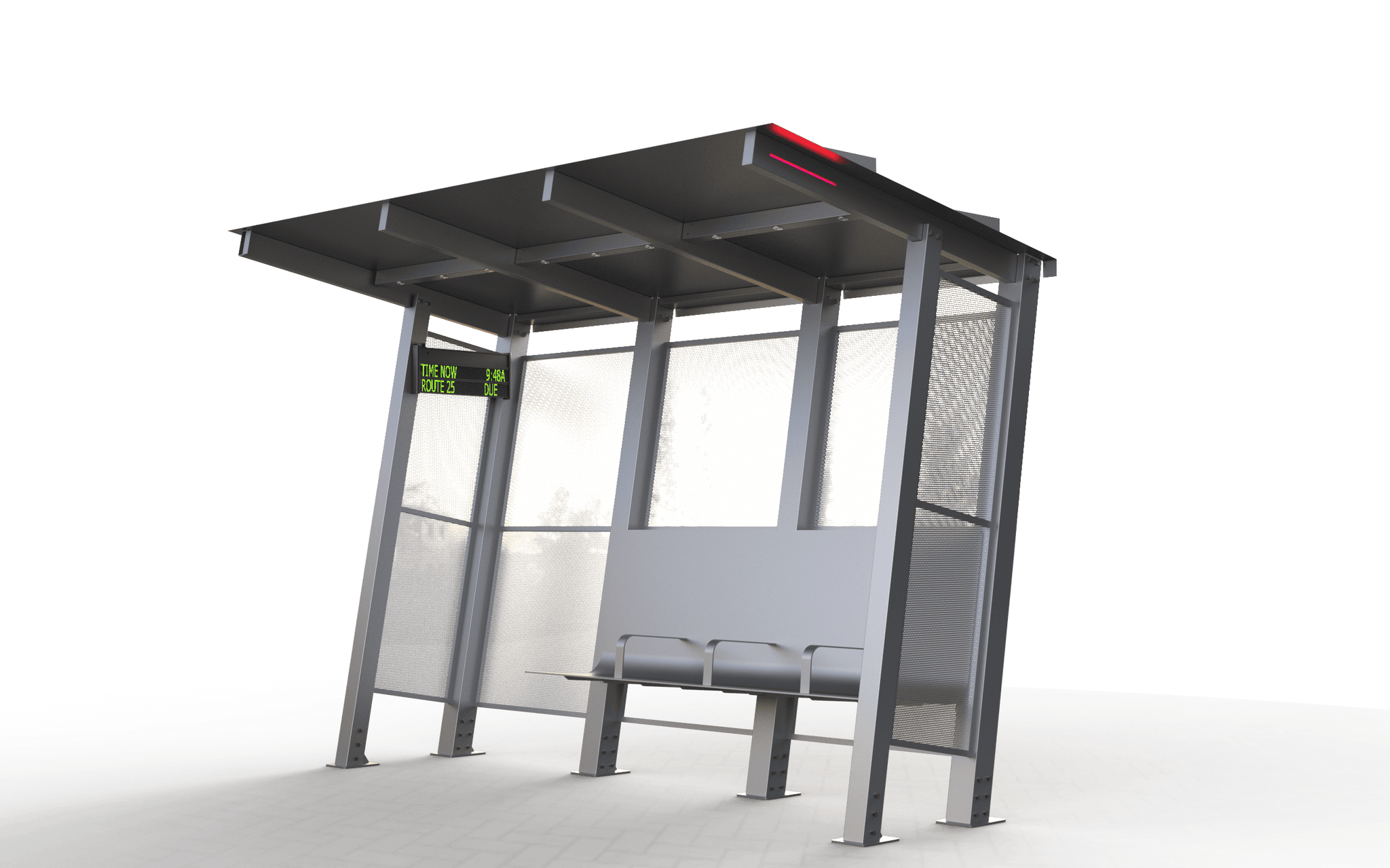

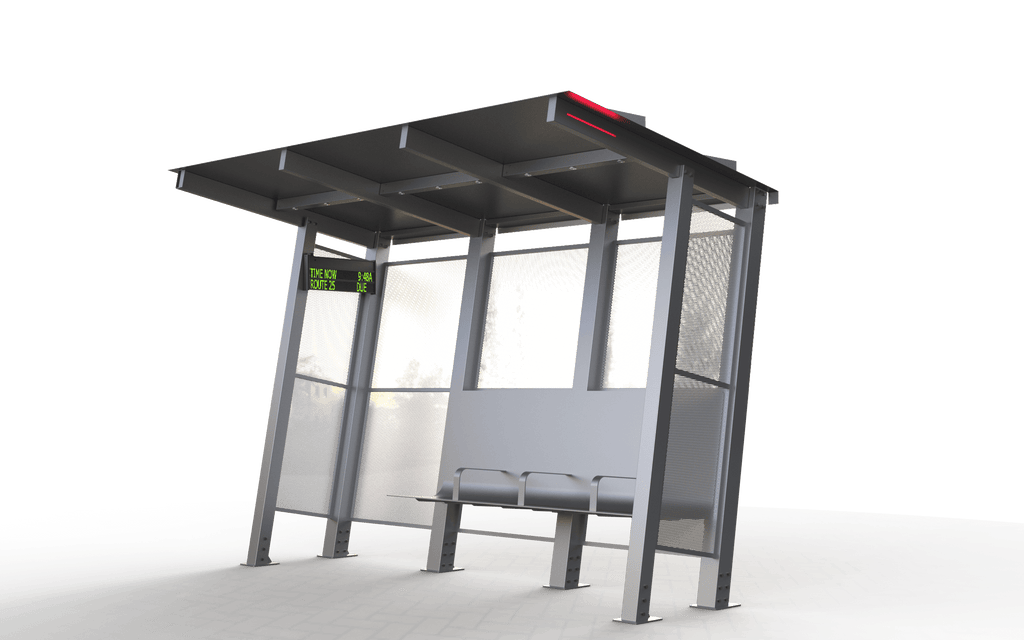

The SightLine™ Shelter by SELS Solar reimagines public transit infrastructure through a combination of contemporary architectural design, renewable energy technology, and intelligent passenger-focused features. Designed around a distinctive leaning cantilever structure, the SightLine creates an open, highly visible, and inviting environment while maintaining the durability and functionality required for modern transit systems.

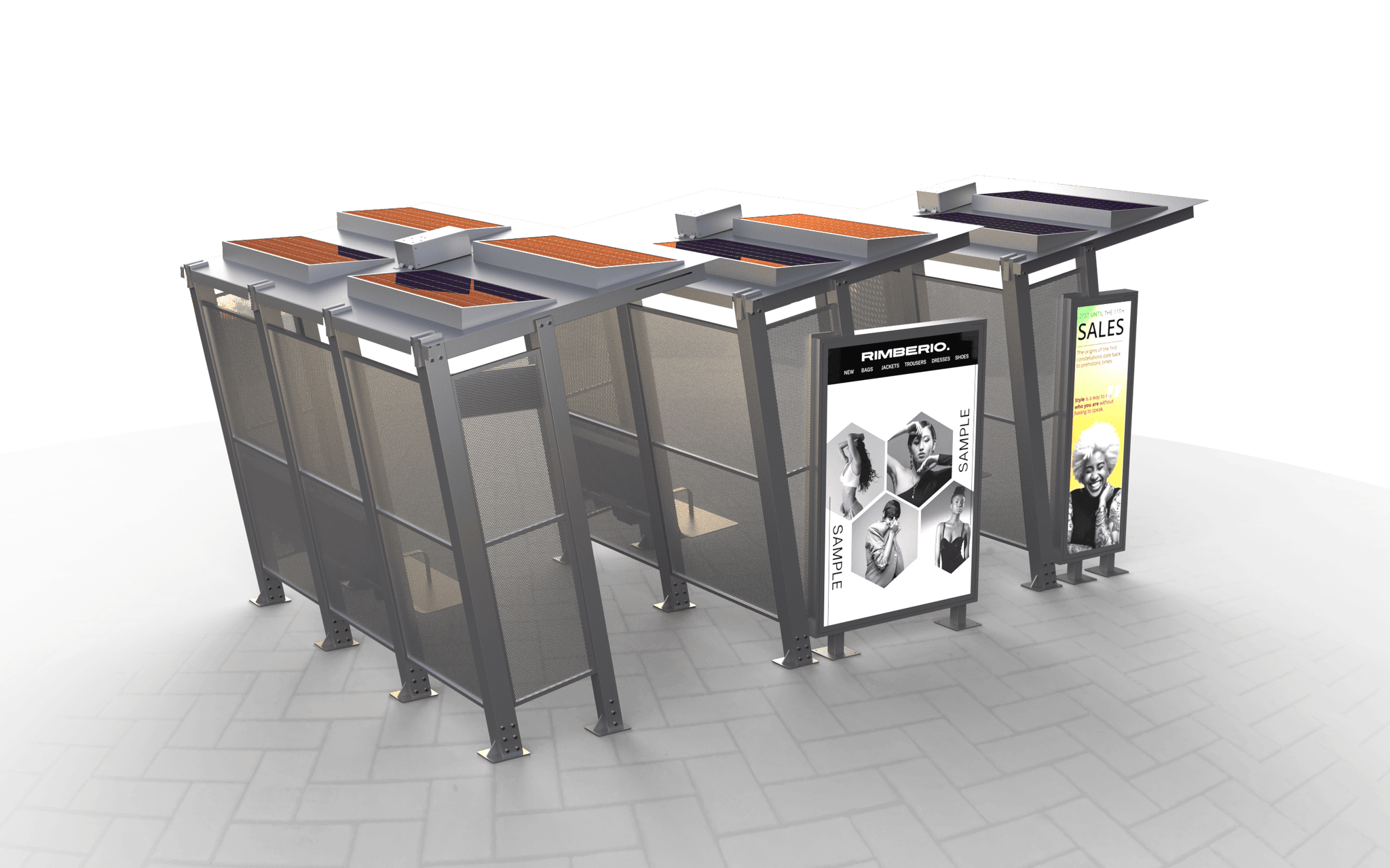

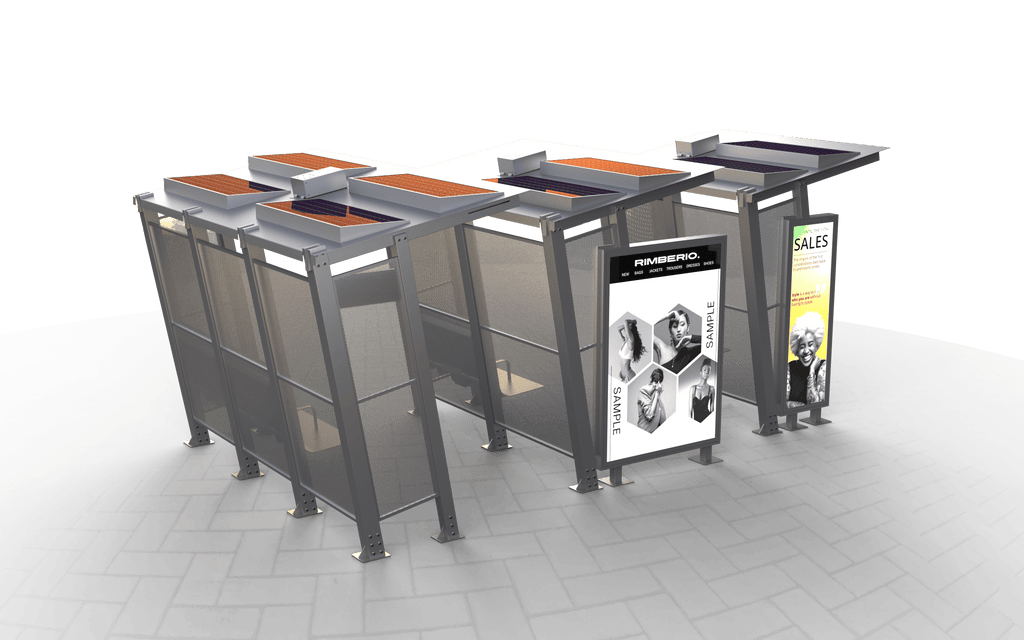

Powered entirely by integrated solar generation, the SightLine Shelter delivers reliable off-grid operation for lighting, passenger information systems, and safety features without requiring utility connections. Its modular architecture allows transit agencies, municipalities, campuses, and transportation authorities to configure shelters of virtually any length, creating scalable infrastructure solutions tailored to their specific operational needs.

The shelter features structurally integrated LED lighting that provides consistent illumination throughout the passenger environment while minimizing light pollution. An ADA-compliant passenger activation system incorporates visual and audible confirmation and activates a secondary driver notification lighting system, improving accessibility and reducing accidental passenger pass-bys during low-light conditions.

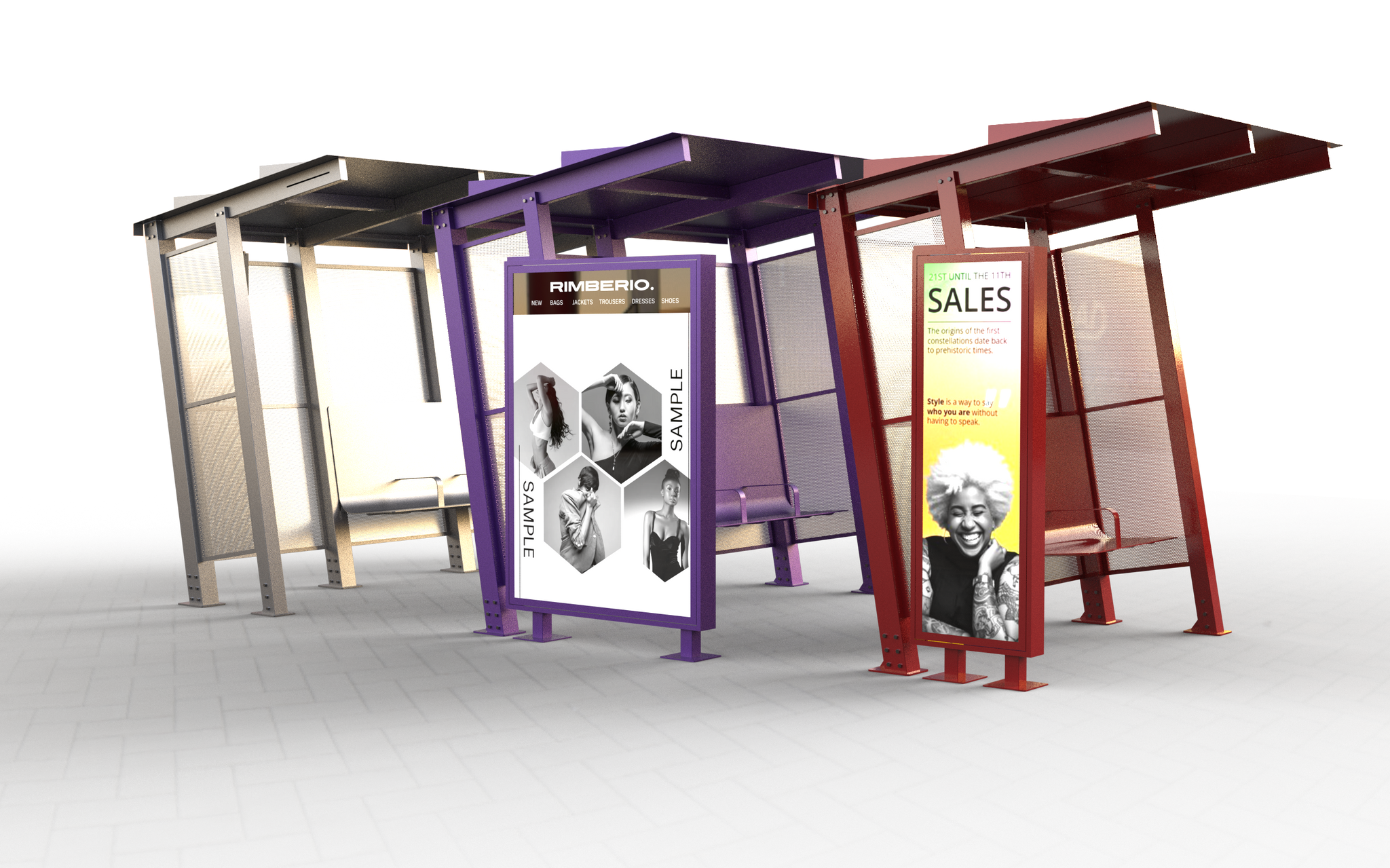

Designed with passenger comfort and operational efficiency in mind, the SightLine incorporates integrated advertising displays, live transit information systems, customizable seating options, and optional wireless connectivity. Hidden battery management systems, anti-graffiti coatings, and vandal-resistant construction ensure long-term performance while preserving the shelter's clean architectural appearance.

Designed and manufactured in the United States, the SightLine Shelter represents the next evolution of sustainable transit infrastructure—combining architectural refinement, renewable energy, and intelligent transportation technology into a single modular platform.

Product Specifications

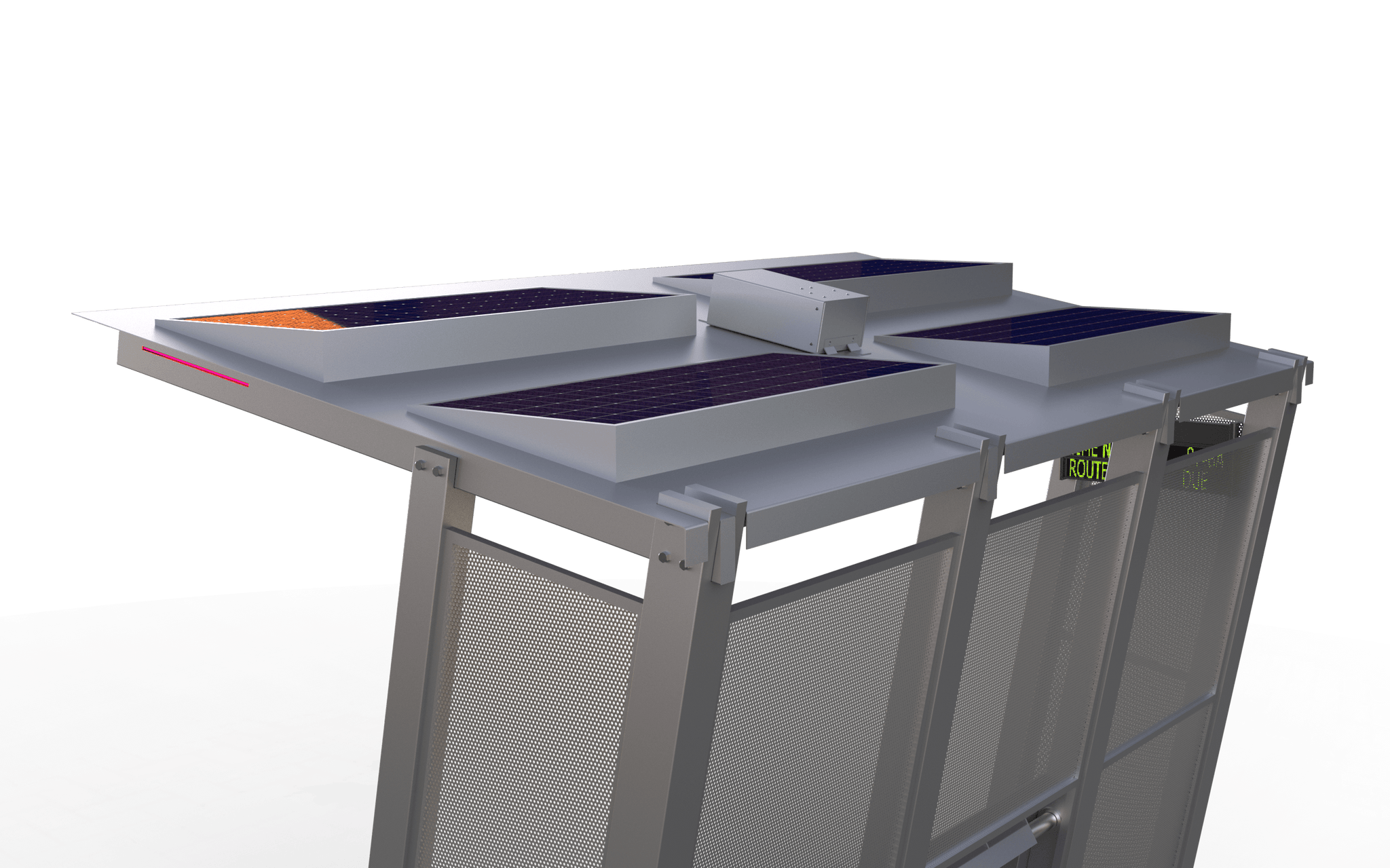

Solar Generation

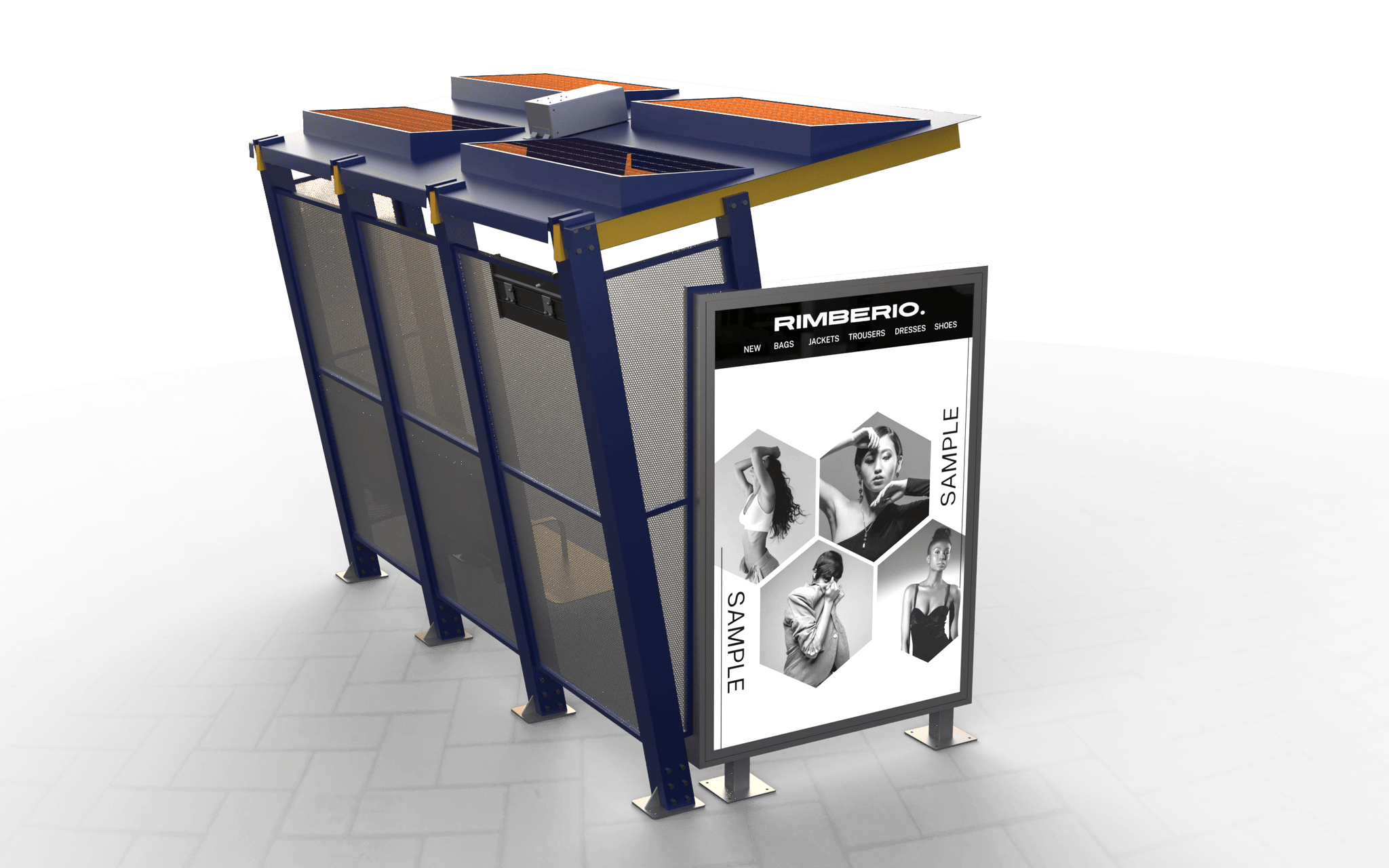

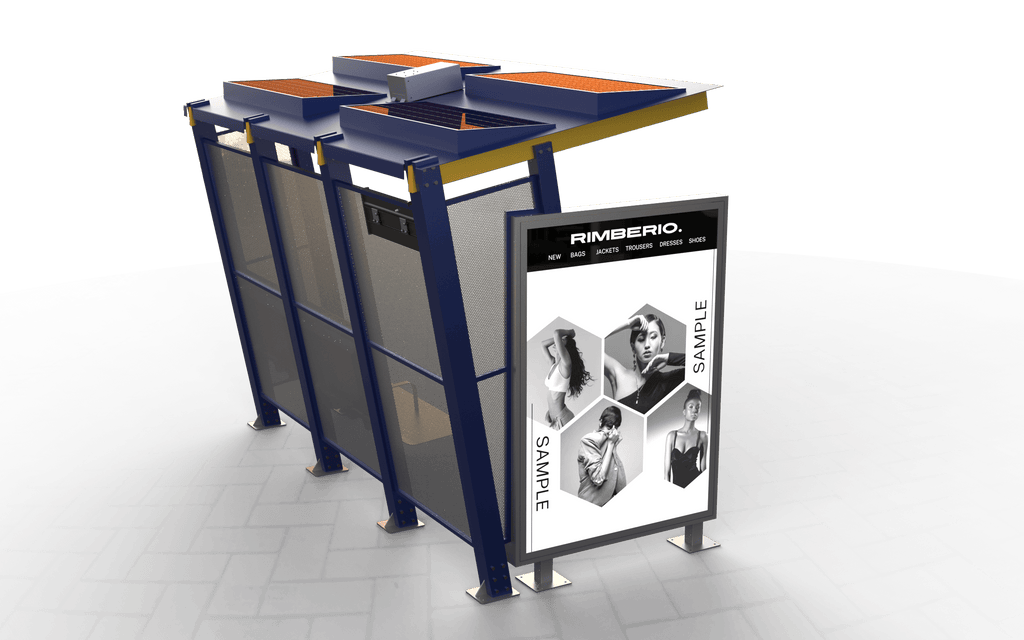

• 400W–800W monocrystalline solar panel systems

• Solar conversion efficiency up to 19.4%

• Grade-A photovoltaic modules

• Up to 25-year solar panel lifespan

• MPPT smart charge controller with up to 97% charging efficiency

Structure

• Architectural aluminum and stainless steel construction

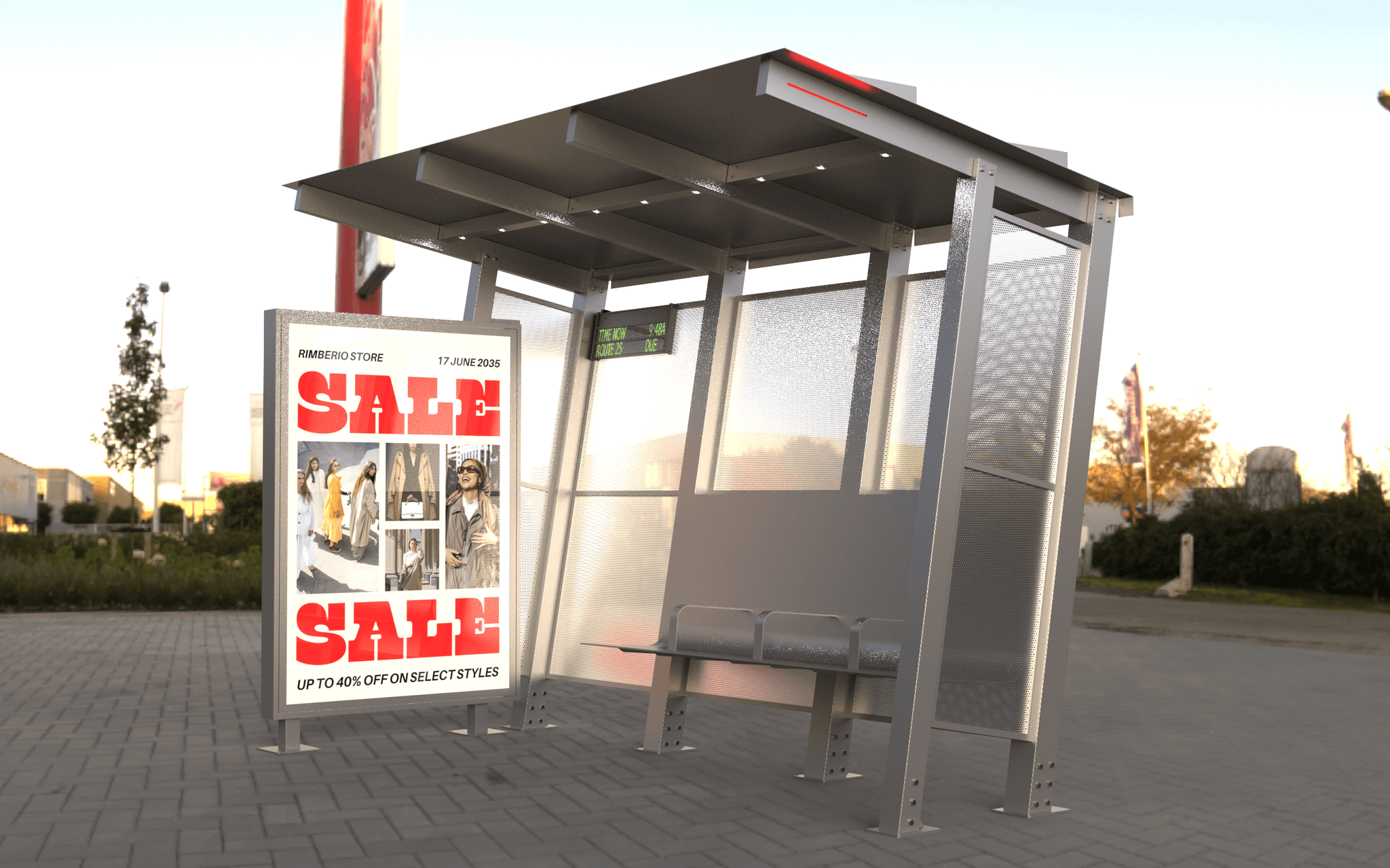

• Signature leaning cantilever design

• Anti-graffiti powder-coated finish

• Concrete surface-mounted structural beams

• 18-gauge perforated steel panel system

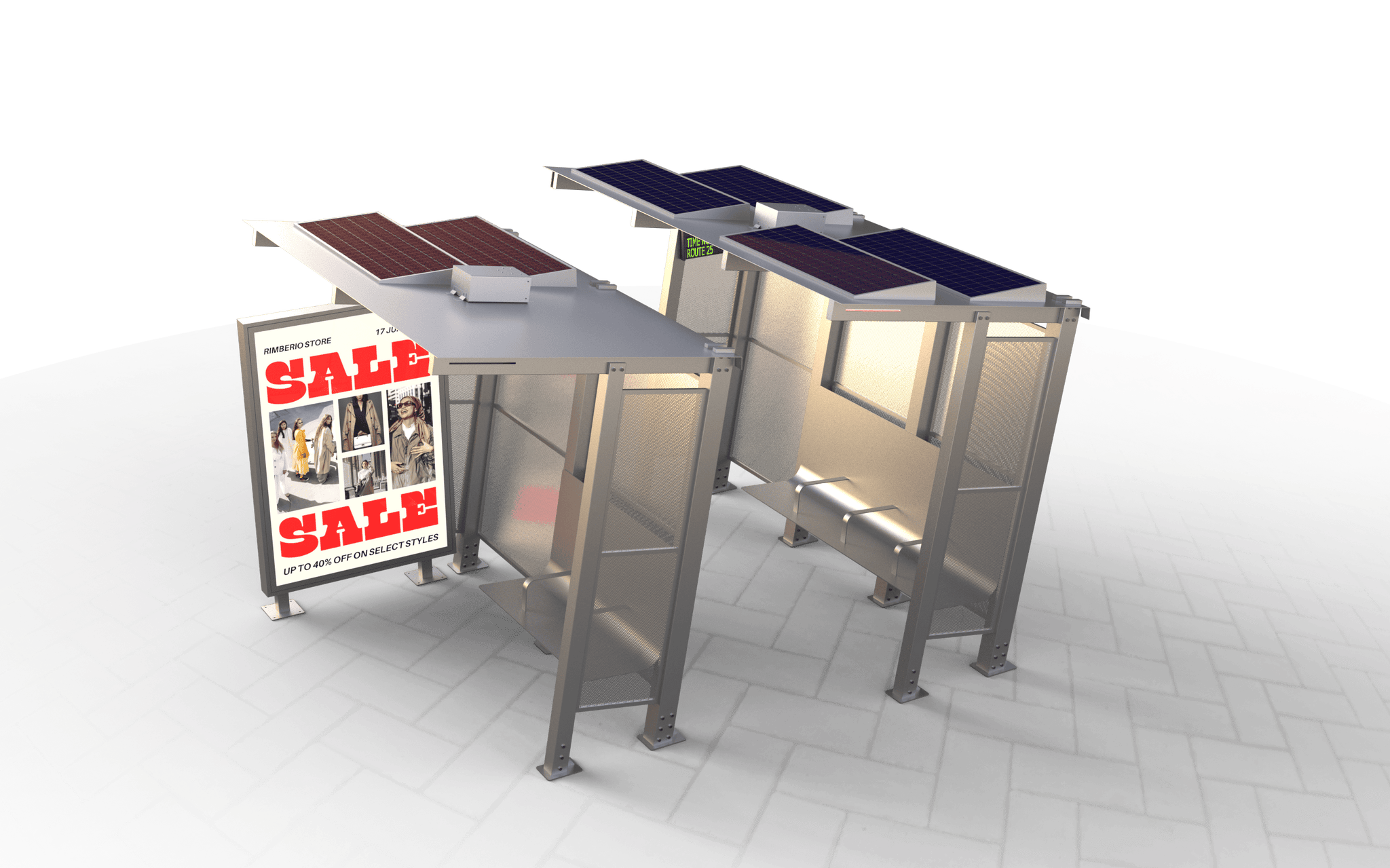

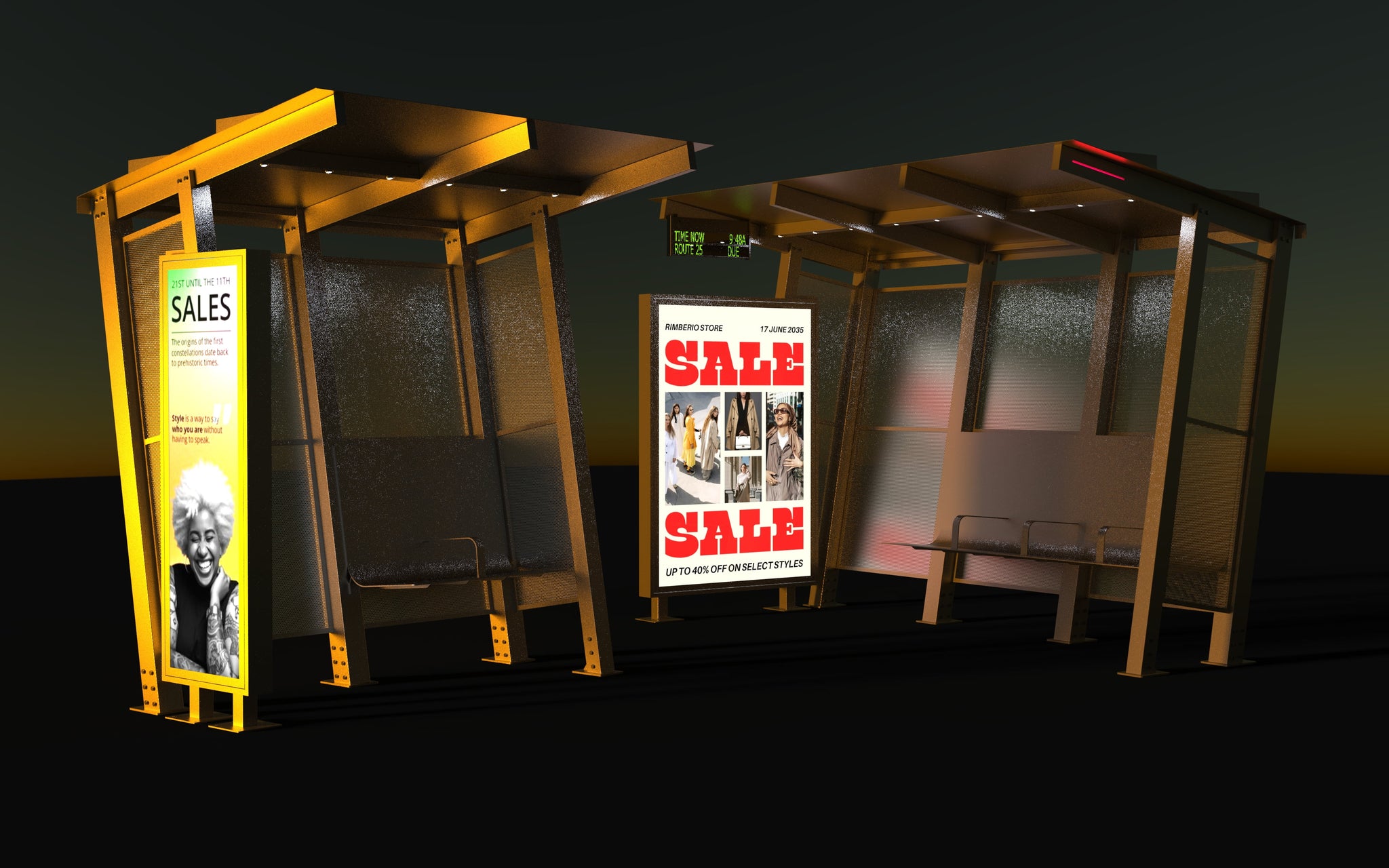

• Fully modular and expandable architecture

Lighting System

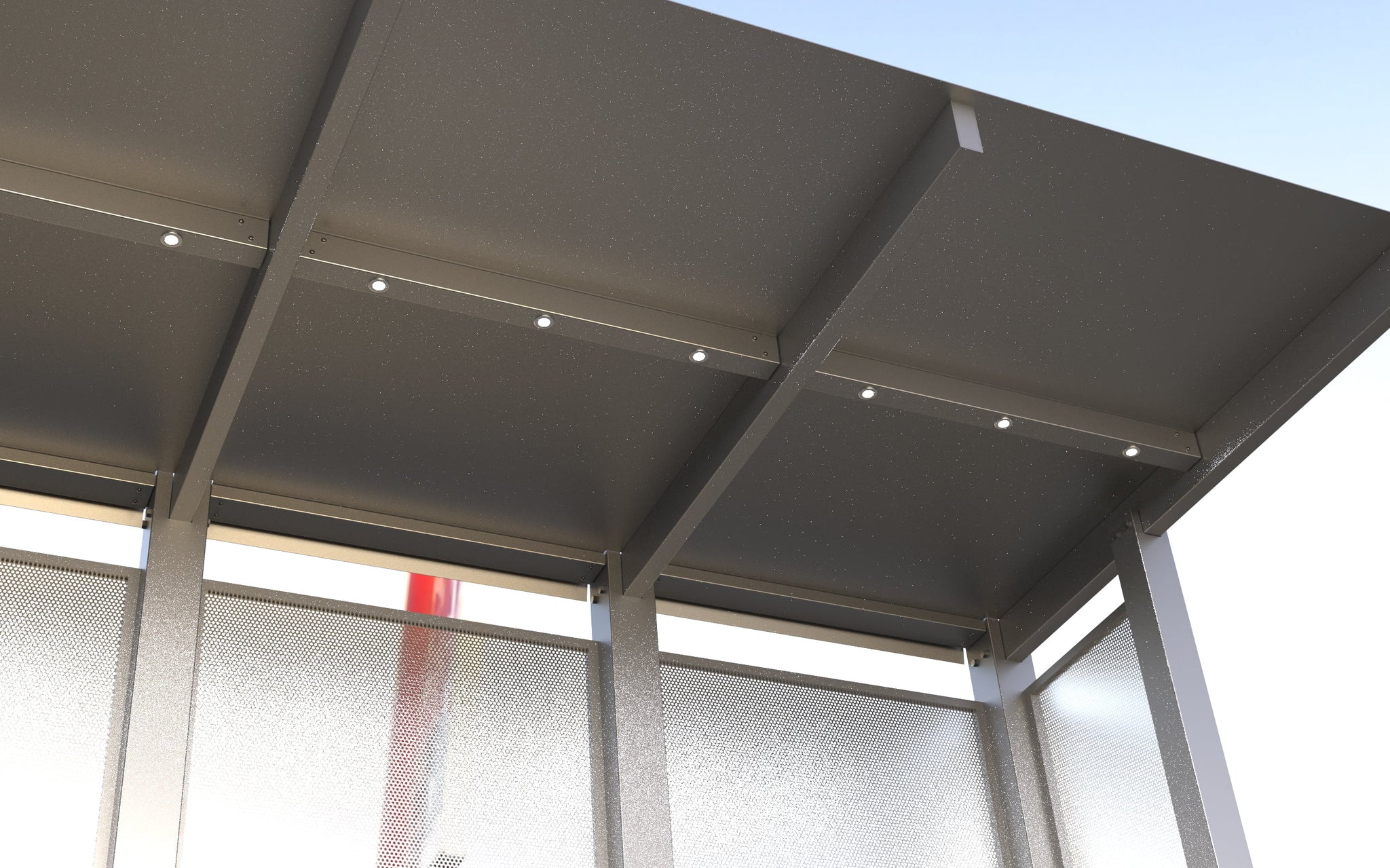

• Structurally integrated LED illumination

• 600–4,500 lumen output options

• Up to 150 lumens per watt efficacy

• Color temperature options from 2200K–5000K

• Fully programmable dimming schedules

• Multiple light distribution patterns available

• Automatic dusk-to-dawn operation

Energy Storage

• High-performance LiFePO₄ battery technology

• Integrated Battery Management System (BMS)

• Up to 1,536 Wh storage capacity

• More than 2,500 charge cycles

• Up to 5+ days autonomous operation

Passenger Safety Features

• ADA-compliant passenger activation button

• Audible and visual passenger confirmation

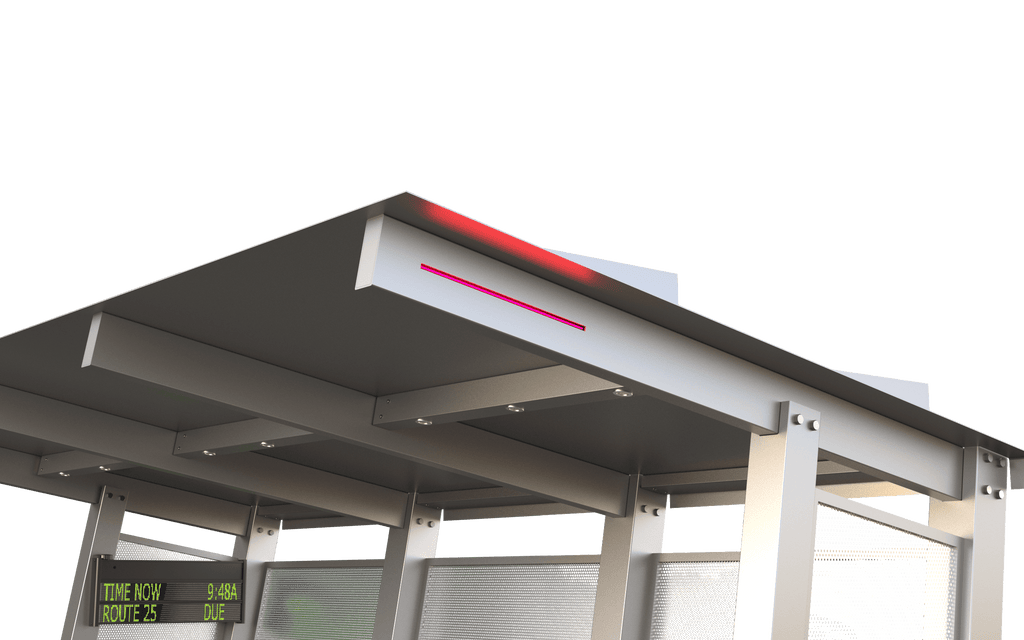

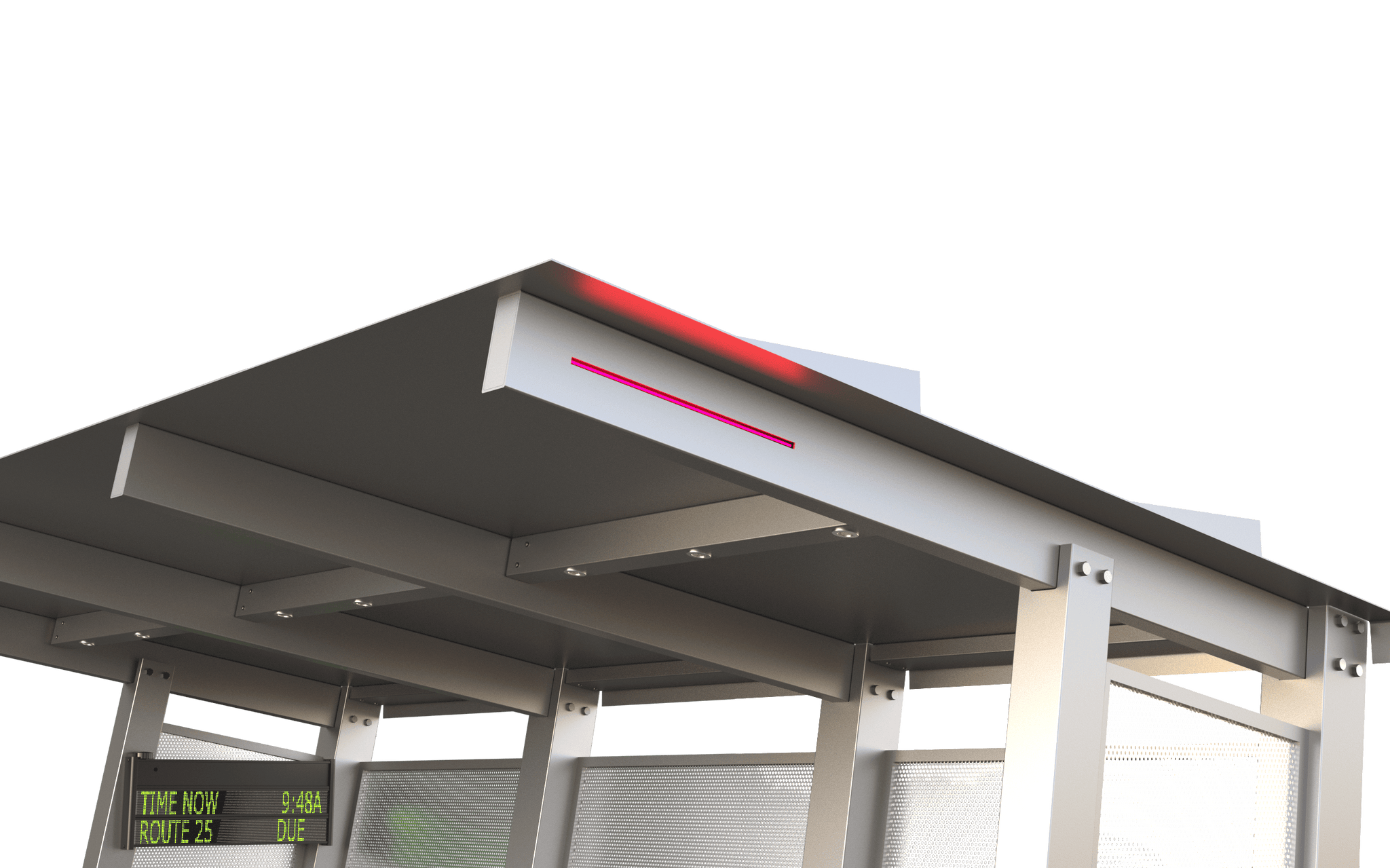

• Secondary driver notification lighting system

• Enhanced nighttime visibility

• Optional occupancy and motion sensing

Passenger Amenities

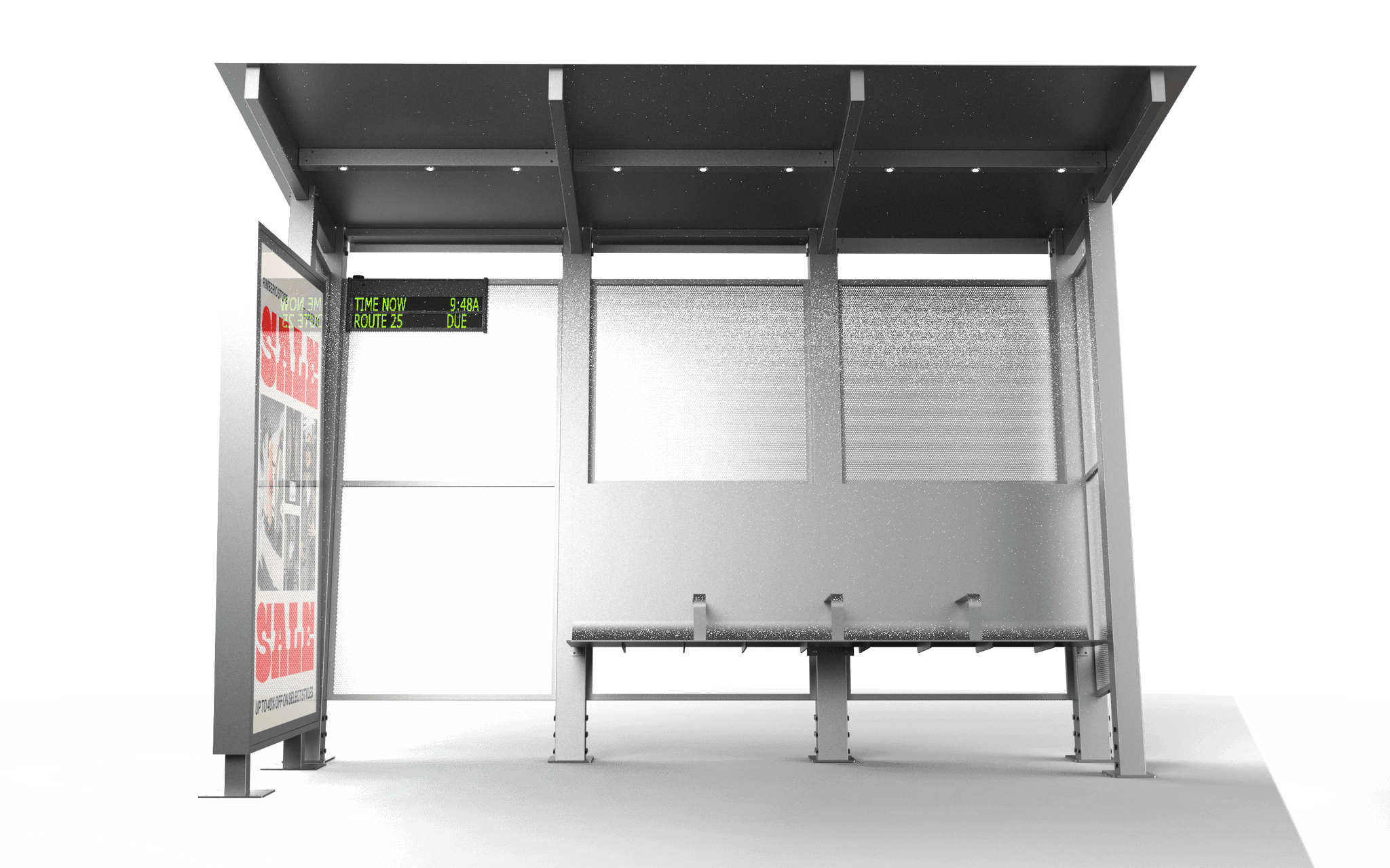

• Live transit information display capability

• Integrated dual-sided advertising displays

• Fully customizable bench seating

• Floating bench configurations available

• Optional Wi-Fi and user connectivity

• Web-based monitoring and diagnostics

System Monitoring

• Bluetooth (BLE), LoRa, and IR communication options

• Remote diagnostics and system monitoring

• Programmable operating parameters

• Real-time power consumption monitoring

Environmental Performance

• IP66 weather-resistant electronic systems

• Operating temperatures from -10°C to 75°C

• Waterproof plug-and-play electrical connections

• Vandal-resistant construction

• Anti-graffiti protective coating

Design Advantages

• Open architectural profile improves passenger visibility and safety

• Leaning cantilever structure maximizes usable passenger space

• Modular expansion capability allows shelters of virtually unlimited length

• Hidden battery and controller compartments simplify maintenance

• Fully off-grid operation eliminates utility infrastructure costs

• Integrated advertising opportunities create potential revenue streams

• Contemporary architectural aesthetic enhances urban environments

The SightLine Shelter demonstrates how modern public infrastructure can successfully combine sustainability, accessibility, safety, and architectural excellence. Through its modular design, intelligent lighting systems, and renewable energy integration, the SightLine creates a future-ready transit environment that elevates both the passenger experience and the visual identity of public transportation systems.
