ArcOne™ Modular Solar Transit Shelter

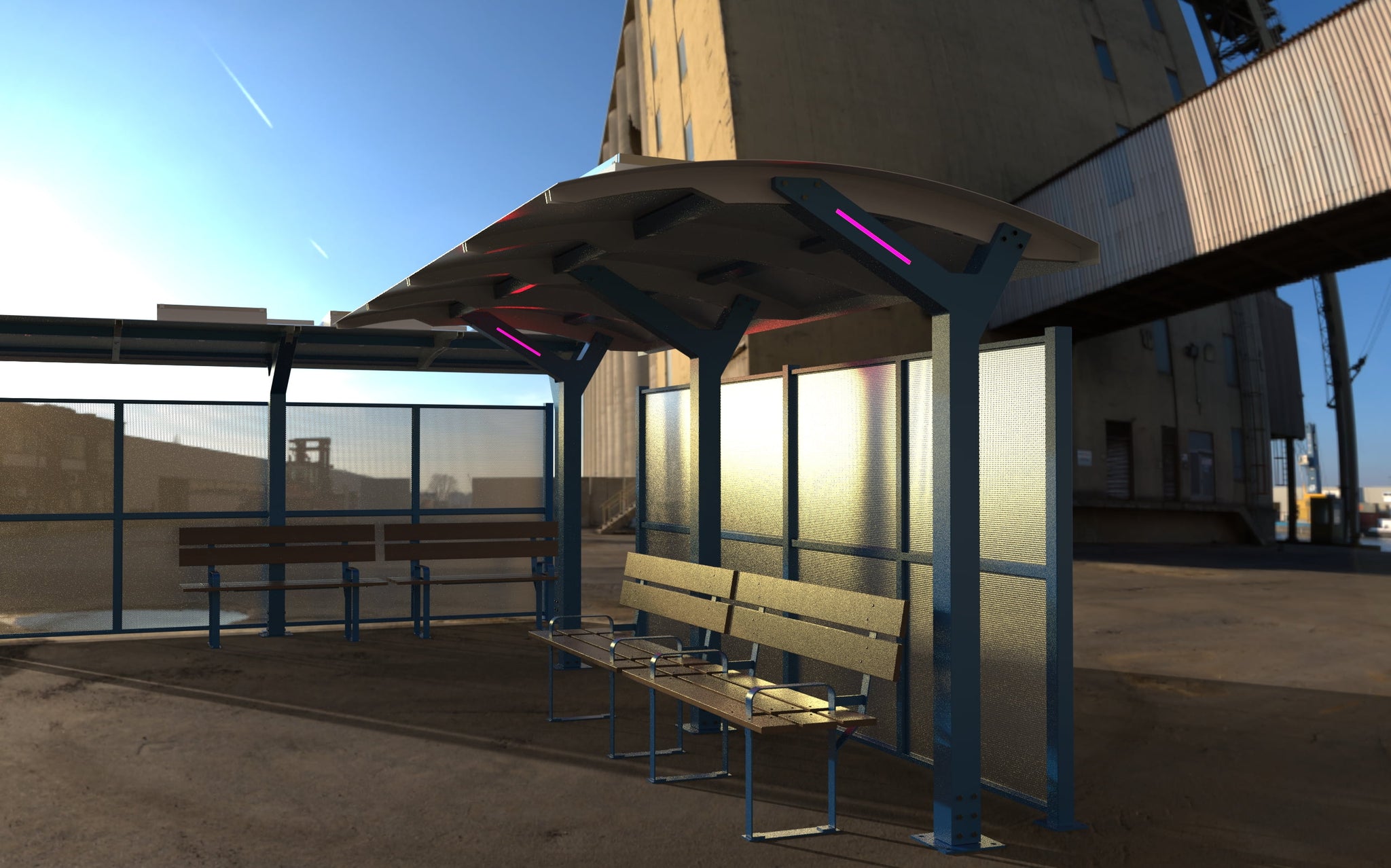

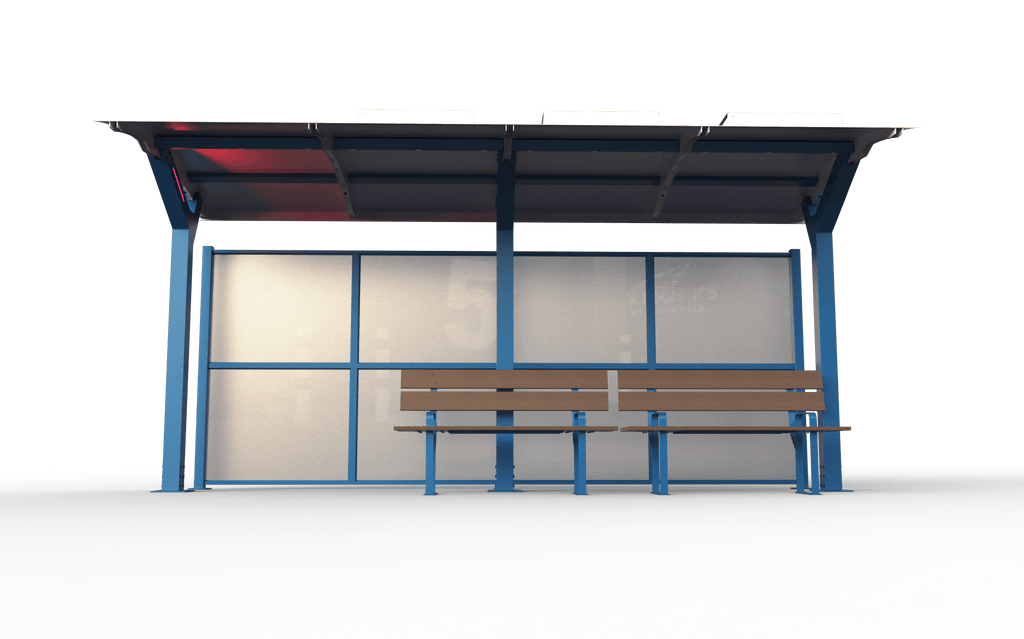

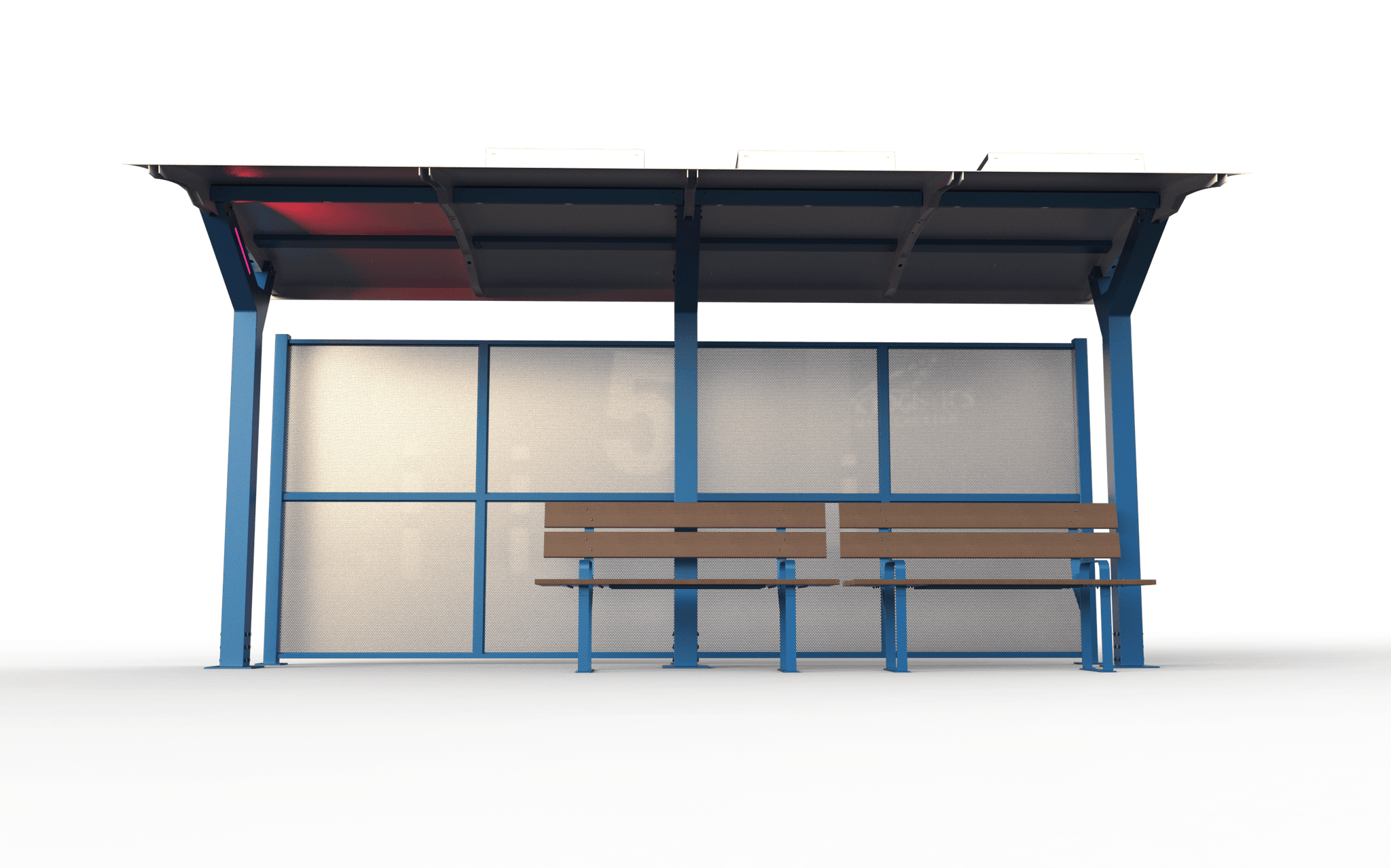

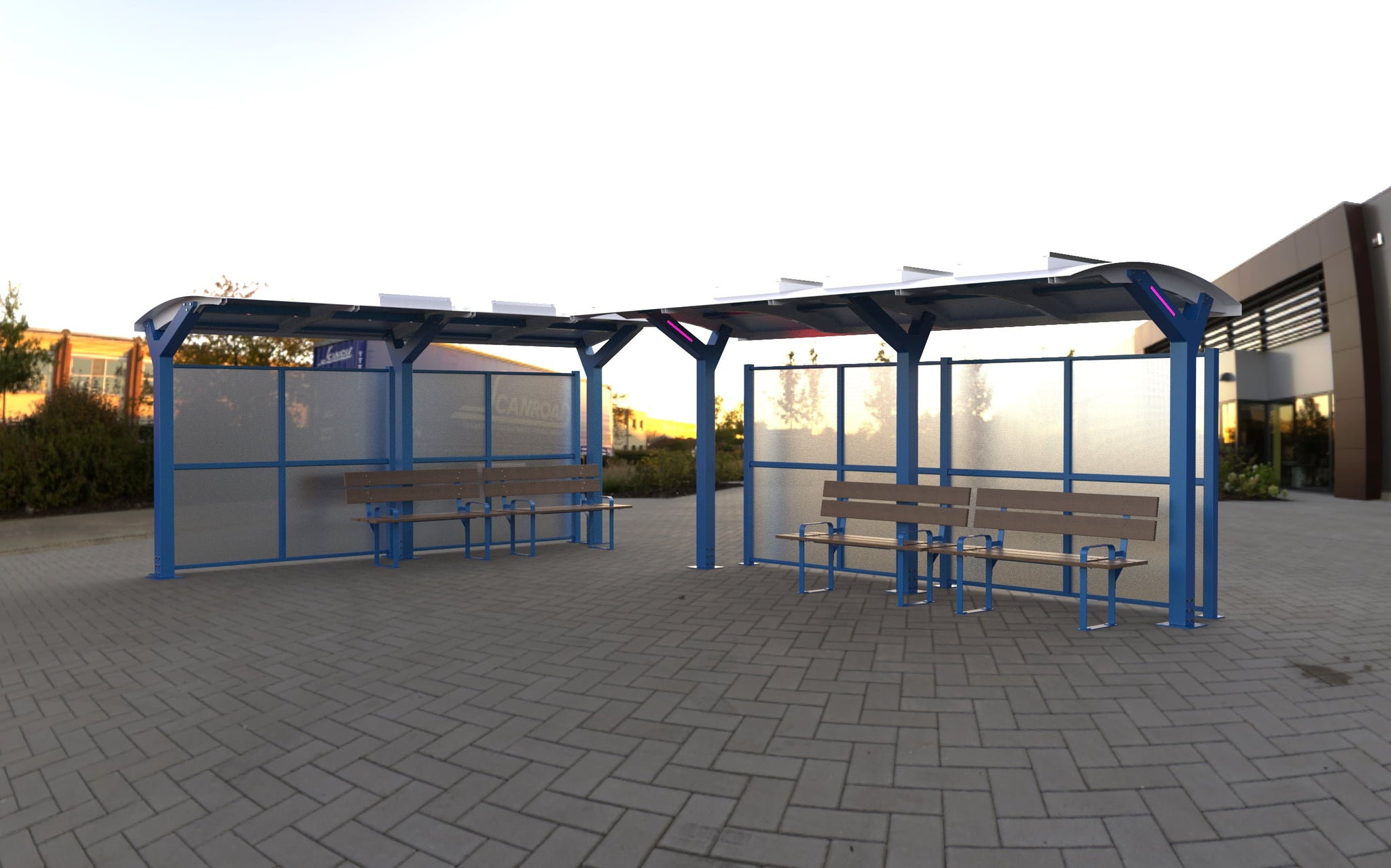

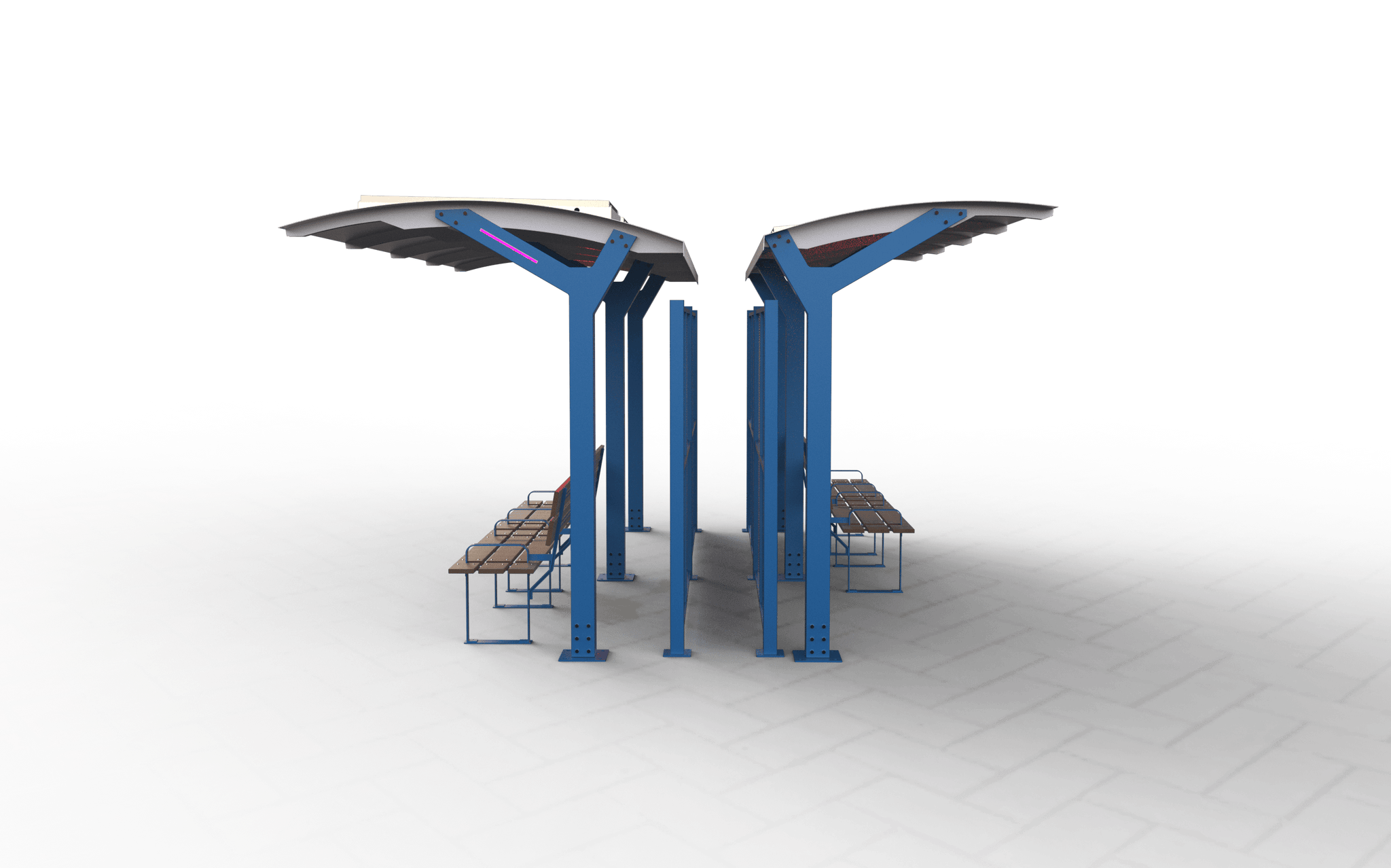

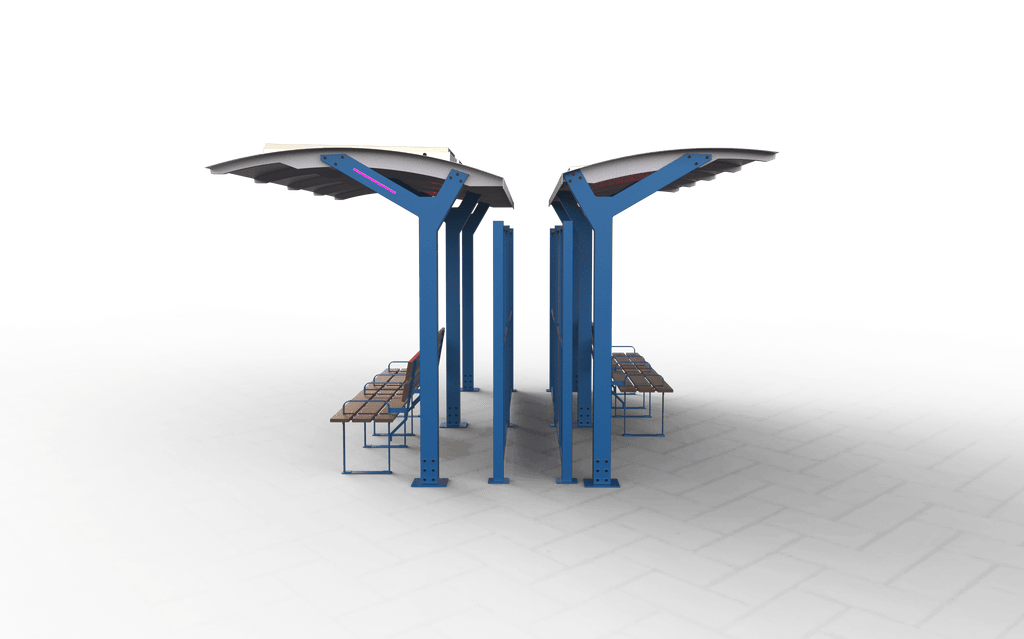

SELS Solar proudly presents the ArcOne™ Shelter, a next-generation modular solar transit shelter system designed to redefine the modern passenger experience. Combining contemporary architectural design with advanced off-grid technology, the ArcOne features a distinctive cantilever structure that maximizes usable space while providing superior protection from sun, wind, and rain.
Engineered for today's transit networks, the ArcOne integrates high-efficiency solar generation, intelligent LED lighting, passenger safety systems, and customizable advertising opportunities into a single, scalable platform. Structurally integrated lighting provides reliable illumination throughout the night, while the ADA-compliant passenger activation system utilizes illuminated and audible confirmation to alert approaching transit operators of waiting passengers, reducing accidental pass-bys and improving accessibility.
The ArcOne's modular architecture allows shelters to be configured in multiple lengths and widths to accommodate virtually any transit environment, from urban streetscapes and university campuses to municipal transportation hubs. Hidden battery management systems, anti-graffiti finishes, vandal-resistant construction, and optional connectivity features ensure long-term durability while maintaining a clean, contemporary appearance.
Designed, engineered, and manufactured in the United States, the ArcOne Shelter delivers sustainable infrastructure without compromising aesthetics, passenger comfort, or operational performance.
Product Specifications

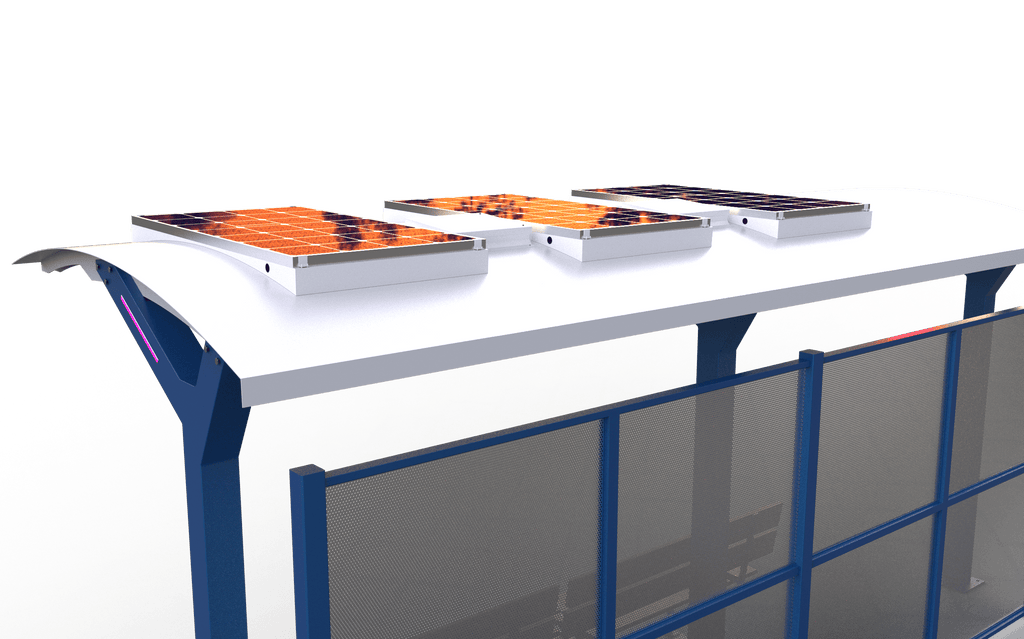

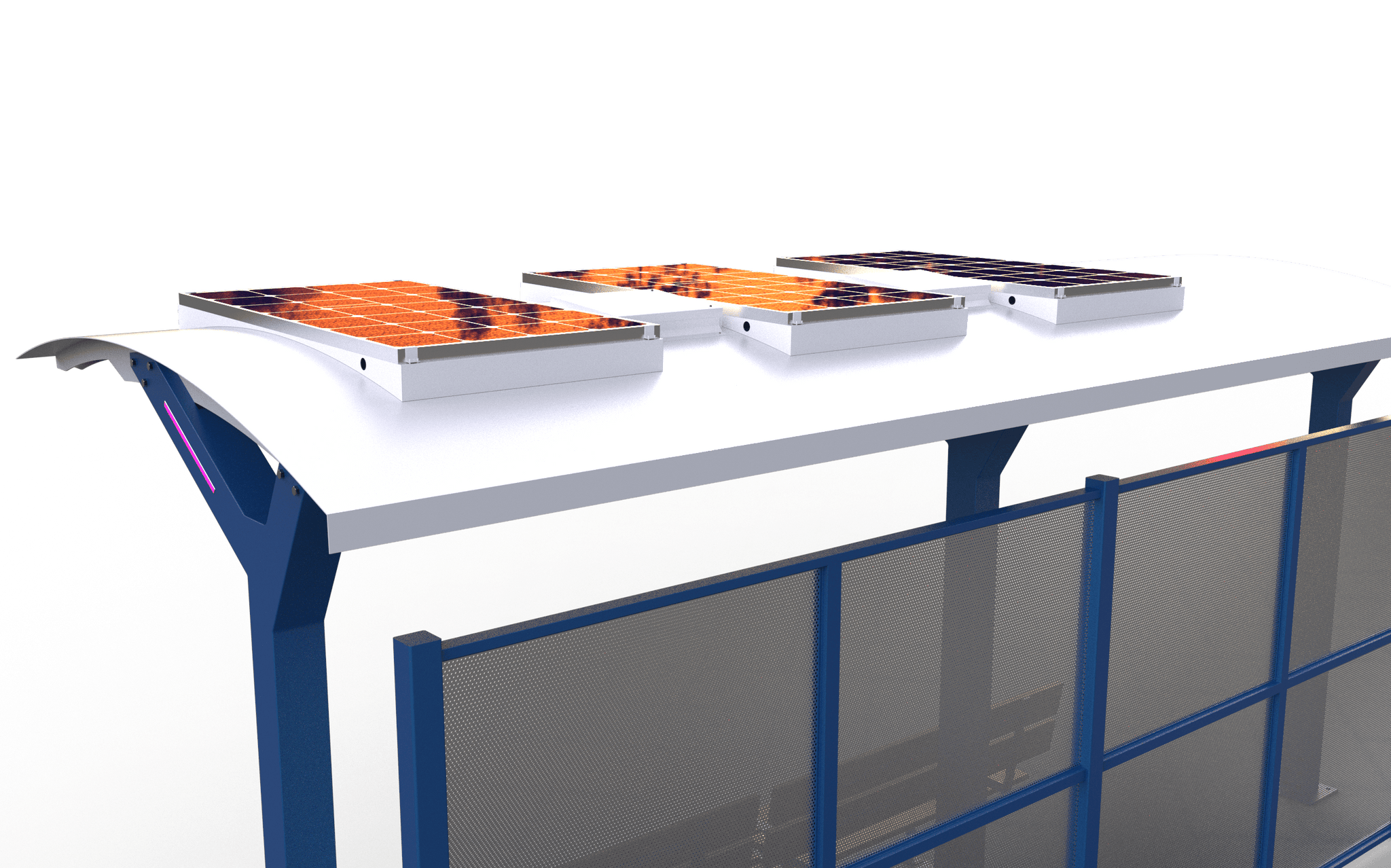

Solar Generation:
-
200W–600W Monocrystalline Solar Panels
-
Up to 25-year panel lifespan
-
High-efficiency MPPT charge controller technology
Structure:
-
Architectural-grade aluminum extrusions
-
304 stainless steel structural components
-
Powder coating available in custom colors
-
Anti-graffiti protective finish
Lighting System:
-
Integrated structural LED lighting
-
600–4,500 lumen output options
-
Up to 150 lumens per watt efficacy
-
Available color temperatures: 2200K–5000K
-
Fully programmable dimming schedules
Energy Storage:
-
High-performance LiFePO₄ battery technology
-
Integrated Battery Management System (BMS)
-
Over 2,500 charge cycles
-
Up to 5+ days autonomy
Passenger Safety Features:
-
ADA-compliant passenger activation button
-
Audible and visual activation confirmation
-
Secondary driver notification lighting system
-
Enhanced nighttime visibility and security
Construction:
-
Concrete surface mounting with anchor bolts
-
Vandal-resistant design
-
IP66 weather protection
-
Operating temperature: -25°C to 65°C
Shelter Options:
-
Modular sizing configurations
-
Perforated steel or tempered glass wall systems
-
Customizable WPC and steel bench seating
-
Integrated advertising displays
-
Transit information systems
-
Optional Wi-Fi and connectivity features
Available Dimensions:
-
5 ft × 10 ft Shelter
-
5 ft × 17 ft Shelter
-
7 ft × 17 ft Shelter
-
Custom lengths available through modular expansion
The ArcOne Shelter represents the future of transit infrastructure: sustainable, intelligent, and architecturally refined. By combining renewable energy generation, passenger-focused safety systems, and modern urban design principles, SELS Solar provides transit agencies, municipalities, and campuses with a durable and visually compelling solution built for the next generation of public transportation.
